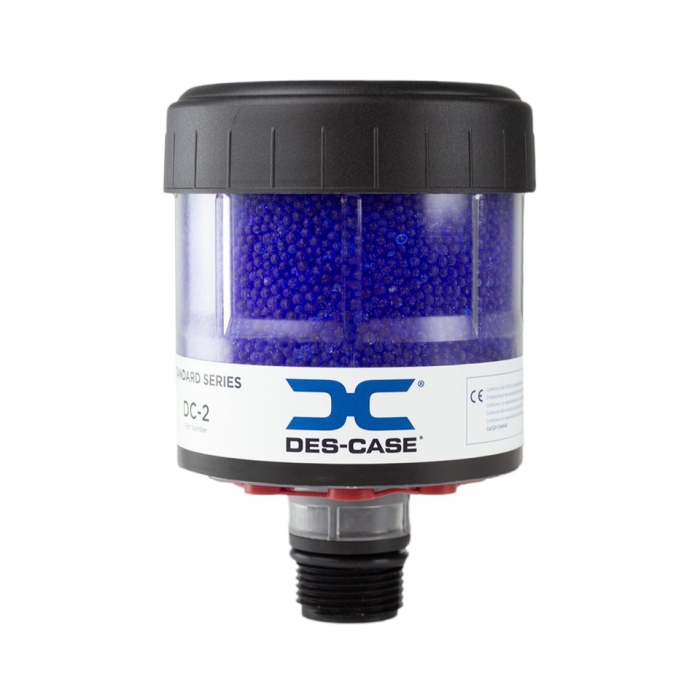

The DC‑2 is a Standard Series breather with larger airflow capacity and desiccant volume than DC‑1. It uses 3 µm absolute filtration and silica‑gel moisture adsorption to protect oils in moderate‑volume systems.
| Air Flow Rate | : | 16 cfm @ 1 psid |
| Diameter | : | 4.10 in |
| Filter | : | 3 µm absolute (β₃ ≥ 200) µm |
| Height | : | 6.00 in |
| Material | : | Polycarbonate, nylon stand‑pipe, silica gel, polyester media |
| Operating Temperature | : | −20 to 200 deg F |
| Series | : | Standard |
| Thread Size | : | 1 in Multi‑Fit (NPT/NPSM/BSPT/BSPP) |
| Type | : | Desiccant Breather |
- Standard size for moderate‑duty reservoirs
- 3 µm absolute filter media (β₃ ≥ 200)
- Clear, rugged polycarbonate housing
- 1″ Multi‑Fit male connection (NPT/NPSM/BSPT/BSPP)
- Operating range −20 °F to 200 °F
