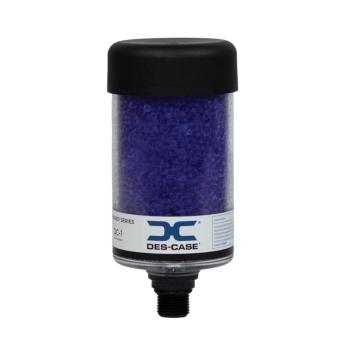

The DC‑1 standard desiccant breather replaces conventional filler/breather caps, providing fine particulate control (3 µm absolute) and silica‑gel moisture adsorption in a compact footprint. Ideal for small gearboxes, hydraulic reservoirs and enclosed systems.
| Air Flow Rate | : | 4 cfm @ 1 psid |
| Diameter | : | 2.52 in |
| Filter | : | 3 µm absolute (β₃ ≥ 200) µm |
| Height | : | 5.36 in |
| Material | : | Polycarbonate, nylon stand‑pipe, silica gel, polyester media |
| Operating Temperature | : | −20 to 200 deg F |
| Series | : | Standard |
| Thread Size | : | 3/8 in Multi‑Fit (NPT/BSPT/BSPP) |
| Type | : | Desiccant Breather |
- Compact miniature design
- 3 µm absolute particulate filtration (β₃ ≥ 200)
- Color‑change silica gel for service indication
- Clear polycarbonate housing
- Multi‑fit 3/8″ male connection (NPT/BSPT/BSPP)
- Operating range −20 °F to 200 °F
