Deltran 901-00-002 DEL901-00-002
Deltran 901-00-002 Heavy Duty Actuator, For Use With Wrap Spring™ PSI-6, PSI-8 and ACCM Series Mechanically Actuated Clutches, 115 VAC Line Power, 60 Hz, 14.5 Ohm Resistance, 2.9 A Load Current, 0.1 A Holding Current, 1/4 in Spade Lug Connections
- Manufacturer: Thomson Industries
- Brand Name: Deltran
- Part Number: DEL901-00-002
- MPN: 901-00-002
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The heavy duty actuator is offered as a simple laminated AC solenoid actuated mechanical device to operate in conjunction with the PSI-6 and PSI-8 clutches. Mounted in the proper proximity to the clutches, it will control single, multiple or partial revolution. It is designed as a no power, no revolution device. Ruggedly constructed from steel and nylon for maximum strength and long life.

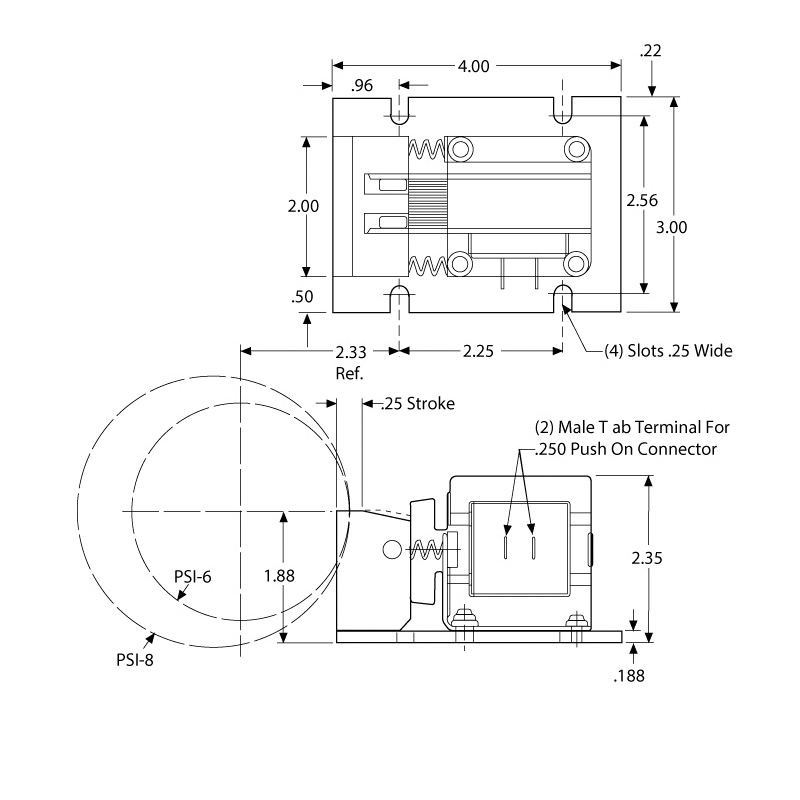

Deltran Actuator, Heavy Duty, For Use With: Wrap Spring™ PSI-6, PSI-8 and ACCM Series Mechanically Actuated Clutches, 115 VAC Line Power, 60 Hz, 14.5 Ohm Resistance, 2.9 A Load Current, 0.1 A Holding Current, 1/4 in Spade Lug Connections, 4 in L x 2.35 in W x 3 in H
| Dimensions | : | 4 in L x 2.35 in W x 3 in H |
| Specifications | : | 115 VAC Line Power, 60 Hz, 14.5 Ohm Resistance, 2.9 A Load Current, 0.1 A Holding Current, 1/4 in Spade Lug Connections |
| Suitable For Use With | : | Wrap Spring™ PSI-6, PSI-8 and ACCM Series Mechanically Actuated Clutches |
| Type | : | Heavy Duty |
