Deltran 328-17-043 DEL328-17-043

Super CB series combination of clutches and brakes accurately start and stop loads driven by a continuously rotating power source. CB units operate from a single AC or DC pulse, stopping the load within +/- 0.5 deg noncumulative at speeds up to 750 rpm depending on size. Each unit is pre-engineered and pre-assembled for easy installation. Super CB clutches and brakes provide 3 to 5 times longer life. The five sizes of super CB clutch/brake packages offer extraordinary performance and durability for those applications requiring long life under high load, high duty cycle conditions. Thomson® will retrofit standard CB-5, CB-6, CB-7, CB-8 and CB-10 models.

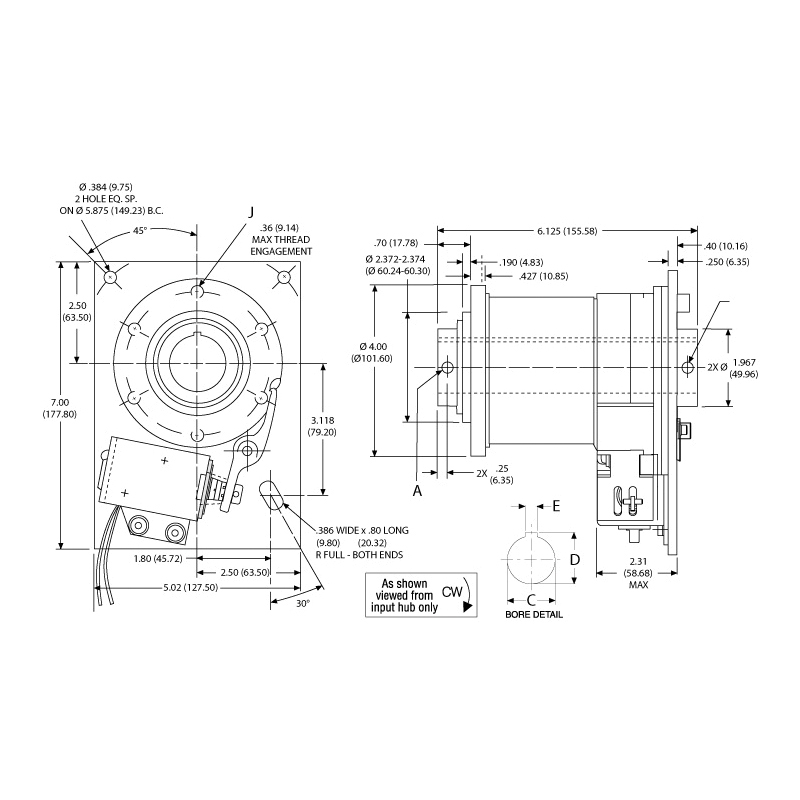

Deltran Wrap Spring™ Clutch and Brake Unit, Solenoid Operated, Series: Super CB, 1-1/4 in Bore, 4 in OD, 5.02 in Overall Length, 2500 in-lb Torque, 115 VAC, 300 rpm Maximum, Horizontal Mounting, 6-1/8 in W x 7 in H Dimensions

• Item Features 01=Adjustable control collars for easy and accurate output stop position setting
• Item Features 02=Load over-travel or back-up is eliminated since Super CB units lock the load in both directions when the solenoid is off
• Item Features 03=Roller bearings never need adjustment for wear
• Item Features 04=Brings load up to speed in 3 m/s and stops within 1.5 m/s
• Item Features 05=Direct retrofit for standard series CB
• Item Features 06=Sintered metal hub offers easy machining for custom drive attachments
• Item Features 07=Hardened thrust washers on input and brake end
• Item Features 08=Anti-overrun feature prevents the output from running faster than the input
• Item Features 09=Clockwise rotation, hub input, indexing type motion clutch and brake unit
• Item Features 10=Size 8 frame
• Item Features 11=Cost-effective design

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Deltron_30010033_Manual.pdf
