Deltran 305-17-007 DEL305-17-007
Deltran Wrap Spring™ 305-17-007 Standard CB Solenoid Operated Clutch and Brake Unit, 115 VAC, 250 in-lb Torque, 750 rpm Max, 1/2 in Dia Bore
- Manufacturer: Thomson Industries
- Brand Name: Deltran
- Part Number: DEL305-17-007
- Alt Part Number: CB5CW115AC.50B1STAO
- MPN: 305-17-007
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
CB series combination clutches and brakes accurately start and stop loads driven by a continuously rotating power source. CB units operate from a single AC or DC pulse, stopping the load within +/- 1/2 deg noncumulative at speeds up to 1800 rpm. Each unit is pre-engineered and pre-assembled for easy installation.

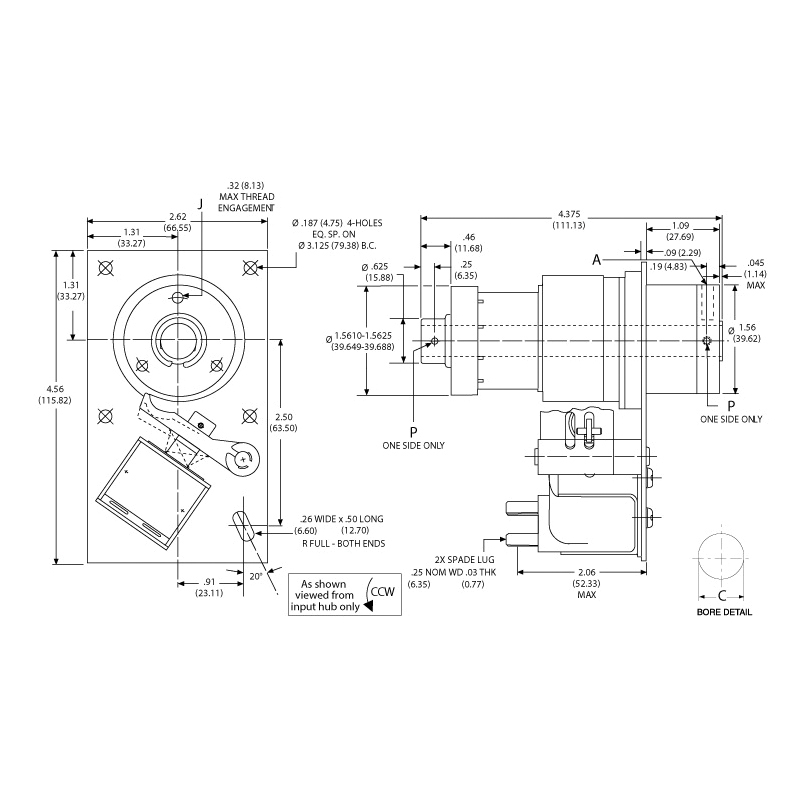

Deltran Wrap Spring™ Clutch and Brake Unit, Solenoid Operated, Series: Standard CB, 1/2 in Bore, 1.561 to 1.5625 in OD, 2.62 in Overall Length, 250 in-lb Torque, 115 VAC, 750 rpm Maximum, Horizontal Mounting, 4.375 in W x 4.56 in H Dimensions
| Bore Diameter | : | 1/2 in |
| Dimensions | : | 4.375 in W x 4.56 in H |
| Maximum Speed | : | 750 rpm |
| Mounting Type | : | Horizontal |
| Outside Diameter | : | 1.561 to 1.5625 in |
| Overall Length | : | 2.62 in |
| Series | : | Standard CB |
| Torque Rating | : | 250 in-lb |
| Type | : | Solenoid Operated |
| Voltage Rating | : | 115 VAC |
- Adjustable control collars for easy and accurate output stop position setting
- Load over-travel or back-up is eliminated since Super CB units lock the load in both directions when the solenoid is off
- Permanently lubricated and never needs adjustment for wear
- Brings load up to speed in 3 m/s and stops within 1.5 m/s
- Anti-overrun feature prevents the output from running faster than the input
- Clockwise rotation, hub input, indexing type motion clutch and brake unit
- Size 5 frame
- Cost-effective design
