CR Seals® 400855 SKF400855
  1. pin-int

CR Seals® 400855 SKF400855

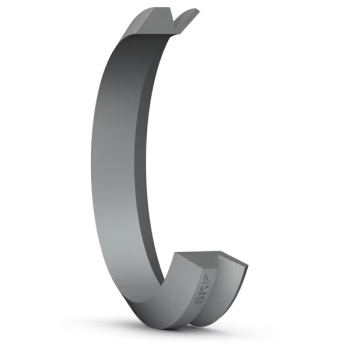

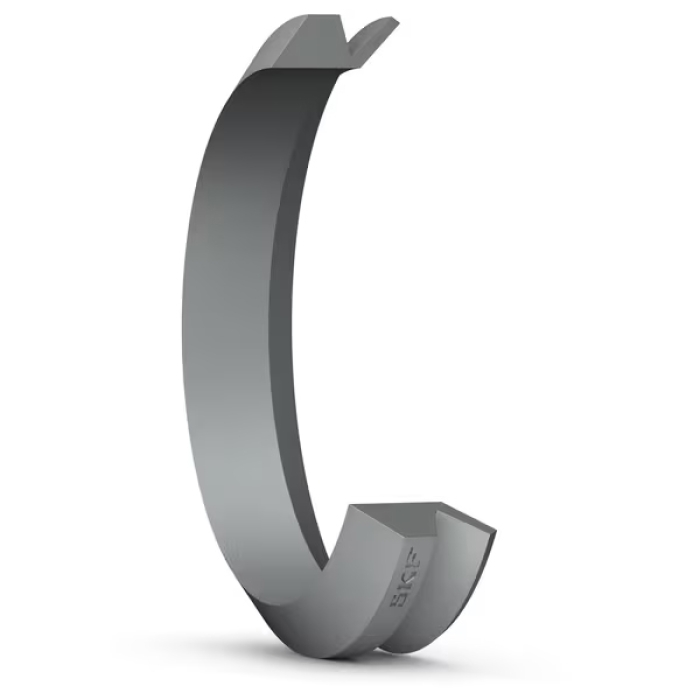

CR Seals® 400855 Type VR2 V-Ring Seal, 2.9921 in ID x 4.085 in OD x 0.53 in W, 3.2677 to 3.4646 in Dia Shaft, FKM

  • Manufacturer: SKF
  • Brand Name: CR Seals®
  • Part Number: SKF400855
  • MPN: 400855
  • UPC: 085311044806
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

V-ring seals (or V-rings) are unique all-rubber seals for rotating shafts and are used in an extremely wide range of applications. The V-ring can be used alone to protect a wide assortment of bearing types from contaminants. They are also often used as secondary seals to protect primary seals in highly contaminated environments.

CR Seals® V-Ring Seal, Type VR2, 2.9921 in ID, 4.085 in OD, 0.53 in Width, 3.2677 to 3.4646 in Shaft Diameter, 1600 fpm Speed, 5 deg at 3000 fpm/1 to 4 deg at 2400 fpm Misalignment, -40 to 400 deg F, 10 psi Pressure, FKM

Inside Diameter      :      2.9921 in
Material      :      FKM
Misalignment      :      5 deg at 3000 fpm/1 to 4 deg at 2400 fpm
Outside Diameter      :      4.085 in
Pressure Rating      :      10 psi
Shaft Diameter Range      :      3.2677 to 3.4646 in
Speed      :      1600 fpm
Temperature Rating      :      -40 to 400 deg F
Type      :      Type VR2
Width      :      0.53 in
  • V-ring consists of a seal body, flexible and conical-shaped sealing lip and an integral, resilient hinge
  • It is stretched and installed directly on the shaft, where it is held in place by the inherent tension of the seal body
  • It rotates with the shaft and seals axially against a stationary counter face
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_400855_Specification_Sheet.pdf
