CR Seals® 400600 SKF400600
  1. pin-int

CR Seals® 400600 SKF400600

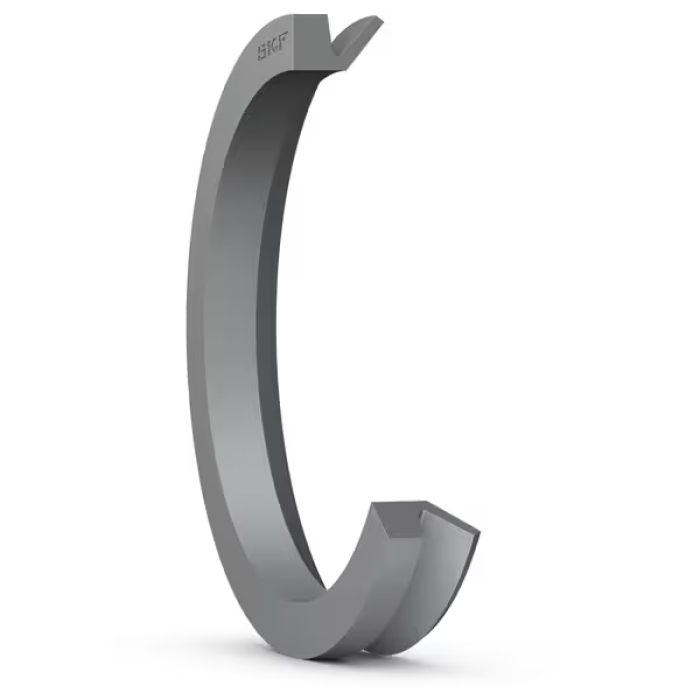

CR Seals® 400600 Type VR1 V-Ring Seal, 2.216 in ID x 2.965 in OD x 0.28 in W, 2.2835 to 2.4803 in Dia Shaft, NBR

  • Manufacturer: SKF
  • Brand Name: CR Seals®
  • Part Number: SKF400600
  • MPN: 400600
  • UPC: 085311044578
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

V-ring seals (or V-rings) are unique all-rubber seals for rotating shafts and are used in an extremely wide range of applications. The V-ring can be used alone to protect a wide assortment of bearing types from contaminants. They are also often used as secondary seals to protect primary seals in highly contaminated environments.

CR Seals® V-Ring Seal, Type VR1, 2.216 in ID, 2.965 in OD, 0.28 in Width, 2.2835 to 2.4803 in Shaft Diameter, 1600 fpm Speed, 5 deg at 3000 fpm/1 to 4 deg at 2400 fpm Misalignment, -40 to 225 deg F, 10 psi Pressure, NBR

Inside Diameter      :      2.216 in
Material      :      NBR
Misalignment      :      5 deg at 3000 fpm/1 to 4 deg at 2400 fpm
Outside Diameter      :      2.965 in
Pressure Rating      :      10 psi
Shaft Diameter Range      :      2.2835 to 2.4803 in
Speed      :      1600 fpm
Temperature Rating      :      -40 to 225 deg F
Type      :      Type VR1
Width      :      0.28 in
  • V-ring consists of a seal body, flexible and conical-shaped sealing lip and an integral, resilient hinge
  • It is stretched and installed directly on the shaft, where it is held in place by the inherent tension of the seal body
  • It rotates with the shaft and seals axially against a stationary counter face
