CR Seals® 12220 SKF12220
  1. pin-int

CR Seals® 12220 SKF12220

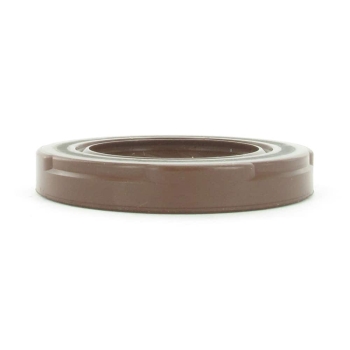

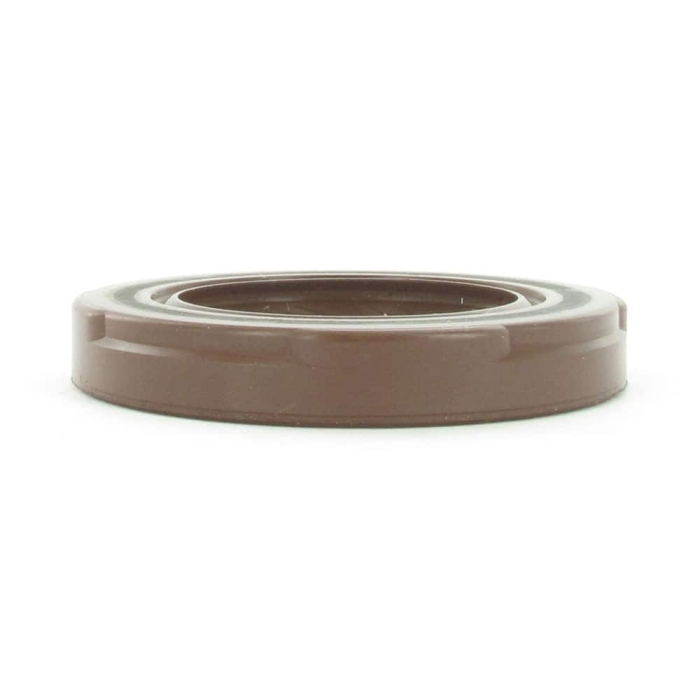

CR Seals® 12220 Double Lip Oil Seal, 1.220 x 1.969 x 0.315 in

  • Manufacturer: SKF
  • Brand Name: CR Seals®
  • Part Number: SKF12220
  • MPN: 12220
  • UPC: 85311287258
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

CR Seals® (SKF) double lip oil seal (rotary/radial shaft seal) with HMSA7 design for oil or grease applications.Specs: Shaft diameter: 1.220 in; Outside diameter: 1.969 in; Overall width: 0.315 in; Design type: HMSA7; Lip material: Fluoro rubber (FKM); Lip type: Helix-CW from air side; Number of lips: 2; Casing: rubber-covered steel; Pressure tolerance: 7 psi; Operating temperature range: -5 to 390 °F; Spring type: garter spring (carbon steel); Compatible wear sleeve: 99123; Compatible V-rings: 400320,400321,400324,400325; UPC: 085311287258; Weight: 0.05 lb; Sold as: 1/EA.

Inside Diameter      :      1.22 in
Outside Diameter      :      1.969 in
Width      :      0.315 in
  • Double lip oil seal (rotary/radial shaft seal), HMSA7 design
  • 1.220 in shaft dia x 1.969 in OD x 0.315 in overall width
  • Fluoro rubber (FKM) lip material; helix-CW lip type
  • Rubber-covered steel casing; garter spring (carbon steel)
  • Operating temperature range: -5 to 390 °F; pressure tolerance: 7 psi
  • Compatible wear sleeve: 99123; compatible V-rings: 400320, 400321, 400324, 400325
  • UPC: 085311287258; weight: 0.05 lb
