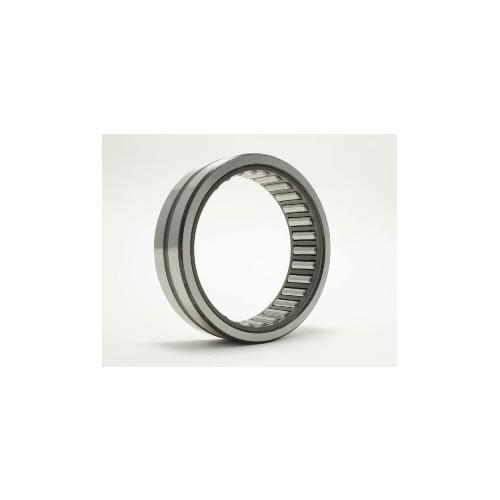

CONS NK-28/20 CONNK28/20
CONS NK-28/20 NK Outer Ring Roller Bearing, 28 mm Dia Bore, 37 mm Dia Outside, 1 Rows, 20 mm W, 22 kN Dynamic, 36.5 kN Static Load
- Manufacturer: Consolidated Bearings
- Brand Name: CONS
- Part Number: CONNK28/20
- MPN: NK-28/20
- UPC: 644075081306
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
CONS, NK-28/20, Roller Bearing, Outer Ring, Series: NK, 28 mm Bore, 37 mm OD, 1 Rows, 20 mm Width, 22 kN Dynamic, 36.5 kN Static Load, 14000 rpm Reference, 16000 rpm Limiting Maximum
| Bore Diameter | : | 28 mm |
| Load Capacity | : | 22 kN Dynamic, 36.5 kN Static |
| Maximum Speed | : | 14000 rpm Reference, 16000 rpm Limiting |
| Number of Rows | : | 1 |
| Outside Diameter | : | 37 mm |
| Series | : | NK |
| Type | : | Outer Ring |
| Width | : | 20 mm |
- The ability to handle a larger, more rigid shaft in a given application
- Excellent rolling characteristics within a small cross section
- Most sizes have a lubrication groove and hole in the O.D. of the outer race
