CONS 7200 BG CON7200BG

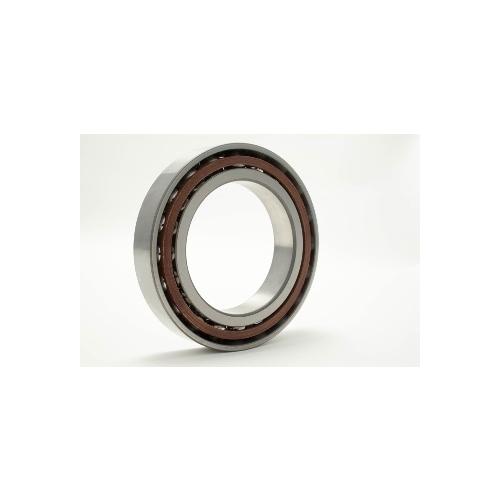

CONS 7200 BG Angular Contact Ball Bearing, 10 mm Dia Bore, 30 mm Dia Outside, 1 Rows, 9 mm W, 40 deg
- Manufacturer: Consolidated Bearings
- Brand Name: CONS
- Part Number: CON7200BG
- MPN: 7200 BG
- UPC: 644075150989
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
CONS, 7200 BG, Ball Bearing, Angular Contact, 10 mm Bore, 30 mm OD, 1 Rows, 9 mm Width, 40 deg Contact Angle, Open Closure, Steel Cage
| Bore Diameter | : | 10 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Contact Angle | : | 40 deg |
| Number of Rows | : | 1 |
| Outside Diameter | : | 30 mm |
| Type | : | Angular Contact |
| Width | : | 9 mm |
- For use in gearboxes, pumps, electric motors, and clutches or other high-speed applications
- Contact angle varies between domestic manufacturers within a manufacturer's range; such as Fafnir - 20 deg up to and including 17mm bore, MRC - 30 deg, New Departure - 35 deg for the entire range
- Sizes 7200 BG thru 7218 BG may be equipped with steel retainers or with cages made from glass fiber reinforced polyamide 66 material
- Suffix G indicates that the bearings are universally flush ground suitable for Back-to-Back, Face-to-Face, or Tandem mounting
- Suffix M indicates machined bronze cage
