Climax RC-075 CLIRC075

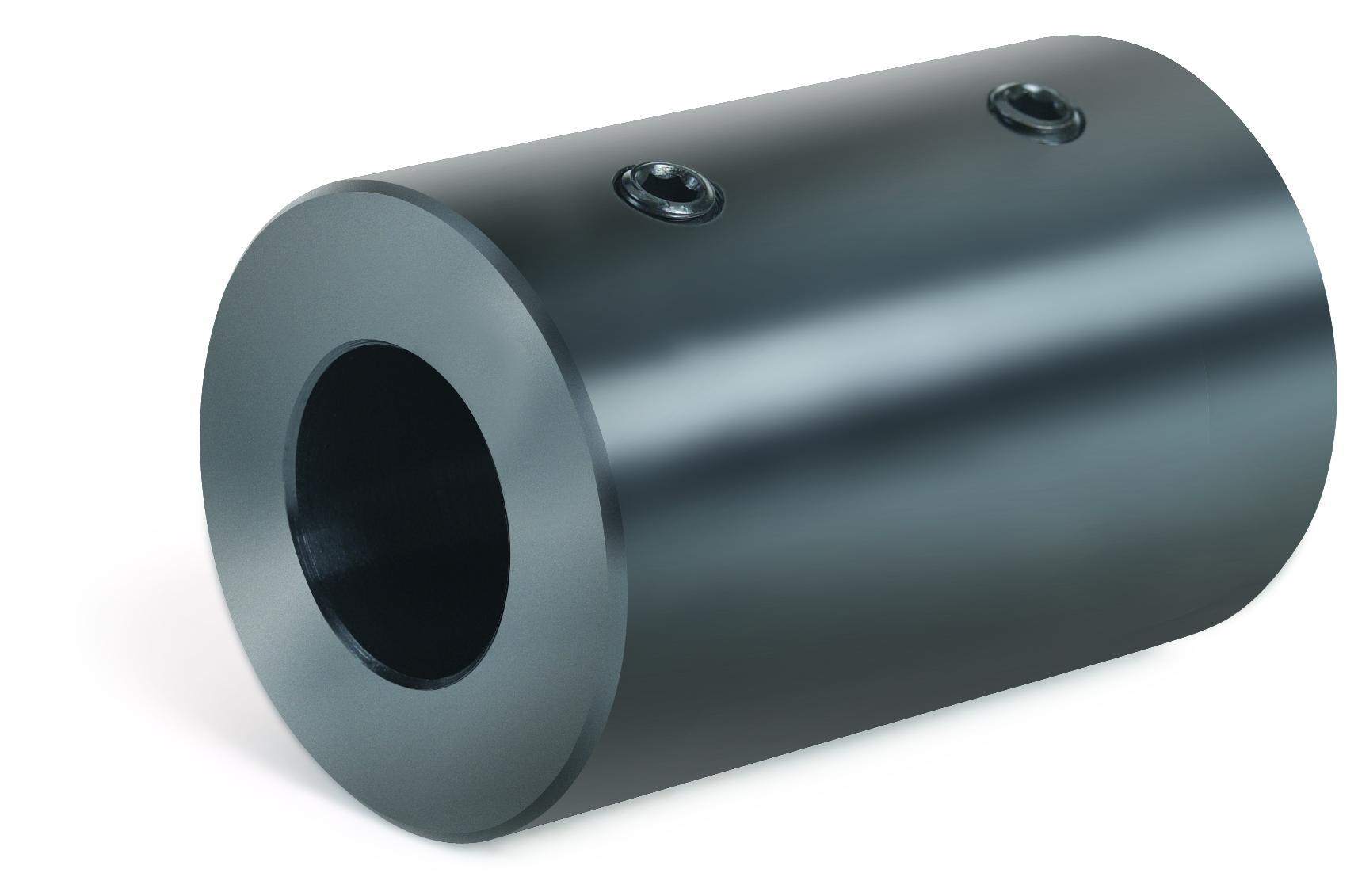

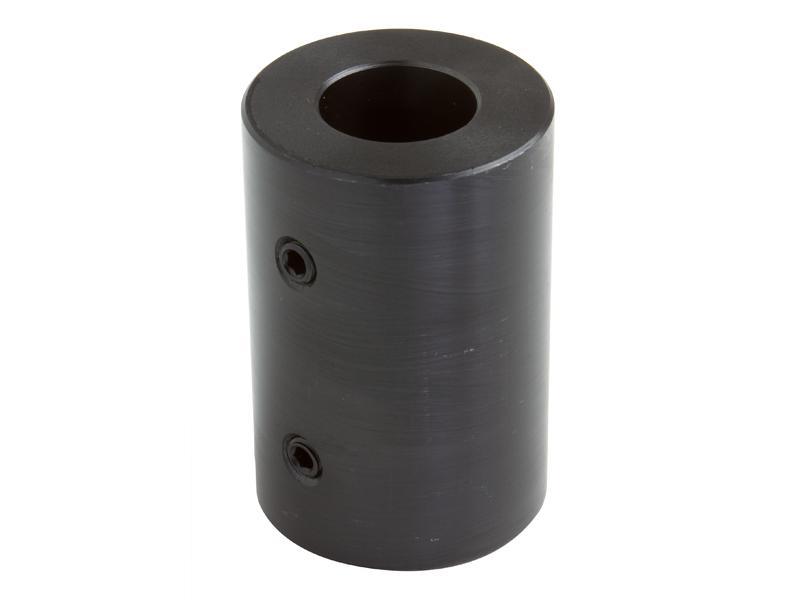

Climax RC-075 Setscrew Rigid Coupling, 3/4 in Dia Bore, 1-1/2 in OD, 2 in OAL, 170 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLIRC075
  • MPN: RC-075
  • UPC: 044861358641
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Black Oxide Plated Steel Set Screw Coupling. Traditional cost effective rigid coupling design. Provides torque transmission & alignment.

Climax Setscrew Rigid Coupling, Series: RC Series, 3/4 in Bore, 1-1/2 in OD, 2 in Overall Length, 170 in-lb Torque, 5/16-18 UN-3A x 3/8 in Screw, Steel, Black Oxide

Bore Diameter      :      3/4 in
Finish      :      Black Oxide
Material      :      Steel
Outside Diameter      :      1-1/2 in
Overall Length      :      2 in
Screw Size      :      5/16-18 UN-3A x 3/8 in
Series      :      RC Series
Torque Rating      :      170 in-lb
  • Traditional cost effective rigid coupling design
  • Provides torque transmission and alignment
  • Cup point setscrews impinge the shaft providing holding power
  • Requires disassembly of shaft components upon replacement
  • Steel hex socket setscrew
  • Without keyway
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Technical_Bulletin.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_RC_075_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_RC_075_Specification_Sheet.pdf
