Climax MISCC-10-10-S CLIMISCC-10-10-S

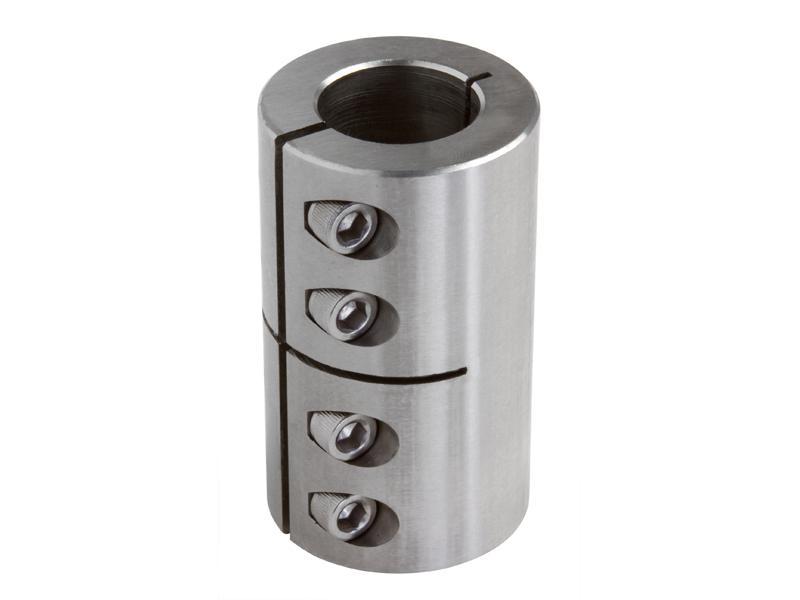

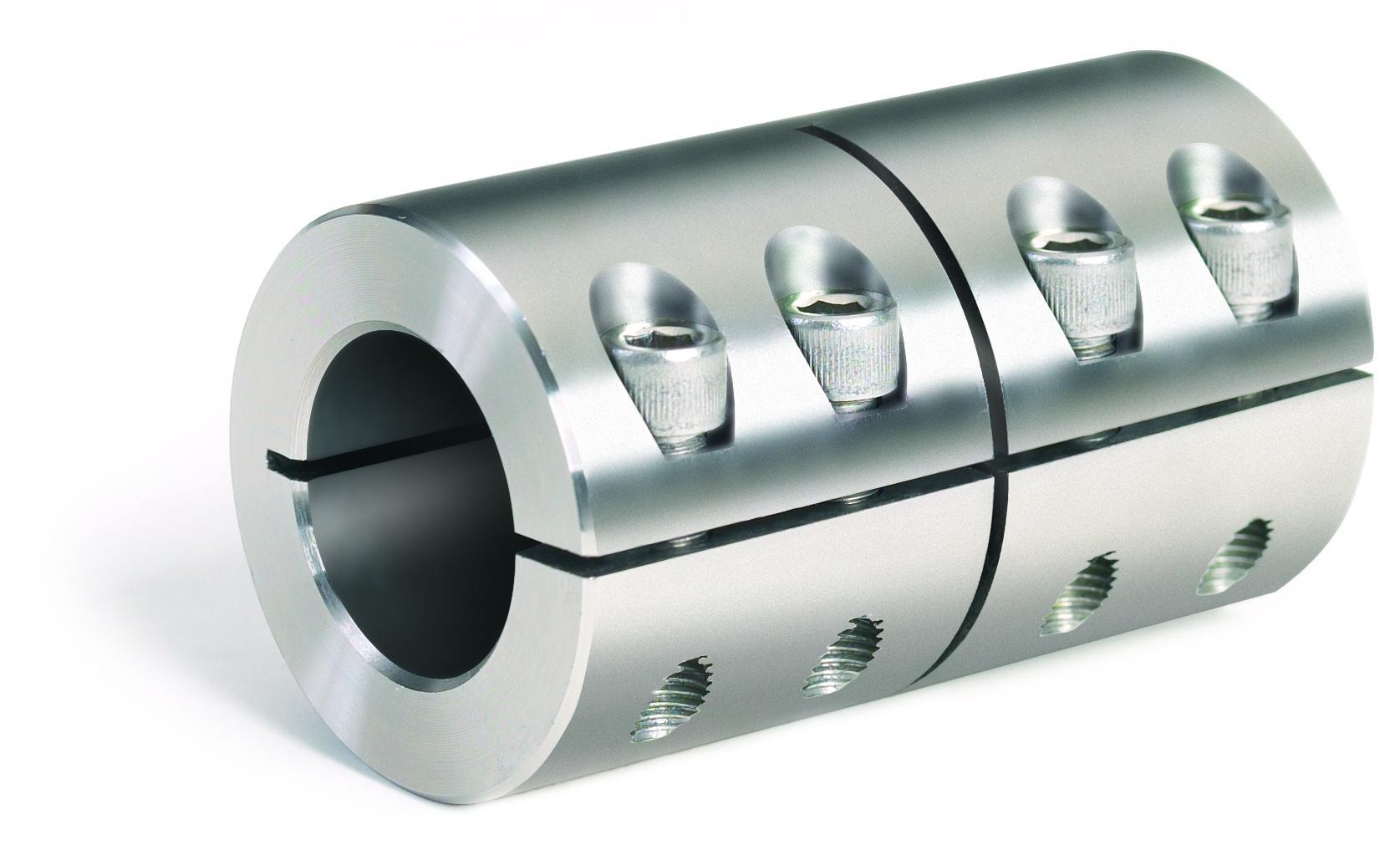

Climax MISCC-10-10-S 1-Piece Industry Standard Clamping Coupling, 10 mm Dia Bore, 29 mm OD, 45 mm OAL, 41 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLIMISCC-10-10-S
  • MPN: MISCC-10-10-S
  • UPC: 044861062258
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Stainless Steel Metric One-Piece Industry Standard Clamping Coupling. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 1-Piece Industry Standard, Series: MISCC, 10 mm Bore, 29 mm OD, 45 mm Overall Length, 41 in-lb Torque, Stainless Steel, Plain

Bore Diameter      :      10 mm
Finish      :      Plain
Material      :      Stainless Steel
Outside Diameter      :      29 mm
Overall Length      :      45 mm
Series      :      MISCC
Torque Rating      :      41 in-lb
Type      :      1-Piece Industry Standard
  • One-piece design will not mar the shaft
  • Metric one-piece clamping couplings designed to handle applications that require a greater torque capacity than set screw couplings without marring the shaft
