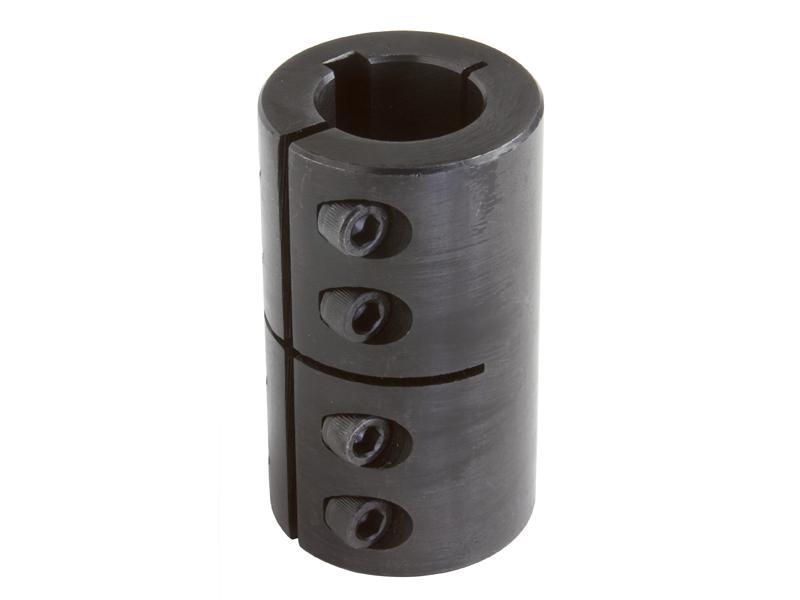

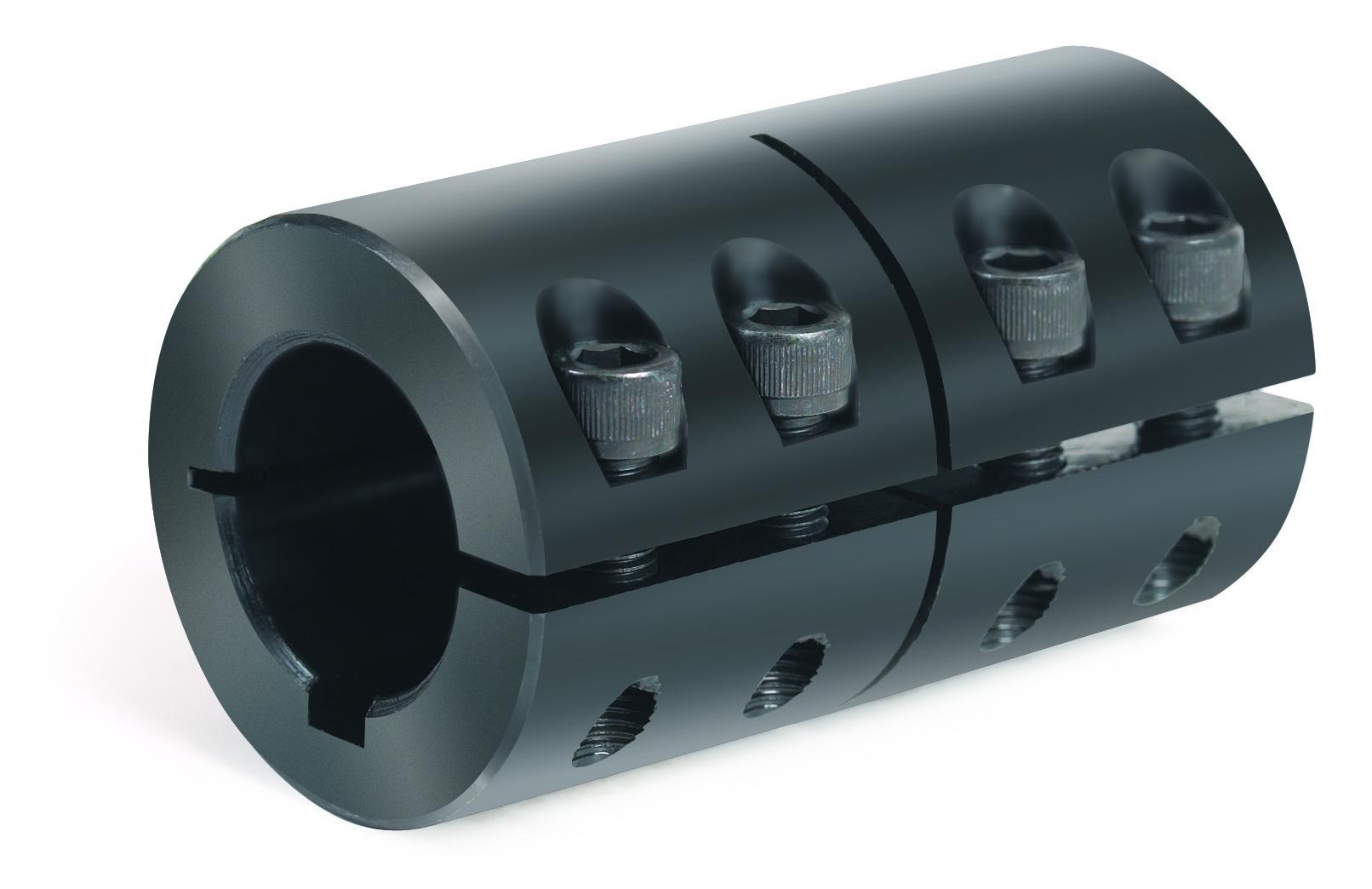

Climax ISCC-112-112-KW CLIISCC-112-112KW
Climax ISCC-112-112-KW 1-Piece Industry Standard Clamping Coupling With 1/4 x 1/8 in Keyway, 1-1/8 in Dia Bore, 1-7/8 in OD, 3-1/8 in OAL, 175 in-lb Torque
- Manufacturer: Climax Metal Products
- Brand Name: Climax
- Part Number: CLIISCC-112-112KW
- MPN: ISCC-112-112-KW
- UPC: 044861044452
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Black Oxide Steel One-Piece Industry Standard Clamping Coupling with Keyway. High axial load & torque capacity. Does not mar the shaft.
Climax Clamping Coupling, 1-Piece Industry Standard, Series: ISCC, 1-1/8 in Bore, 1-7/8 in OD, 3-1/8 in Overall Length, 175 in-lb Torque, Steel, Black Oxide
| Bore Diameter | : | 1-1/8 in |
| Finish | : | Black Oxide |
| Material | : | Steel |
| Outside Diameter | : | 1-7/8 in |
| Overall Length | : | 3-1/8 in |
| Series | : | ISCC |
| Torque Rating | : | 175 in-lb |
| Type | : | 1-Piece Industry Standard |
- One-piece design will not mar the shaft
- For use on keyed shafts
- One-piece clamping couplings with keyways are designed to handle applications that require a greater torque capacity than set screw couplings without marring the shaft
