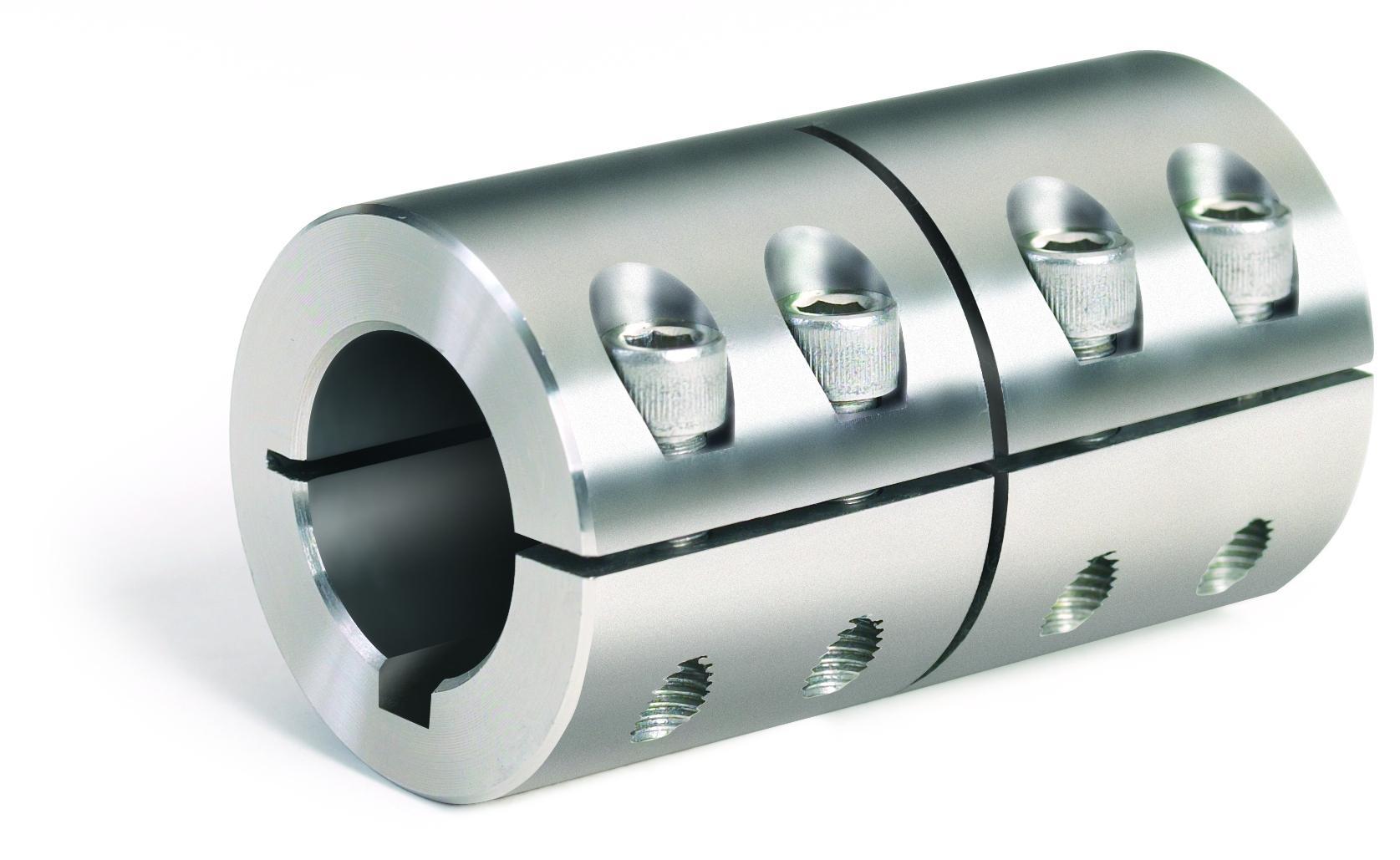

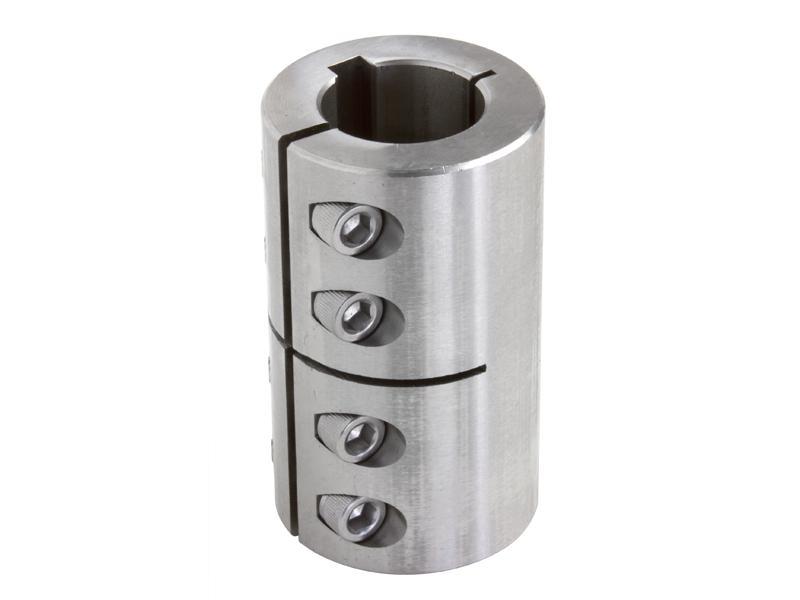

Climax ISCC-075-075SKW CLIISCC-075-075SKW
Climax ISCC-075-075SKW 1-Piece Industry Standard Clamping Coupling With 3/16 x 3/32 in Keyway, 3/4 in Dia Bore, 1-1/2 in OD, 2-1/4 in OAL, 115 in-lb Torque
- Manufacturer: Climax Metal Products
- Brand Name: Climax
- Part Number: CLIISCC-075-075SKW
- MPN: ISCC-075-075SKW
- UPC: 044861431108
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Stainless Steel One-Piece Industry Standard Clamping Coupling with Keyway. High axial load & torque capacity. Does not mar the shaft.
Climax Clamping Coupling, 1-Piece Industry Standard, Series: ISCC, 3/4 in Bore, 1-1/2 in OD, 2-1/4 in Overall Length, 115 in-lb Torque, Stainless Steel, Plain
| Bore Diameter | : | 3/4 in |
| Finish | : | Plain |
| Material | : | Stainless Steel |
| Outside Diameter | : | 1-1/2 in |
| Overall Length | : | 2-1/4 in |
| Series | : | ISCC |
| Torque Rating | : | 115 in-lb |
| Type | : | 1-Piece Industry Standard |
- One-piece design will not mar the shaft
- For use on keyed shafts
- One-piece clamping couplings with keyways are designed to handle applications that require a greater torque capacity than set screw couplings without marring the shaft
