Climax ISCC-075-075-S CLIISCC-075-075-S

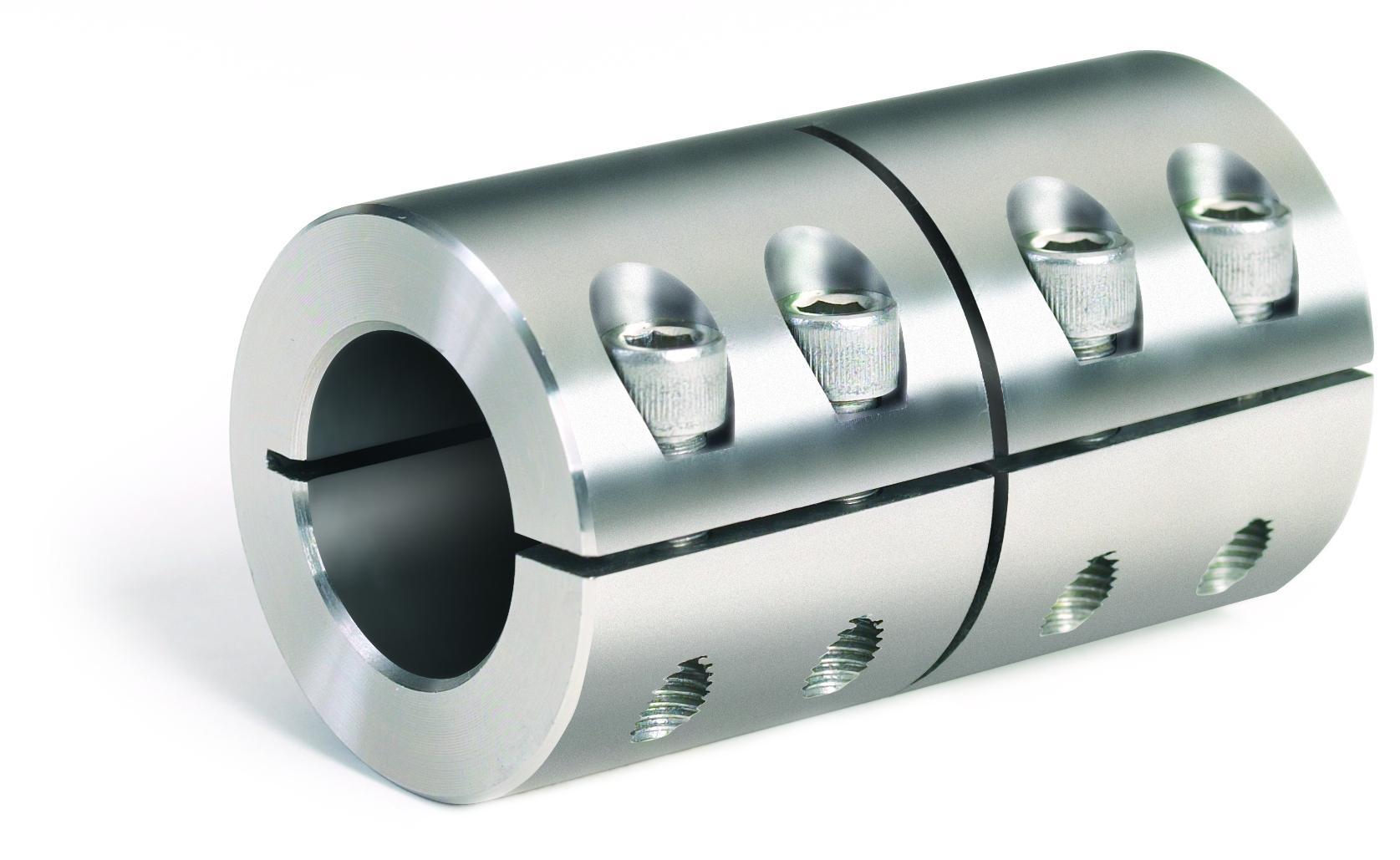

Climax ISCC-075-075-S 1-Piece Industry Standard Clamping Coupling, 3/4 in Dia Bore, 1-1/2 in OD, 2-1/4 in OAL, 115 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLIISCC-075-075-S
  • MPN: ISCC-075-075-S
  • UPC: 044861432754
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Stainless Steel One-Piece Industry Standard Clamping Coupling. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 1-Piece Industry Standard, Series: ISCC, 3/4 in Bore, 1-1/2 in OD, 2-1/4 in Overall Length, 115 in-lb Torque, Stainless Steel, Plain

Bore Diameter      :      3/4 in
Finish      :      Plain
Material      :      Stainless Steel
Outside Diameter      :      1-1/2 in
Overall Length      :      2-1/4 in
Series      :      ISCC
Torque Rating      :      115 in-lb
Type      :      1-Piece Industry Standard
  • Socket head cap screws provide holding power
  • Additional holding power over setscrew
  • Requires disassembly of shaft components upon replacement
  • Without keyway and recessed screw
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Technical_Bulletin.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_ISCC_075_075_S_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_ISCC_075_075_S_Specification_Sheet.pdf
