Climax ISCC-075-075 CLIISCC-075-075

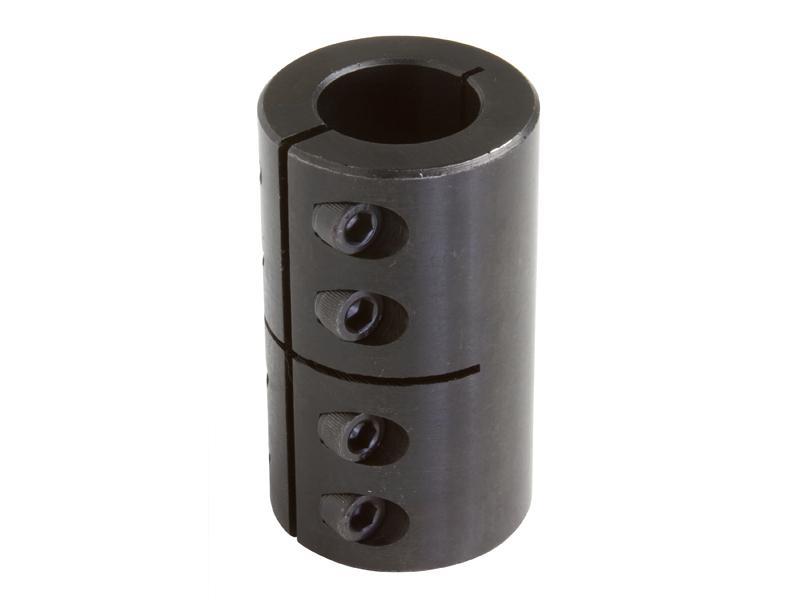

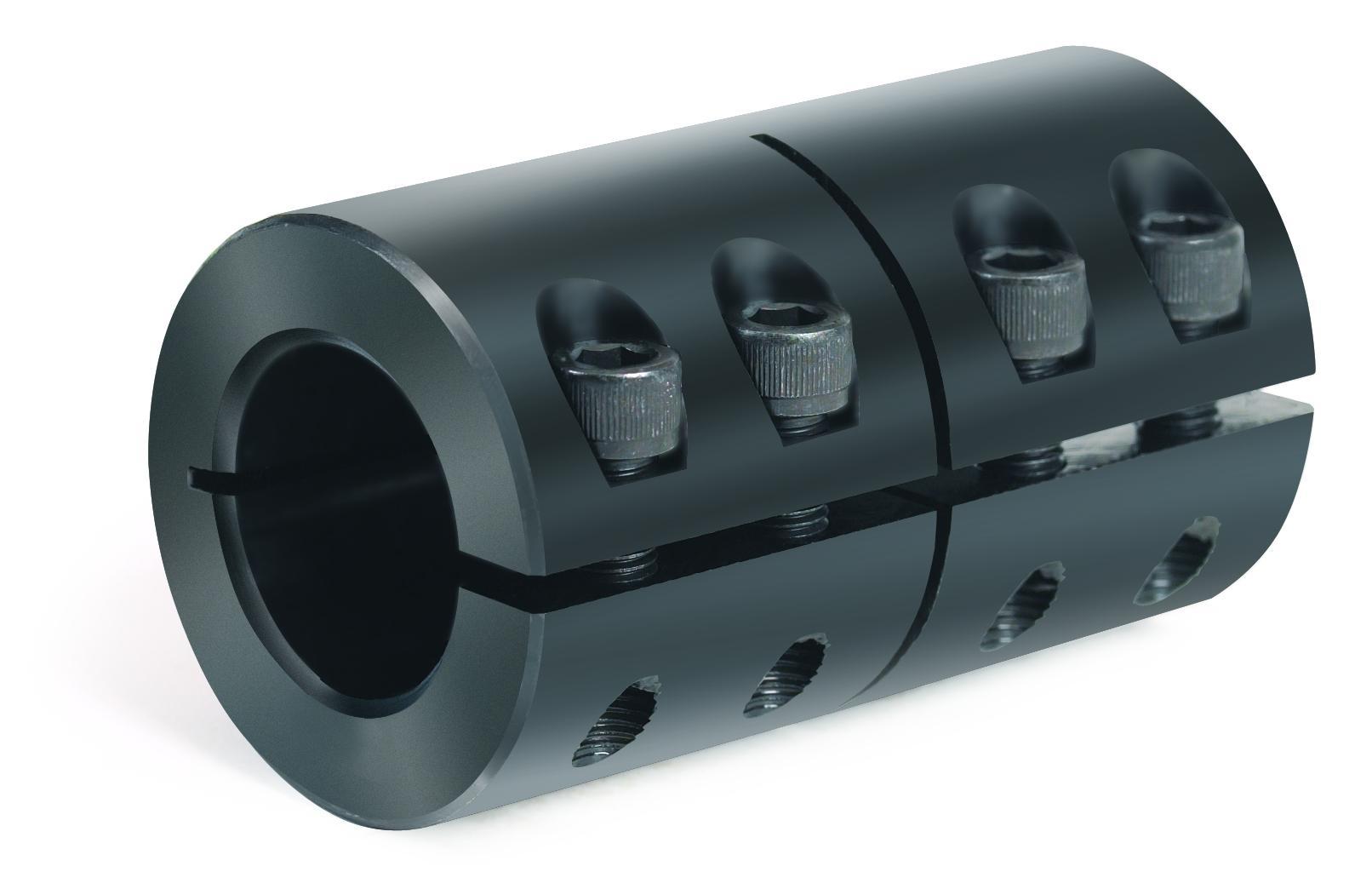

Climax ISCC-075-075 1-Piece Industry Standard Clamping Coupling, 3/4 in Dia Bore, 1-1/2 in OD, 2-1/4 in OAL, 175 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLIISCC-075-075
  • MPN: ISCC-075-075
  • UPC: 044861415016
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Black Oxide Steel One-Piece Industry Standard Clamping Coupling. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 1-Piece Industry Standard, Series: ISCC, 3/4 in Bore, 1-1/2 in OD, 2-1/4 in Overall Length, 175 in-lb Torque, Steel, Black Oxide

Bore Diameter      :      3/4 in
Finish      :      Black Oxide
Material      :      Steel
Outside Diameter      :      1-1/2 in
Overall Length      :      2-1/4 in
Series      :      ISCC
Torque Rating      :      175 in-lb
Type      :      1-Piece Industry Standard
  • One-piece design will not mar the shaft
  • One-piece clamping couplings are designed to handle applications that require a greater torque capacity than set screw couplings without marring the shaft
