Climax GMC-40-B CLIMSC-40

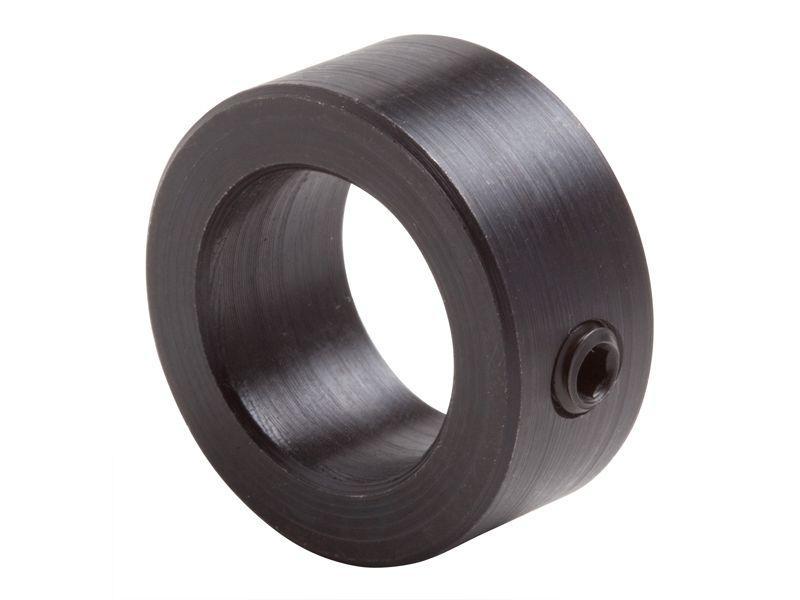

Climax GMC-40-B Setscrew Collar, 1-Piece Solid Construction, 40 mm ID x 63 mm OD x 18 mm W, Steel

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLIMSC-40
  • MPN: GMC-40-B
  • UPC: 044861054628
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Black Oxide Plated Steel Metric Set Screw Collar. Traditional cost effective collar design.

Climax Setscrew Collar, Series: GMC, 1-Piece Solid Construction, 40 mm ID, 63 mm OD, 18 mm Width, Hex Socket Set Screw Style, M10x10 Screw, Steel, Black Oxide

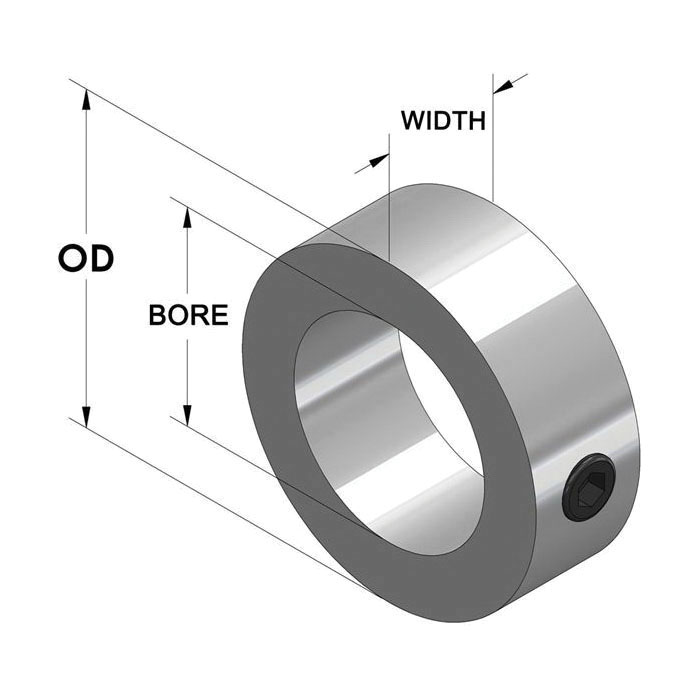

Construction      :      1-Piece Solid
Finish      :      Black Oxide
Inside Diameter      :      40 mm
Material      :      Steel
Outside Diameter      :      63 mm
Screw Size      :      M10x10
Screw Style      :      Hex Socket Set
Series      :      GMC
Width      :      18 mm
  • Single cup point setscrew impinges the shaft
  • Requires disassembly of shaft components upon replacement
  • Traditional cost effective collar design
  • Economical design
  • Single cup point set screw impinges the shaft
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_GMC_40_B_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_GMC_40_B_Specification_Sheet.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_GSC_081_DT_Technical_Bulletin.pdf
