Climax GM2C-60-B CLIM2C-60
  1. pin-int

Climax GM2C-60-B CLIM2C-60

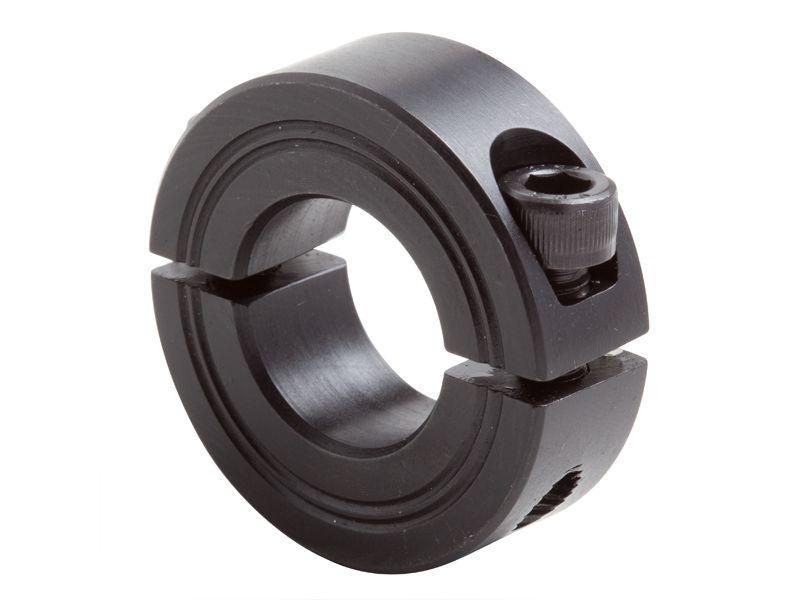

Climax GM2C-60-B Clamping Collar, 2-Piece Split Construction, 60 mm ID x 88 mm OD x 19 mm W, Steel

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLIM2C-60
  • MPN: GM2C-60-B
  • UPC: 044861054192
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Black Oxide Plated Steel Metric Two-Piece Clamping Collar. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard & soft shafts.

Climax Clamping Collar, Series: GM2C, 2-Piece Split Construction, 60 mm ID, 88 mm OD, 19 mm Width, Hex Socket Cap Screw Style, M8x25 Screw, Steel, Black Oxide

Construction      :      2-Piece Split
Finish      :      Black Oxide
Inside Diameter      :      60 mm
Material      :      Steel
Outside Diameter      :      88 mm
Screw Size      :      M8x25
Screw Style      :      Hex Socket Cap
Series      :      GM2C
Width      :      19 mm
  • Easily installed where major disassembly would otherwise be required
  • Greater axial holding power than setscrew or 1-piece clamping collars
  • Effective on hard and soft shafts
  • Without recessed screw
  • Design fully engages the shaft without marring
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_GM2C_60_B_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_GM2C_60_B_Specification_Sheet.pdf
