Climax C-025-DT ASCSC1/4
  1. pin-int

Climax C-025-DT ASCSC1/4

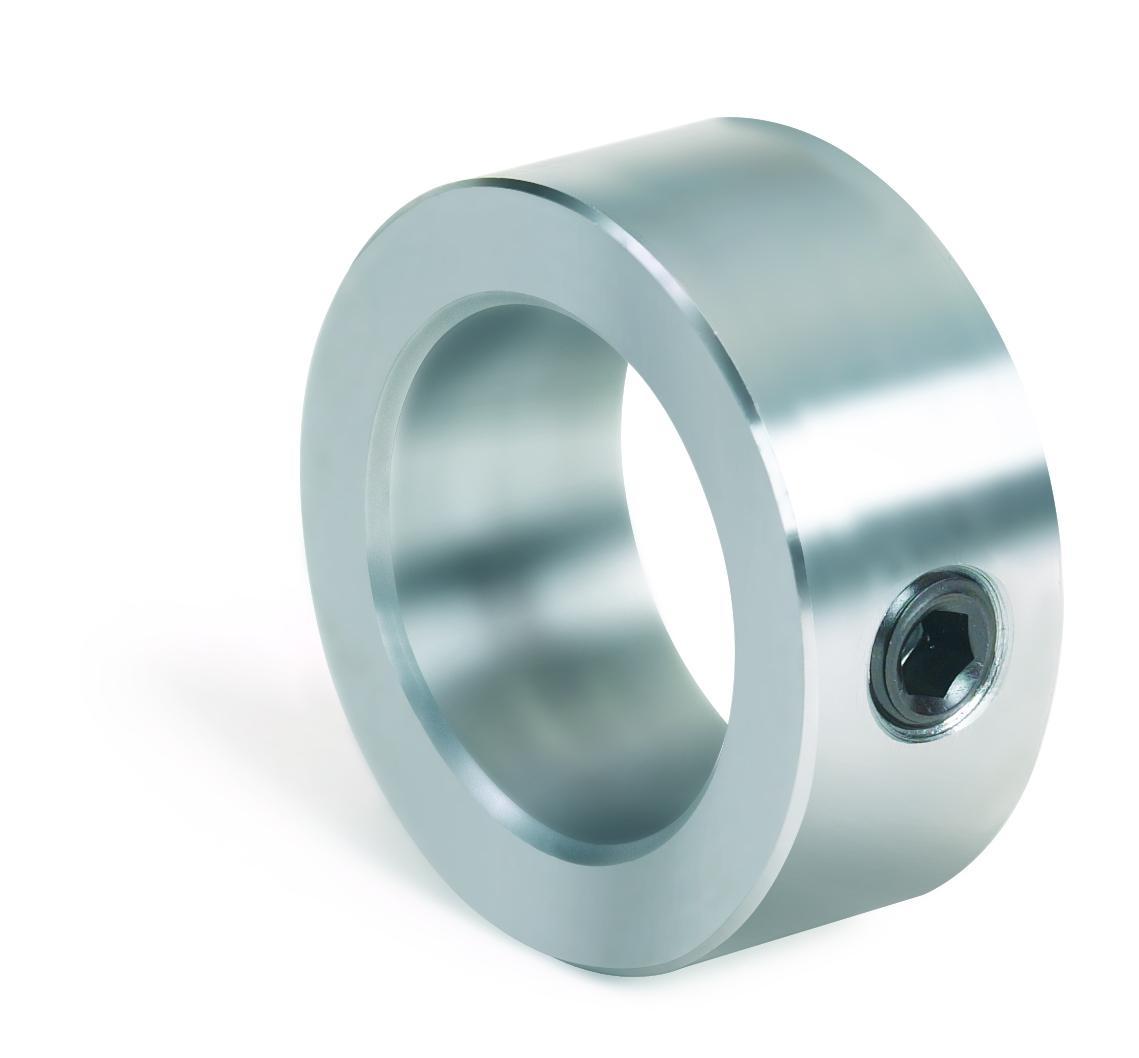

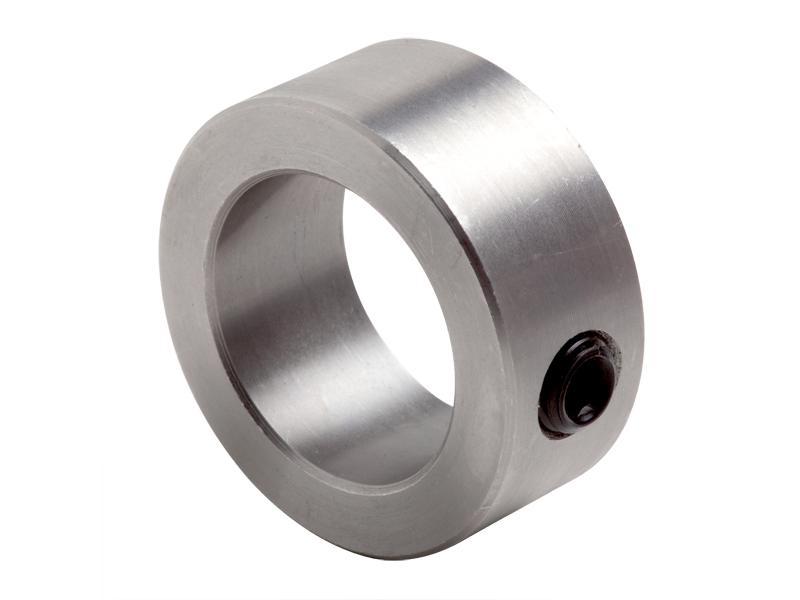

Climax C-025-DT Setscrew Collar, 1-Piece Solid Construction, 1/4 in ID x 1/2 in OD x 5/16 in W, Steel

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: ASCSC1/4
  • MPN: C-025-DT
  • UPC: 044861001202
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Unplated Steel Set Screw Collar. Traditional cost effective collar design.

Climax Setscrew Collar, Series: C Series, 1-Piece Solid Construction, 1/4 in ID, 1/2 in OD, 5/16 in Width, Hex Socket Set Screw Style, 10-32 UN-3A x 1/8 in Screw, Steel, Plain

Construction      :      1-Piece Solid
Finish      :      Plain
Inside Diameter      :      1/4 in
Material      :      Steel
Outside Diameter      :      1/2 in
Screw Size      :      10-32 UN-3A x 1/8 in
Screw Style      :      Hex Socket Set
Series      :      C Series
Width      :      5/16 in
  • Single cup point set screw impinges the shaft
  • Set screw collars are the most cost effective shaft collar design
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C_025_DT_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C_025_DT_Specification_Sheet.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_GSC_081_DT_Technical_Bulletin.pdf
