Climax 2MISCC-50-50 CLI2MISCC-50-50

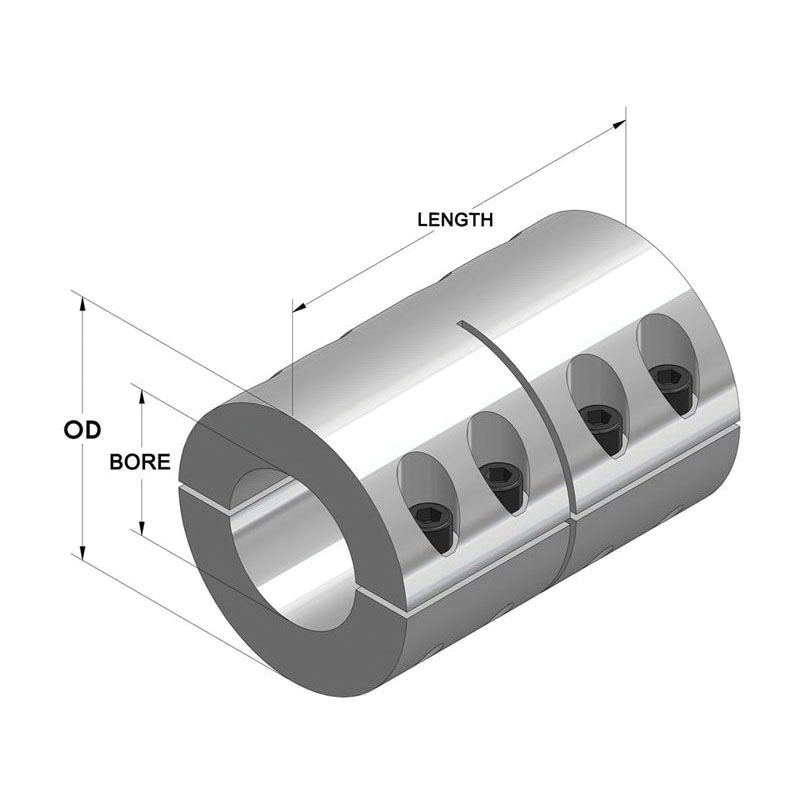

Climax 2MISCC-50-50 2-Piece Industry Standard Clamping Coupling, 50 mm Dia Bore, 85 mm OD, 124 mm OAL, 690 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2MISCC-50-50
  • MPN: 2MISCC-50-50
  • UPC: 044861062050
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Black Oxide Steel Metric Two-Piece Industry Standard Clamping Coupling. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 2-Piece Industry Standard, Series: 2MISCC, 50 mm Bore, 85 mm OD, 124 mm Overall Length, 690 in-lb Torque, Steel, Black Oxide

Bore Diameter      :      50 mm
Finish      :      Black Oxide
Material      :      Steel
Outside Diameter      :      85 mm
Overall Length      :      124 mm
Series      :      2MISCC
Torque Rating      :      690 in-lb
Type      :      2-Piece Industry Standard
  • Socket head cap screws provide holding power
  • Additional holding power over 1-piece
  • Install/replace without major disassembly of other shaft components
  • Without keyway and recessed screw
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2MISCC_50_50_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2MISCC_50_50_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Technical_Bulletin.pdf
