Climax 2MISCC-16-16-S CLI2MISCC-16-16-S

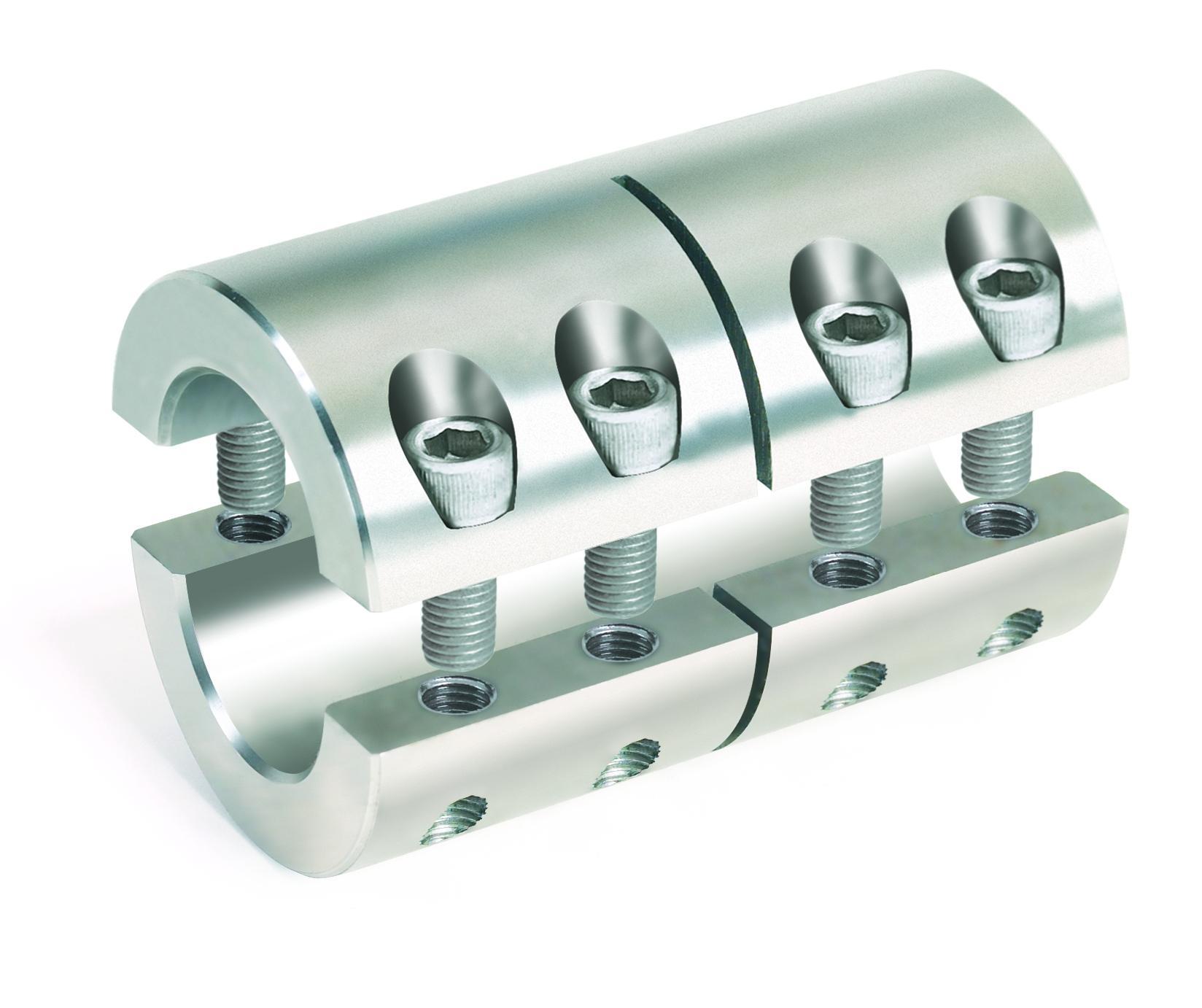

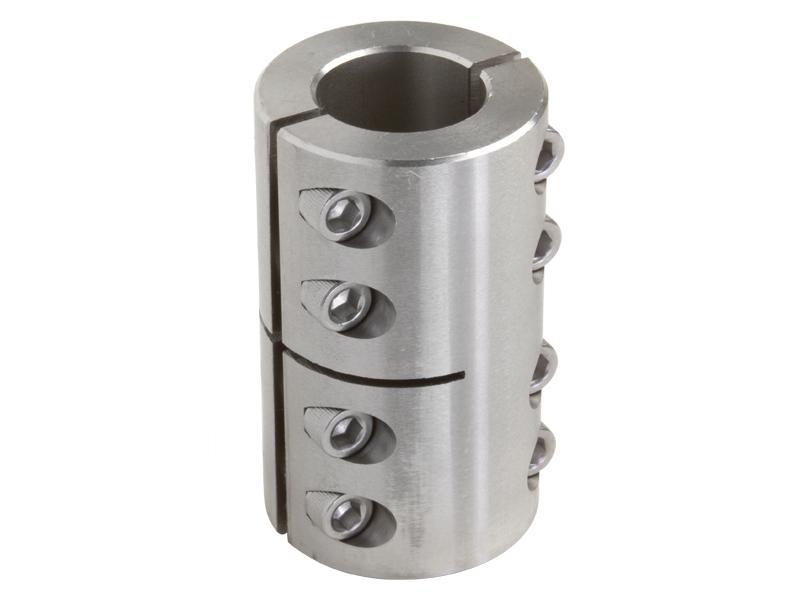

Climax 2MISCC-16-16-S 2-Piece Industry Standard Clamping Coupling, 16 mm Dia Bore, 34 mm OD, 50 mm OAL, 45 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2MISCC-16-16-S
  • MPN: 2MISCC-16-16-S
  • UPC: 044861992111
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Stainless Steel Metric Two-Piece Industry Standard Clamping Coupling. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 2-Piece Industry Standard, Series: 2MISCC, 16 mm Bore, 34 mm OD, 50 mm Overall Length, 45 in-lb Torque, Stainless Steel, Plain

Bore Diameter      :      16 mm
Finish      :      Plain
Material      :      Stainless Steel
Outside Diameter      :      34 mm
Overall Length      :      50 mm
Series      :      2MISCC
Torque Rating      :      45 in-lb
Type      :      2-Piece Industry Standard
  • Two-piece design will not mar the shaft
  • Install/replace without major disassembly of other shaft components
  • Metric two-piece clamping couplings are designed to handle applications that require a greater torque capacity than set screw couplings and one-piece couplings without marring the shaft
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2MISCC_16_16_S_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2MISCC_16_16_S_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Technical_Bulletin.pdf
