Climax 2ISCC-125-100KW CLI2ISCC-125-100KW
  1. pin-int

Climax 2ISCC-125-100KW CLI2ISCC-125-100KW

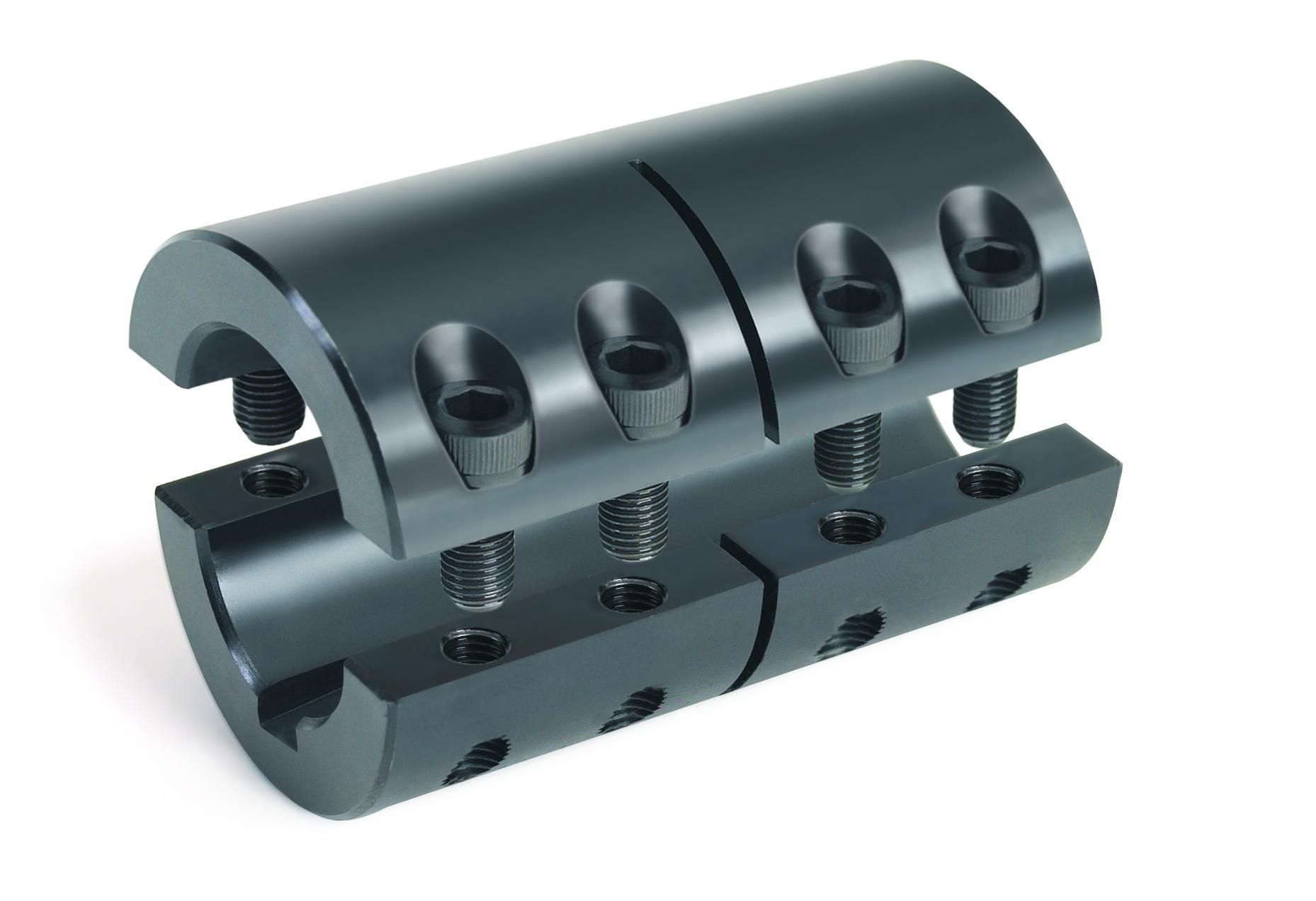

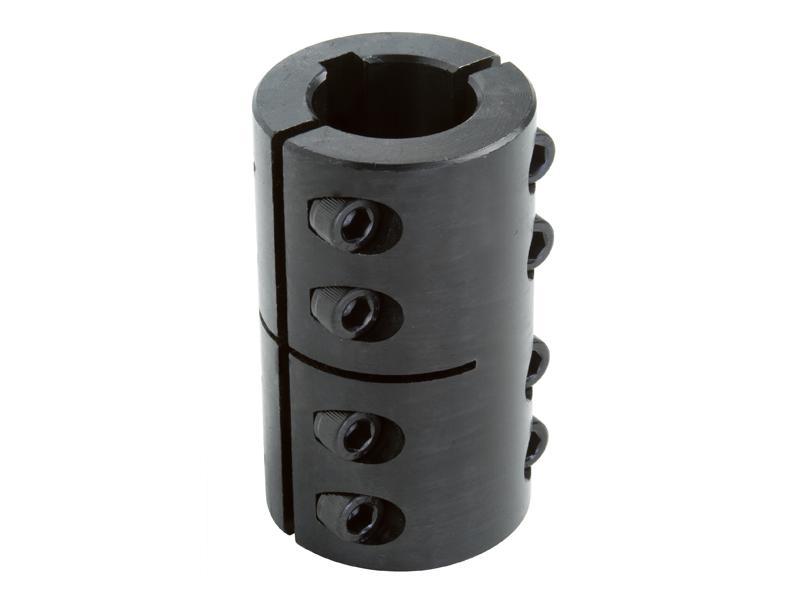

Climax 2ISCC-125-100KW 2-Piece Industry Standard Clamping Coupling With 1/4 x 1/8 in Keyway, 1 in Dia Bore, 2-1/16 in OD, 3-1/4 in OAL, 175 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2ISCC-125-100KW
  • MPN: 2ISCC-125-100KW
  • UPC: 044861061978
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Black Oxide Steel Two-Piece Industry Standard Clamping Coupling with Keyway. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 2-Piece Industry Standard, Series: 2ISCC, 1 in Bore, 2-1/16 in OD, 3-1/4 in Overall Length, 175 in-lb Torque, Steel, Black Oxide

Bore Diameter      :      1 in
Finish      :      Black Oxide
Material      :      Steel
Outside Diameter      :      2-1/16 in
Overall Length      :      3-1/4 in
Series      :      2ISCC
Torque Rating      :      175 in-lb
Type      :      2-Piece Industry Standard
  • Socket head cap screws provide holding power
  • Additional holding power over 1-piece
  • Install/replace without major disassembly of other shaft components
  • Without recessed screw
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2ISCC_125_100KW_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2ISCC_125_100KW_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Technical_Bulletin.pdf
