Climax 2ISCC-025-025-S CLI2ISCC-025-025-S
  1. pin-int

Climax 2ISCC-025-025-S CLI2ISCC-025-025-S

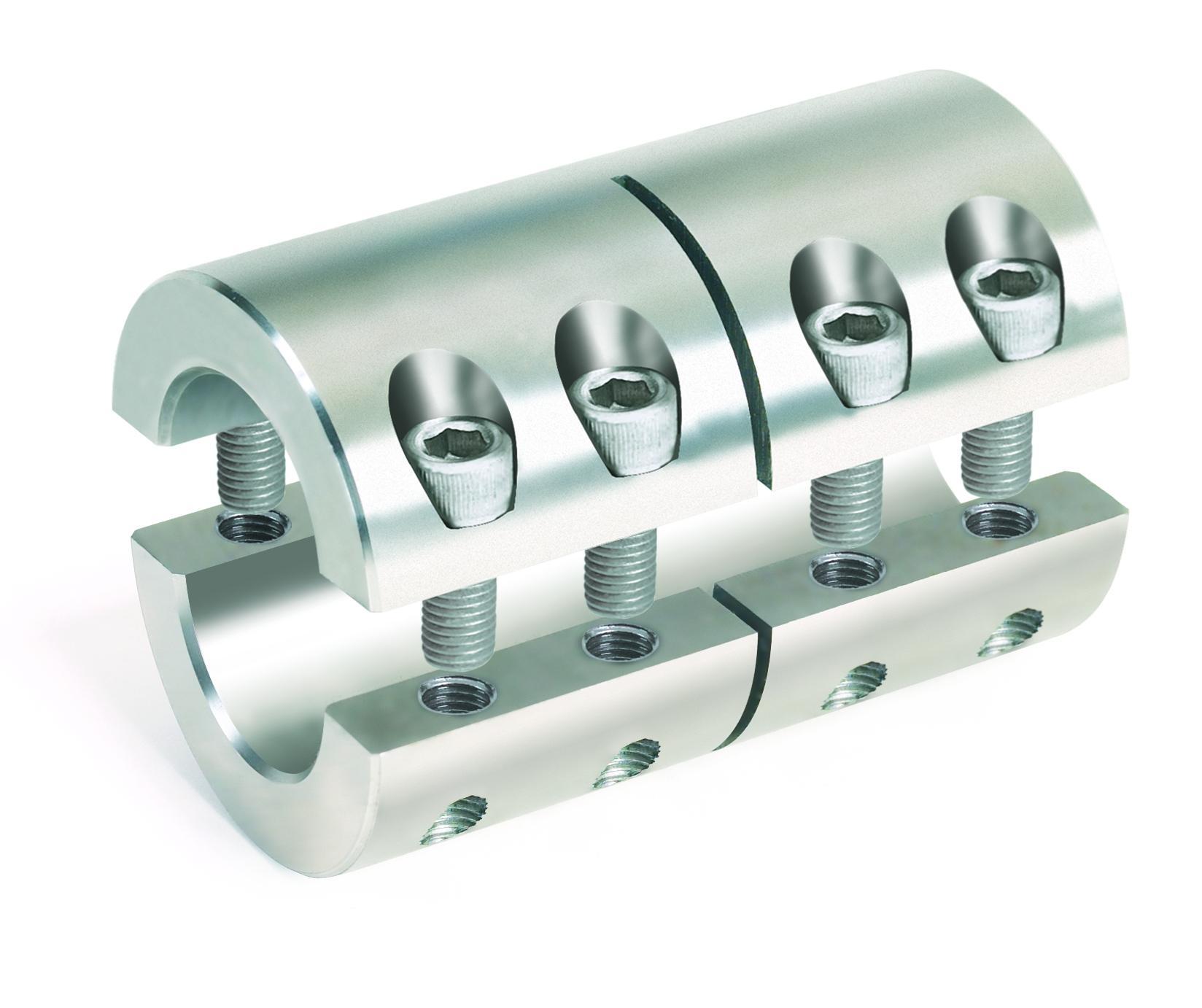

Climax 2ISCC-025-025-S 2-Piece Industry Standard Clamping Coupling, 1/4 in Dia Bore, 11/16 in OD, 1-1/8 in OAL, 8 in-lb Torque

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2ISCC-025-025-S
  • MPN: 2ISCC-025-025-S
  • UPC: 044861051054
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Stainless Steel Two-Piece Industry Standard Clamping Coupling. High axial load & torque capacity. Does not mar the shaft.

Climax Clamping Coupling, 2-Piece Industry Standard, Series: 2ISCC, 1/4 in Bore, 11/16 in OD, 1-1/8 in Overall Length, 8 in-lb Torque, Stainless Steel, Plain

Bore Diameter      :      1/4 in
Finish      :      Plain
Material      :      Stainless Steel
Outside Diameter      :      11/16 in
Overall Length      :      1-1/8 in
Series      :      2ISCC
Torque Rating      :      8 in-lb
Type      :      2-Piece Industry Standard
  • Two-piece design will not mar the shaft
  • Install/replace without major disassembly of other shaft components
  • Two-piece clamping couplings are designed to handle applications that require a greater torque capacity than set screw couplings and one-piece couplings without marring the shaft
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2ISCC_025_025_S_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2ISCC_025_025_S_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Technical_Bulletin.pdf
