Climax 2CC-075-075 CLI2CC-075-075

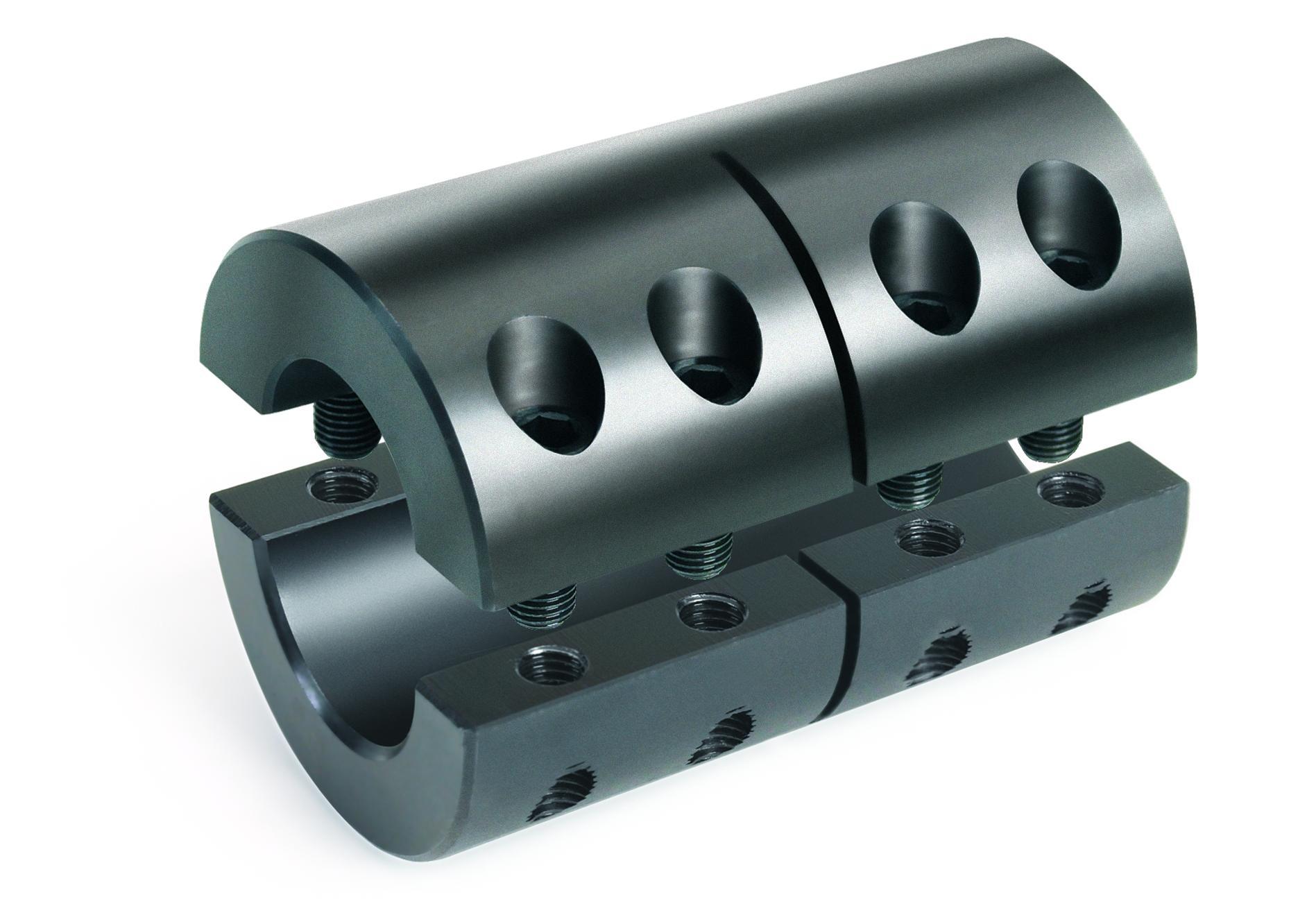

Climax 2CC-075-075 2-Piece Large Clamping Coupling With Recessed Screw, 3/4 in Dia Bore, 1-3/4 in OD, 2-5/8 in OAL, 175 in-lb Torque
- Manufacturer: Climax Metal Products
- Brand Name: Climax
- Part Number: CLI2CC-075-075
- MPN: 2CC-075-075
- UPC: 044861267004
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Black Oxide Plated Steel Two-Piece Clamping Coupling - Recessed Screw Heads. Recessed Screw Head provides an outside surface free of major projections for safety. Easily installed where major disassembly would otherwise be required. Does not mar the shaft. View Catalog Page
Climax Clamping Coupling, 2-Piece Large, Series: 2CC, 3/4 in Bore, 1-3/4 in OD, 2-5/8 in Overall Length, 175 in-lb Torque, Steel, Black Oxide
| Bore Diameter | : | 3/4 in |
| Finish | : | Black Oxide |
| Material | : | Steel |
| Outside Diameter | : | 1-3/4 in |
| Overall Length | : | 2-5/8 in |
| Series | : | 2CC |
| Torque Rating | : | 175 in-lb |
| Type | : | 2-Piece Large |
- Socket head cap screws provide holding power
- Additional holding power over 1-piece
- Recessed screw head provides an outside surface free of major projections for safety
- Install/replace without major disassembly of other shaft components
- Does not mar the shaft

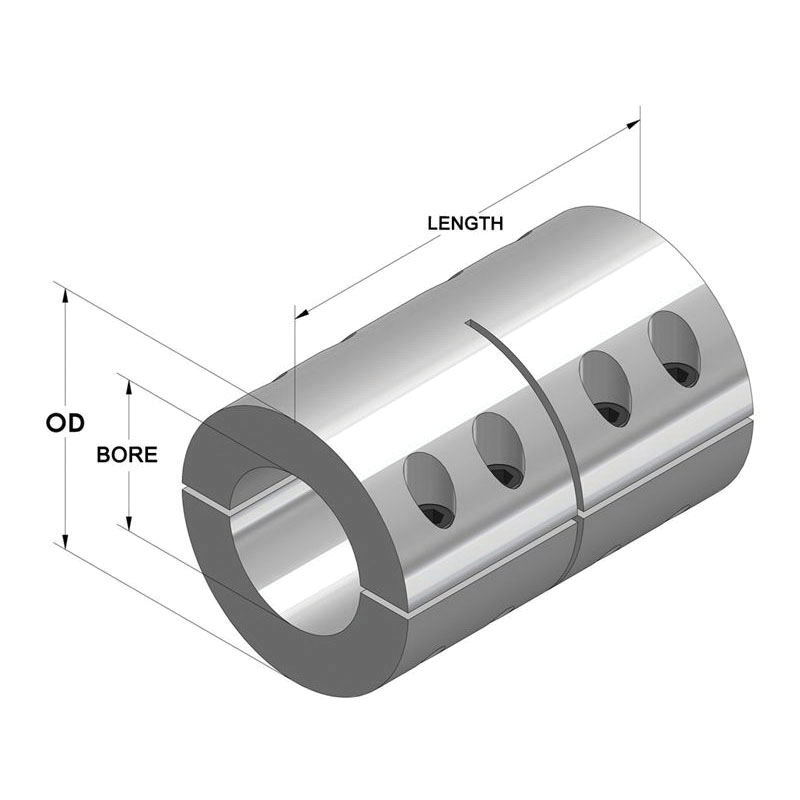

Line Drawing
