Climax 2C-218-A-KW CLI2C-218-A-KW
  1. pin-int

Climax 2C-218-A-KW CLI2C-218-A-KW

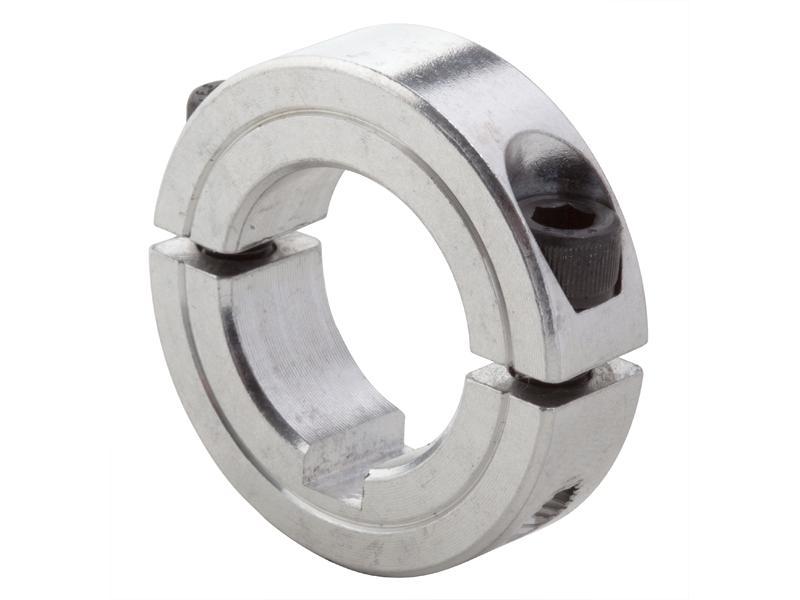

Climax 2C-218-A-KW 2C-KW Clamping Collar With 1/2 x 1/4 in Keyway, 2-Piece Split Construction, 2-3/16 in ID x 3-1/4 in OD x 3/4 in W, Aluminum

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2C-218-A-KW
  • MPN: 2C-218-A-KW
  • UPC: 044861005507
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Aluminum Two-Piece Clamping Collar with Keyway. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard & soft shafts.

Climax Clamping Collar, Series: 2C-KW, 2-Piece Split Construction, 2-3/16 in ID, 3-1/4 in OD, 3/4 in Width, Hex Socket Cap Screw Style, 5/16-24 UN-3A x 1 in Screw, Aluminum, Plain

Construction      :      2-Piece Split
Finish      :      Plain
Inside Diameter      :      2-3/16 in
Material      :      Aluminum
Outside Diameter      :      3-1/4 in
Screw Size      :      5/16-24 UN-3A x 1 in
Screw Style      :      Hex Socket Cap
Series      :      2C-KW
Width      :      3/4 in
  • Easily installed where major disassembly would otherwise be required
  • Greater axial holding power than set screw or one-piece clamp collars
  • For use on keyed shafts
  • Two-piece clamping collars with keyway are designed to handle applications that require a greater axial load capacity than set screw collars or one-piece clamp collars without marring the shaft
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2C_218_A_KW_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2C_218_A_KW_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
