Climax 2C-212-A CLI2C-212-A

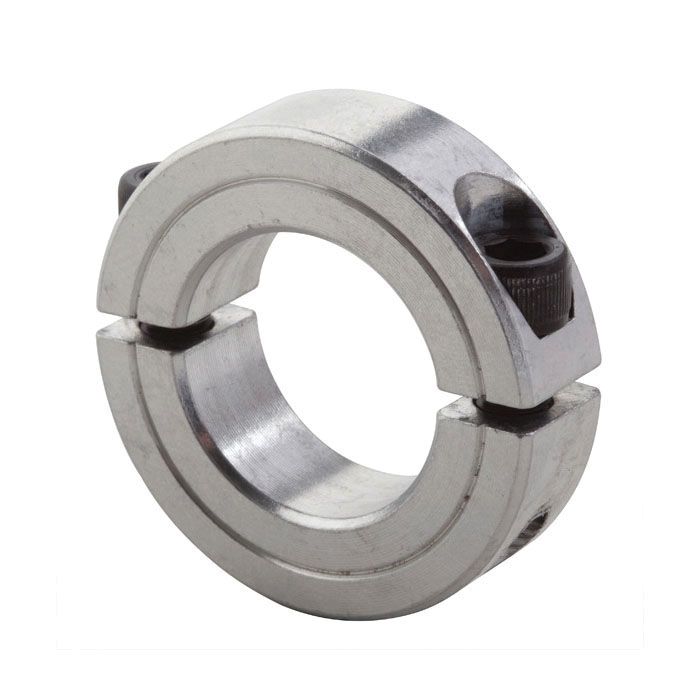

Climax 2C-212-A 2C Series Industry Standard Clamping Collar, 2-Piece Construction, 2-1/8 in ID x 3-1/4 in OD x 3/4 in W, Aluminum

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2C-212-A
  • MPN: 2C-212-A
  • UPC: 044861125489
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Aluminum Two-Piece Clamping Collar. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard & soft shafts.

Climax Clamping Collar, Industry Standard, Series: 2C Series, 2-Piece Construction, 2-1/8 in ID, 3-1/4 in OD, 3/4 in Width, Hex Socket Cap Screw Style, 5/16-24 UN-3A x 1 in Screw, Aluminum, Plain

Construction      :      2-Piece
Finish      :      Plain
Inside Diameter      :      2-1/8 in
Material      :      Aluminum
Outside Diameter      :      3-1/4 in
Screw Size      :      5/16-24 UN-3A x 1 in
Screw Style      :      Hex Socket Cap
Series      :      2C Series
Type      :      Industry Standard
Width      :      3/4 in
  • Design fully engages the shaft without marring
  • Easily installed where major disassembly would otherwise be required
  • Greater axial holding power than setscrew or 1-piece clamping collars
  • Effective on hard and soft shafts
  • Without recessed screw
  • Steel hex socket cap screw
