Climax 2C-156-Z CLI2C-156-Z
  1. pin-int

Climax 2C-156-Z CLI2C-156-Z

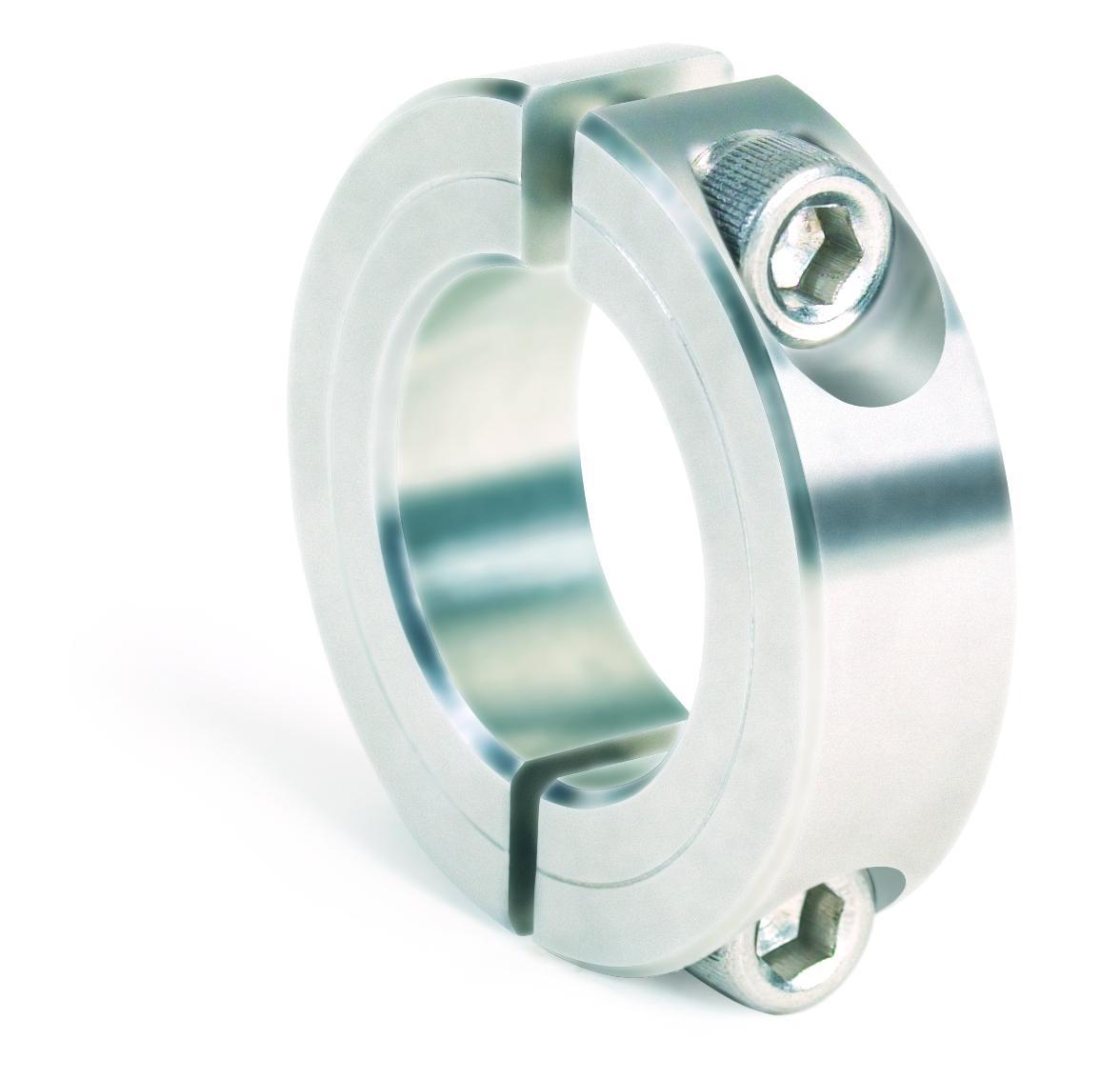

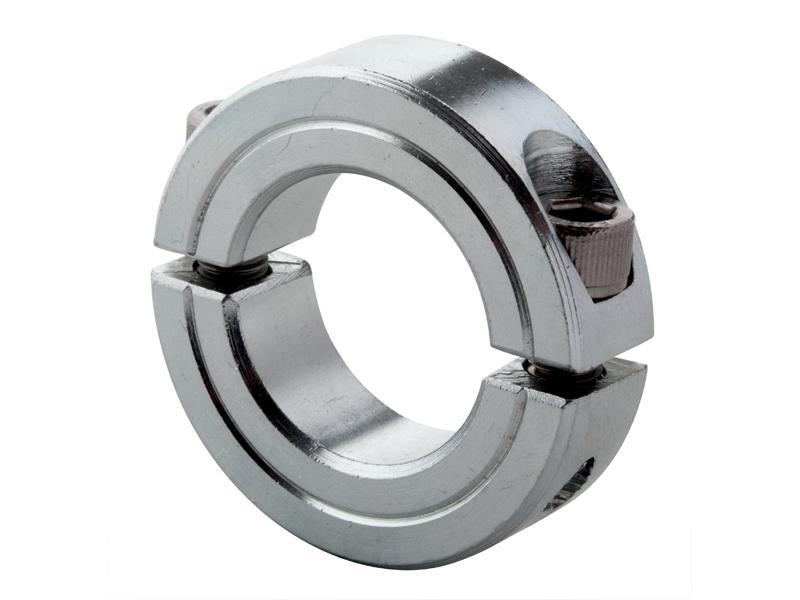

Climax 2C-156-Z Industry Standard Clamping Collar, 2-Piece Construction, 1-9/16 in ID x 2-3/8 in OD x 9/16 in W, Steel

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI2C-156-Z
  • MPN: 2C-156-Z
  • UPC: 044861050408
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Zinc Plated Steel Two-Piece Clamping Collar. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard & soft shafts.

Climax Clamping Collar, Industry Standard, Series: 2C Series, 2-Piece Construction, 1-9/16 in ID, 2-3/8 in OD, 9/16 in Width, Hex Socket Cap Screw Style, 1/4-28 UN-3A x 3/4 in Screw, Steel, Zinc Plated

Construction      :      2-Piece
Finish      :      Zinc Plated
Inside Diameter      :      1-9/16 in
Material      :      Steel
Outside Diameter      :      2-3/8 in
Screw Size      :      1/4-28 UN-3A x 3/4 in
Screw Style      :      Hex Socket Cap
Series      :      2C Series
Type      :      Industry Standard
Width      :      9/16 in
  • Easily installed where major disassembly would otherwise be required
  • Greater axial holding power than set screw or one-piece clamp collars
  • Effective on hard and soft shafts
  • Two-piece clamping collars are designed to handle applications that require a greater axial load capacity than set screw collars or one-piece clamp collars without marring the shaft
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2C_156_Z_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_2C_156_Z_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
