Climax 1C-275-Z CLI1C-275-Z

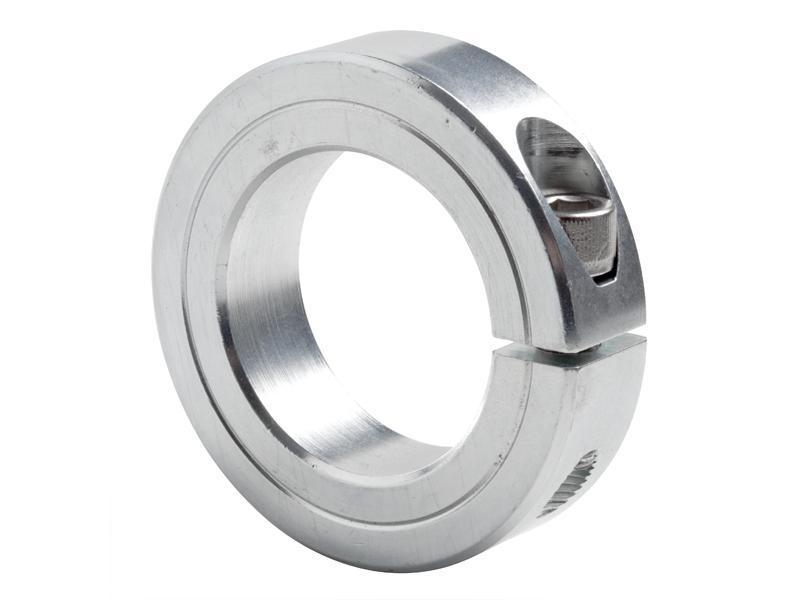

Climax 1C-275-Z 1C Series Industry Standard Clamping Collar, 1-Piece Split Construction, 2-3/4 in ID x 4 in OD x 7/8 in W, Steel
- Manufacturer: Climax Metal Products
- Brand Name: Climax
- Part Number: CLI1C-275-Z
- MPN: 1C-275-Z
- UPC: 044861046166
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Zinc One-Piece Clamping Collar. Design fully engages the shaft without marring. Greater axial holding power than set screw collars. Effective on hard & soft shafts.
Climax Clamping Collar, Industry Standard, Series: 1C Series, 1-Piece Split Construction, 2-3/4 in ID, 4 in OD, 7/8 in Width, Hex Socket Cap Screw Style, 3/8-24 UN-3A x 1 in Screw, Steel, Zinc Plated
| Construction | : | 1-Piece Split |
| Finish | : | Zinc Plated |
| Inside Diameter | : | 2-3/4 in |
| Material | : | Steel |
| Outside Diameter | : | 4 in |
| Screw Size | : | 3/8-24 UN-3A x 1 in |
| Screw Style | : | Hex Socket Cap |
| Series | : | 1C Series |
| Type | : | Industry Standard |
| Width | : | 7/8 in |
- Greater axial holding power than set screw collars
- Effective on hard and soft shafts
- One-piece clamping collars are designed to handle applications that require a greater axial load capacity than set screw collars without marring the shaft
Line Drawing
