Climax 1C-175-A CLI1C-175-A

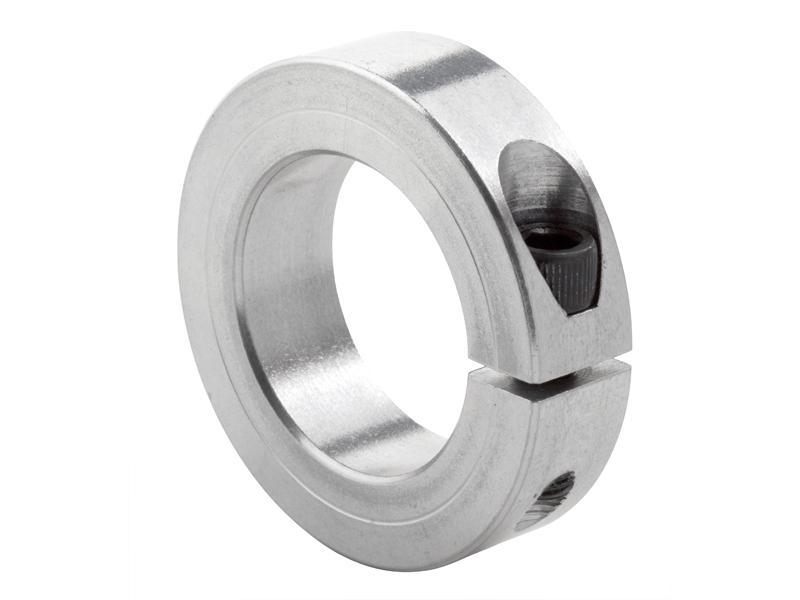

Climax 1C-175-A 1C Series Industry Standard Clamping Collar, 1-Piece Split Construction, 1-3/4 in ID x 2-3/4 in OD x 11/16 in W, Aluminum

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI1C-175-A
  • MPN: 1C-175-A
  • UPC: 044861296448
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Aluminum One-Piece Clamping Collar. Design fully engages the shaft without marring. Greater axial holding power than set screw collars. Effective on hard & soft shafts.

Climax Clamping Collar, Industry Standard, Series: 1C Series, 1-Piece Split Construction, 1-3/4 in ID, 2-3/4 in OD, 11/16 in Width, Hex Socket Cap Screw Style, 5/16-24 UN-3A x 1 in Screw, Aluminum, Plain

Construction      :      1-Piece Split
Finish      :      Plain
Inside Diameter      :      1-3/4 in
Material      :      Aluminum
Outside Diameter      :      2-3/4 in
Screw Size      :      5/16-24 UN-3A x 1 in
Screw Style      :      Hex Socket Cap
Series      :      1C Series
Type      :      Industry Standard
Width      :      11/16 in
  • Greater axial holding power than set screw collars
  • Effective on hard and soft shafts
  • One-piece clamping collars are designed to handle applications that require a greater axial load capacity than set screw collars without marring the shaft
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_1C_175_A_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_1C_175_A_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
