Climax 1C-012-S CLI1C-012-S
  1. pin-int

Climax 1C-012-S CLI1C-012-S

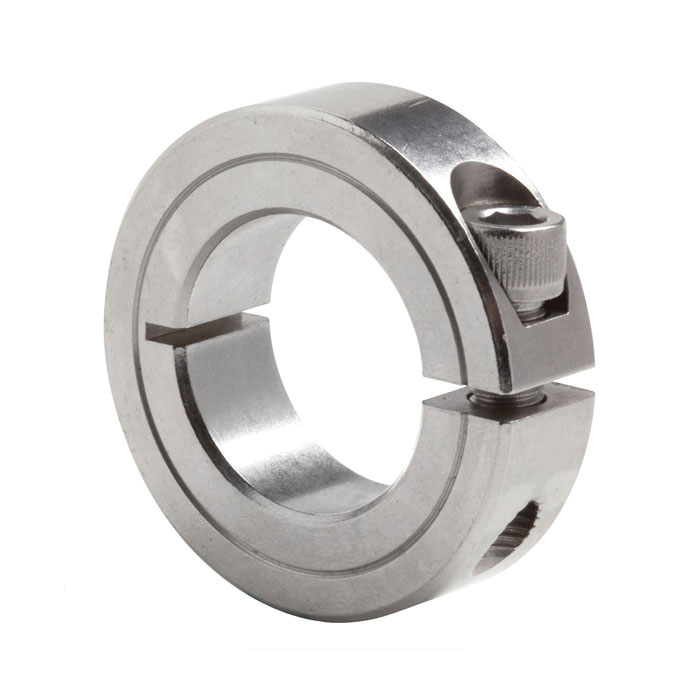

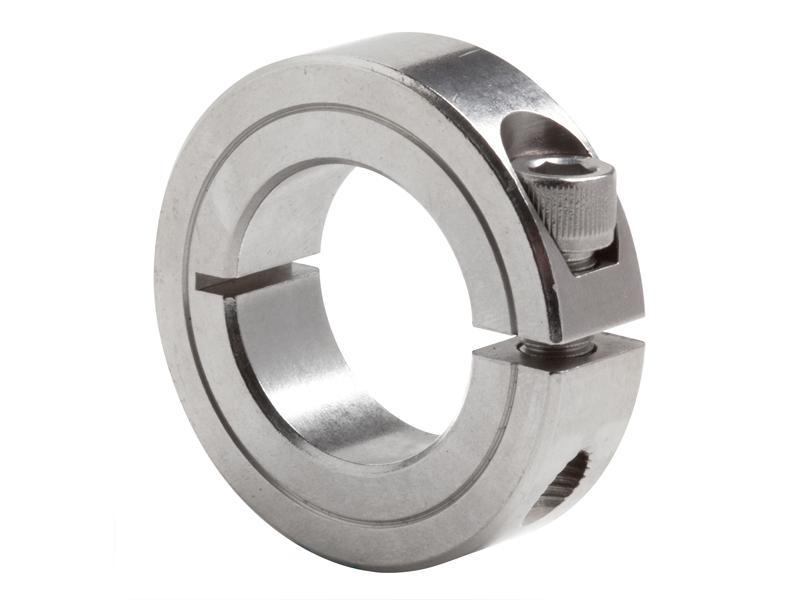

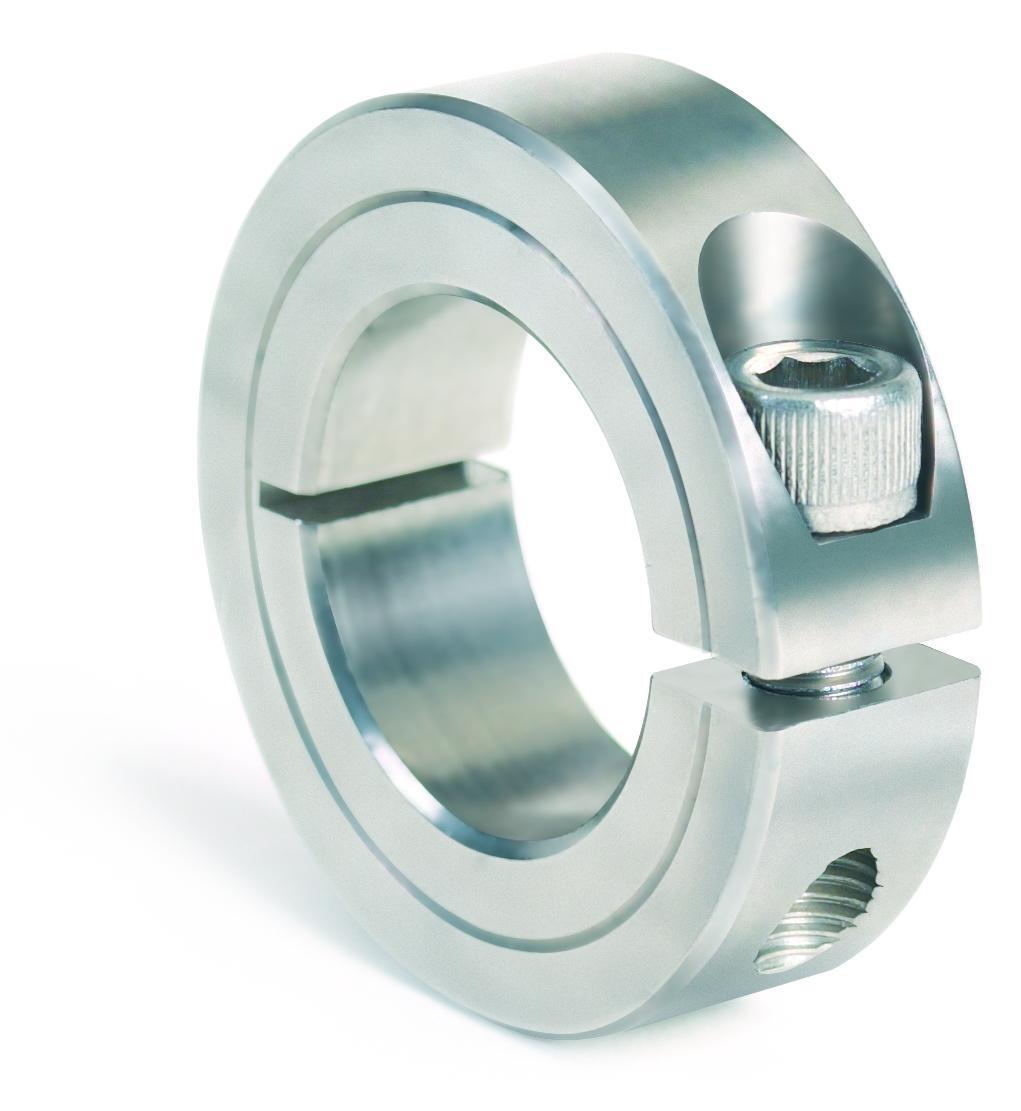

Climax 1C-012-S Industry Standard Clamping Collar, 1-Piece Split Construction, 1/8 in ID x 11/16 in OD x 5/16 in W, Stainless Steel

  • Manufacturer: Climax Metal Products
  • Brand Name: Climax
  • Part Number: CLI1C-012-S
  • MPN: 1C-012-S
  • UPC: 044861191767
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Stainless Steel One-Piece Clamping Collar. Design fully engages the shaft without marring. Greater axial holding power than set screw collars. Effective on hard & soft shafts.

Climax Clamping Collar, Industry Standard, Series: 1C Series, 1-Piece Split Construction, 1/8 in ID, 11/16 in OD, 5/16 in Width, Hex Socket Cap Screw Style, 4-40 UN-3A x 3/8 in Screw, Stainless Steel, Plain

Construction      :      1-Piece Split
Finish      :      Plain
Inside Diameter      :      1/8 in
Material      :      Stainless Steel
Outside Diameter      :      11/16 in
Screw Size      :      4-40 UN-3A x 3/8 in
Screw Style      :      Hex Socket Cap
Series      :      1C Series
Type      :      Industry Standard
Width      :      5/16 in
  • Design fully engages the shaft without marring
  • Greater axial holding power than setscrew collars
  • Effective on hard and soft shafts
  • Without recessed screw
  • Stainless steel hex socket cap screw
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_1C_012_S_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_1C_012_S_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
