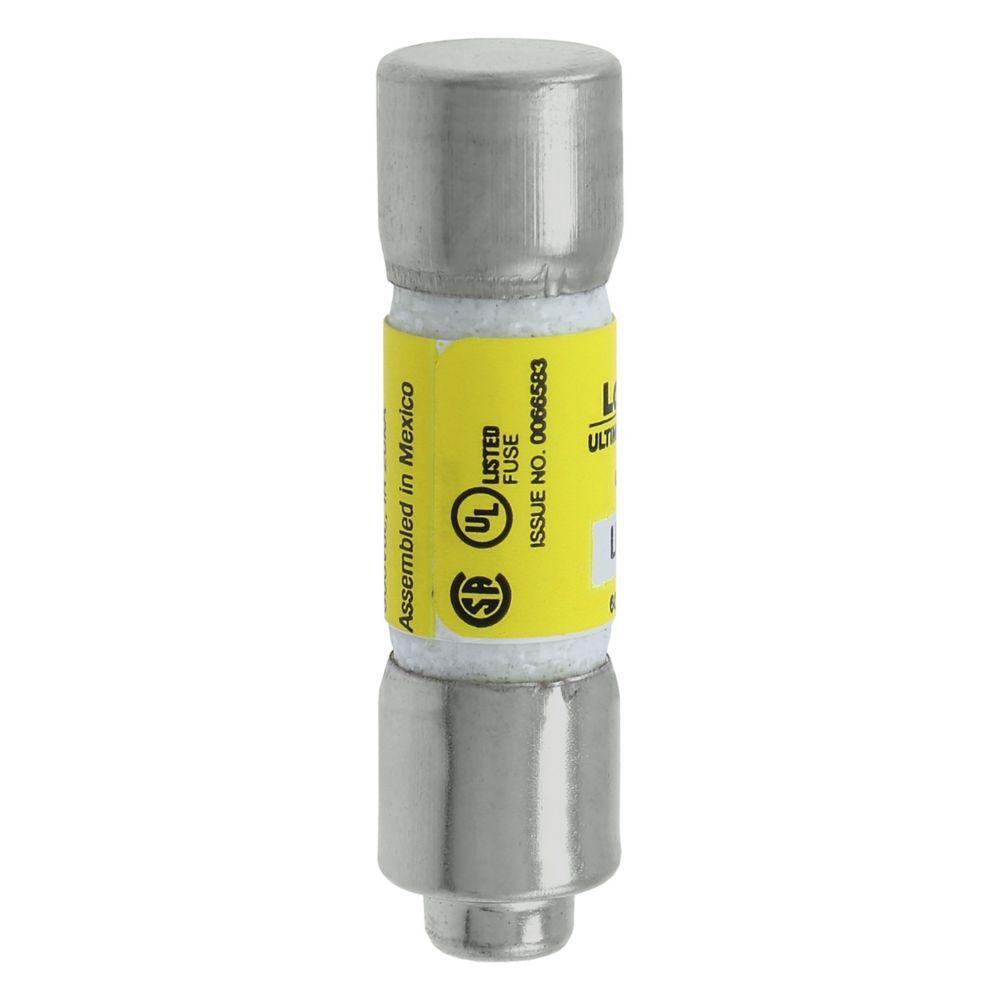

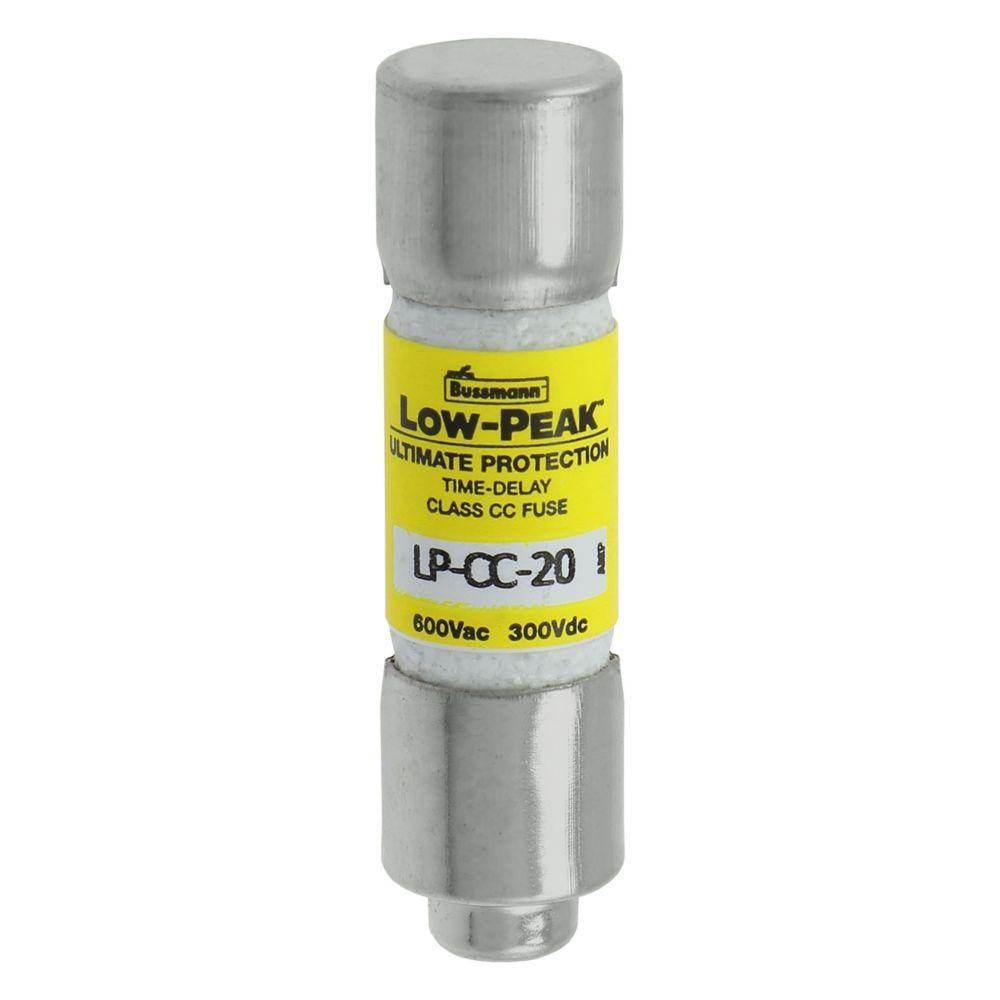

Bussmann LP-CC-20 BUSLP-CC-20

Bussmann Low-Peak™ LP-CC-20 Current Limiting Time Delay Fuse, 20 A, 600 V AC/300 V DC, 200/20 kAIC Interrupt, CC Class, Cylindrical Body

  • Manufacturer: Eaton
  • Brand Name: Bussmann
  • Part Number: BUSLP-CC-20
  • MPN: LP-CC-20
  • UPC: 051712180276
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Sign In for Pricing and Availability

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 V AC/300 V DC, 200/20 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

Amperage Rating      :      20 A
Body Size      :      13/32 in Dia x 1-1/2 in L
Body Type      :      Cylindrical
Class      :      CC
Element      :      Dual
Indicating/Non-Indicating      :      Non-Indicating
Interrupt Rating      :      200/20 kAIC
Material      :      Melamine Tube
Mounting Type      :      Holder
Rejection/Non-Rejection      :      Rejection
Response Time      :      12 s at 200%
Series      :      LP-CC
Terminal Type      :      Ferrule End
Type      :      Current Limiting Time Delay
Voltage Rating      :      600 V AC/300 V DC
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_32cabd8e48951f7b08a885816e9d31a715851fb5058bafdf93040146c6b95938.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c1b1a2f2f0fe9770a73957bada35b01a142b3a6d534ee86f8ff18f0d3bbb6f17.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c28d0f12d6bd820603cc9068449818f85f6ee4bcd40f686d759978a76c31f56a.pdf
  • videoVIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk
