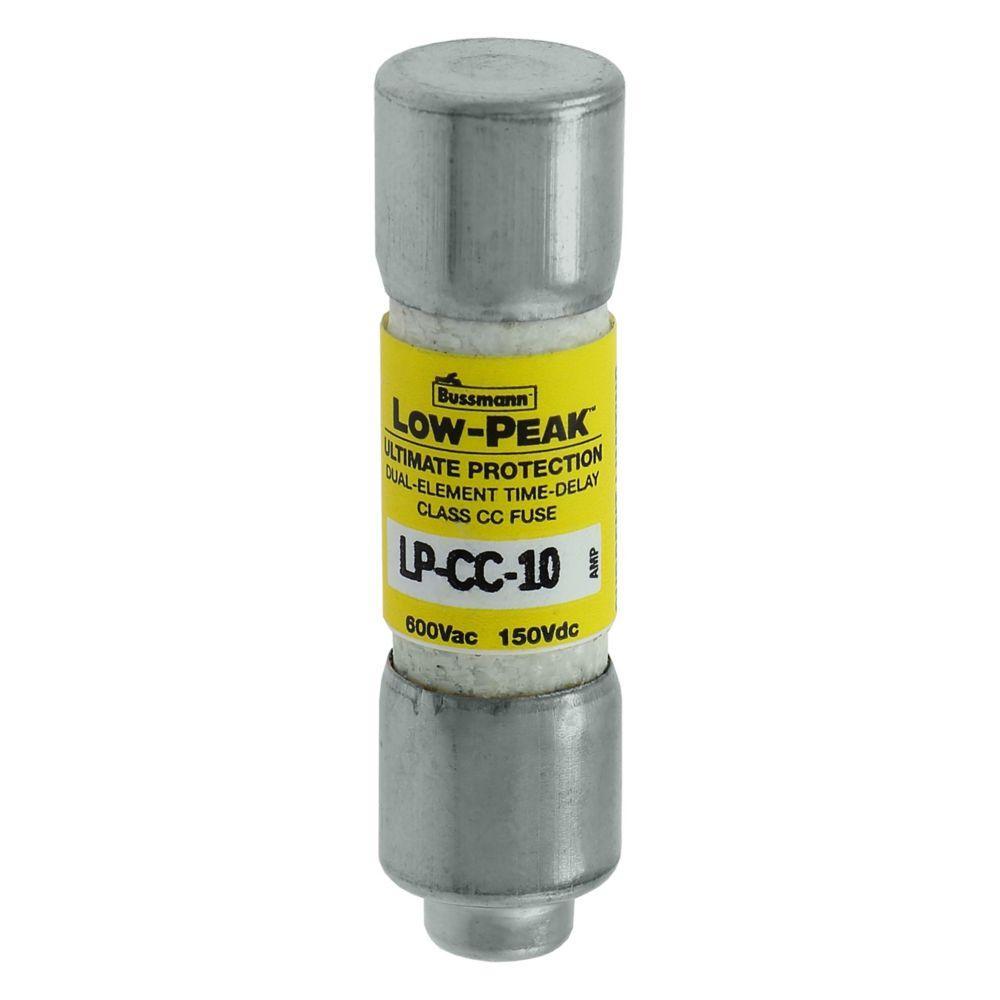

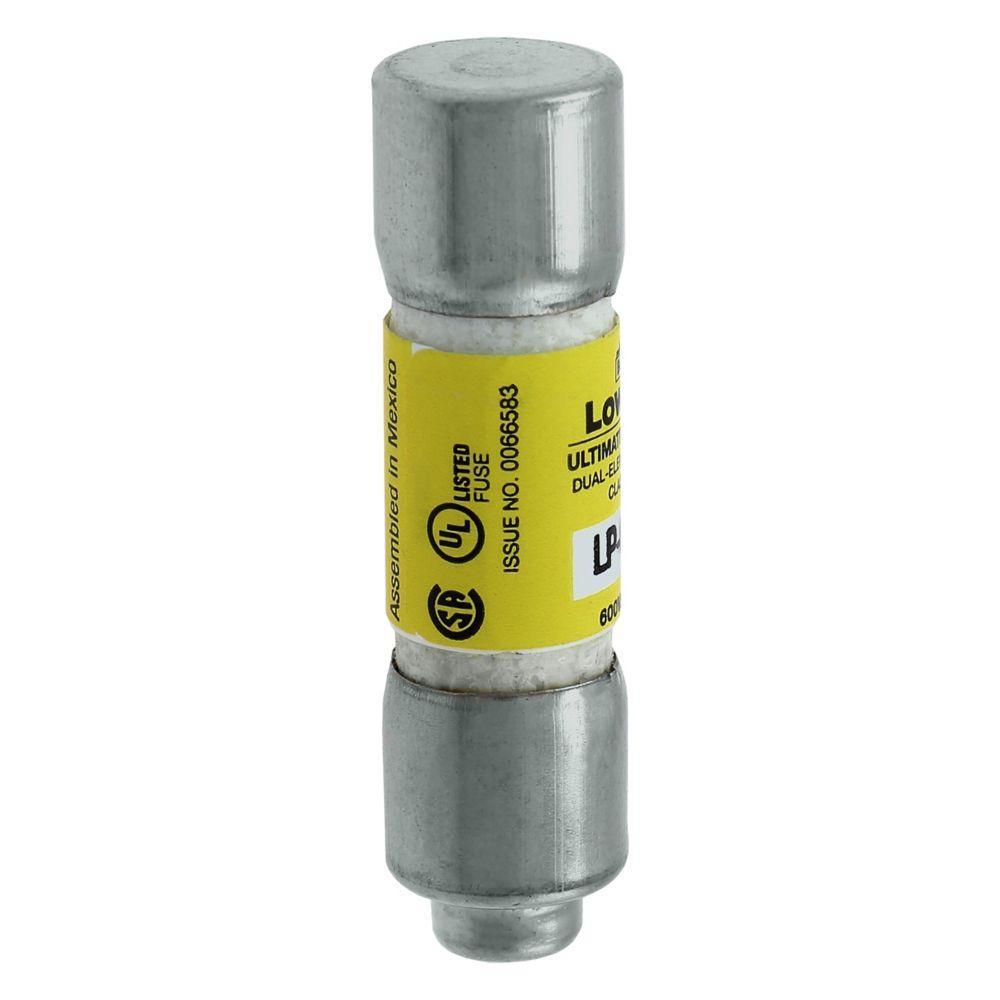

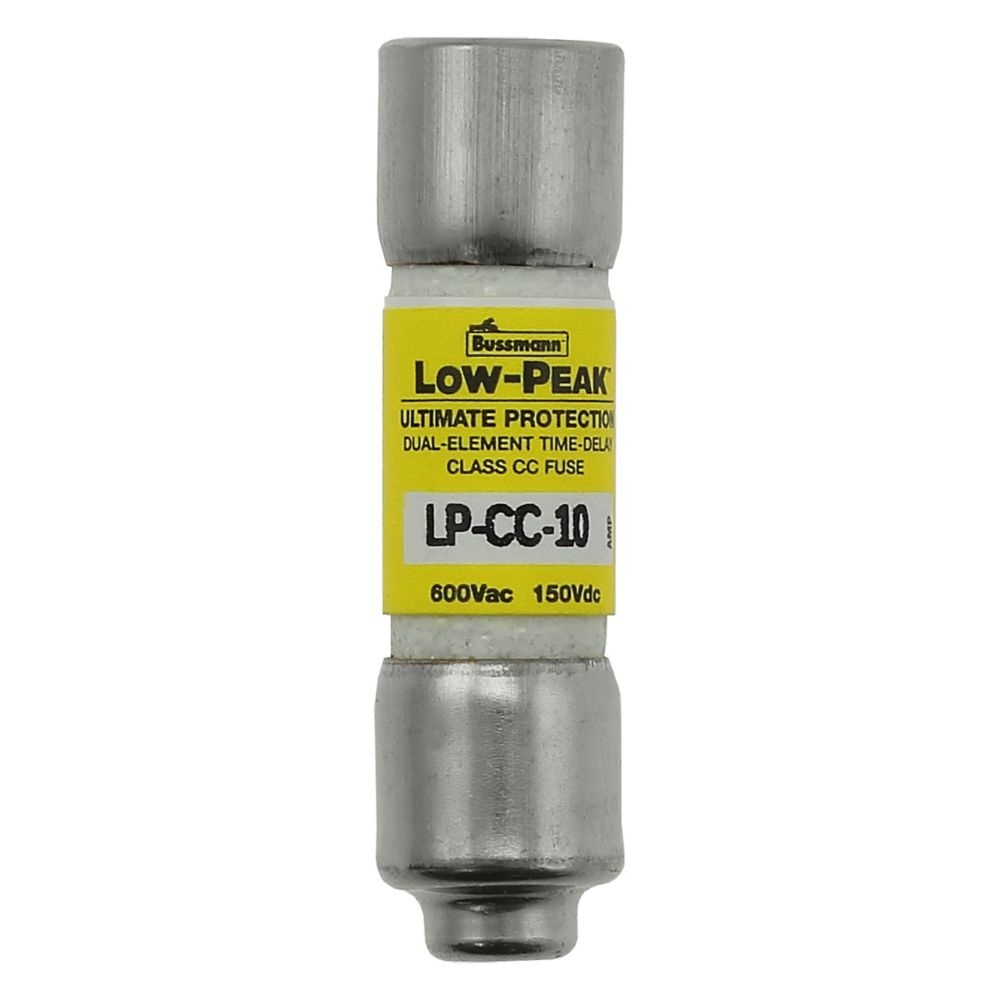

Bussmann LP-CC-10 BUSLP-CC-10
Bussmann Low-Peak™ LP-CC-10 Current Limiting Time Delay Fuse, 10 A, 600 V AC/150 V DC, 200/20 kAIC Interrupt, CC Class, Cylindrical Body
- Manufacturer: Eaton
- Brand Name: Bussmann
- Part Number: BUSLP-CC-10
- Alt Part Number: 7604927
- MPN: LP-CC-10
- UPC: 051712180245
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: EACH
-
Price:
Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 10 A, 600 V AC/150 V DC, 200/20 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
| Amperage Rating | : | 10 A |
| Body Size | : | 13/32 in Dia x 1-1/2 in L |
| Body Type | : | Cylindrical |
| Class | : | CC |
| Element | : | Dual |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200/20 kAIC |
| Material | : | Melamine Tube |
| Mounting Type | : | Holder |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | 12 s at 200% |
| Series | : | LP-CC |
| Terminal Type | : | Ferrule End |
| Type | : | Current Limiting Time Delay |
| Voltage Rating | : | 600 V AC/150 V DC |
