Browning® PD9001 BRO203TBP103
  1. pin-int

Browning® PD9001 BRO203TBP103

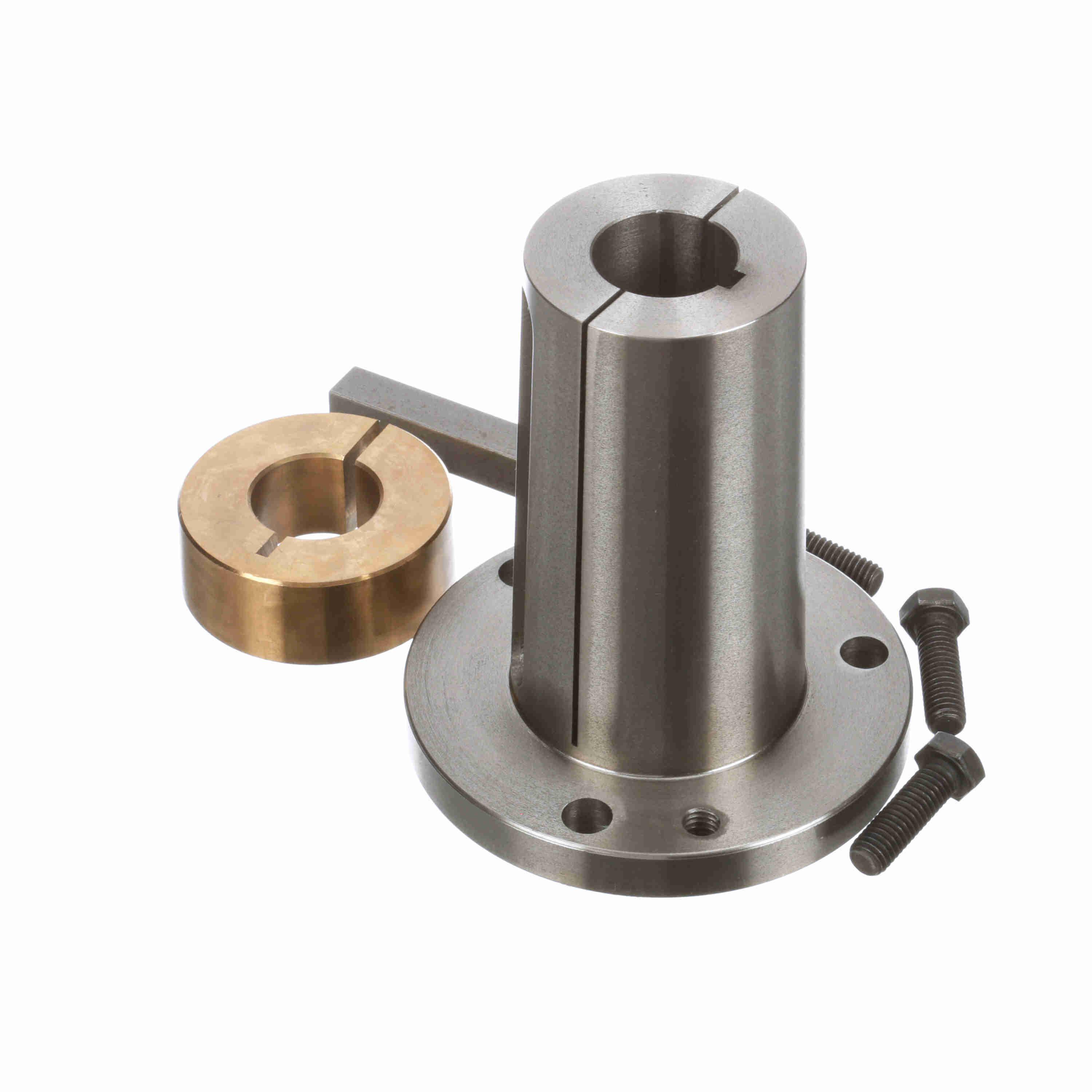

Browning® PD9001 Taper Bore Bushing Kit, 1-3/16 in ID x 2-3/16 in OD Dia Bushing, For Use With TorqTaper® Plus Size 203SMTP Shaft Mount Speed Reducer, Ductile Iron

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO203TBP103
  • Alt Part Number: 203TBP103
  • MPN: PD9001
  • UPC: 662288910848
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Many accessories accompany the Browning® shaft mount reducer. These accessories are designed to provide installation flexibility, improved performance and safety.

Browning® Bushing Kit, Taper Bore, 1-3/16 in ID x 2-3/16 in OD Diameter Bushing, For Use With: TorqTaper® Plus Size 203SMTP Shaft Mount Speed Reducer, Specifications: 4-5/8 in Length Through Bore, 4-1/2 in OD, Ductile Iron, 4-1/2 in OD x 4-5/8 in L

Bushing Diameter      :      1-3/16 in ID x 2-3/16 in OD
Dimensions      :      4-1/2 in OD x 4-5/8 in L
Material      :      Ductile Iron
Specifications      :      4-5/8 in Length Through Bore, 4-1/2 in OD
Suitable For Use With      :      TorqTaper® Plus Size 203SMTP Shaft Mount Speed Reducer
Type      :      Taper Bore
  • Self-locking taper angle creates powerful gripping forces
  • External key furnished
  • Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
  • Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
  • Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
  • Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
