Browning® PB0001 BRO107SMTP05
  1. pin-int

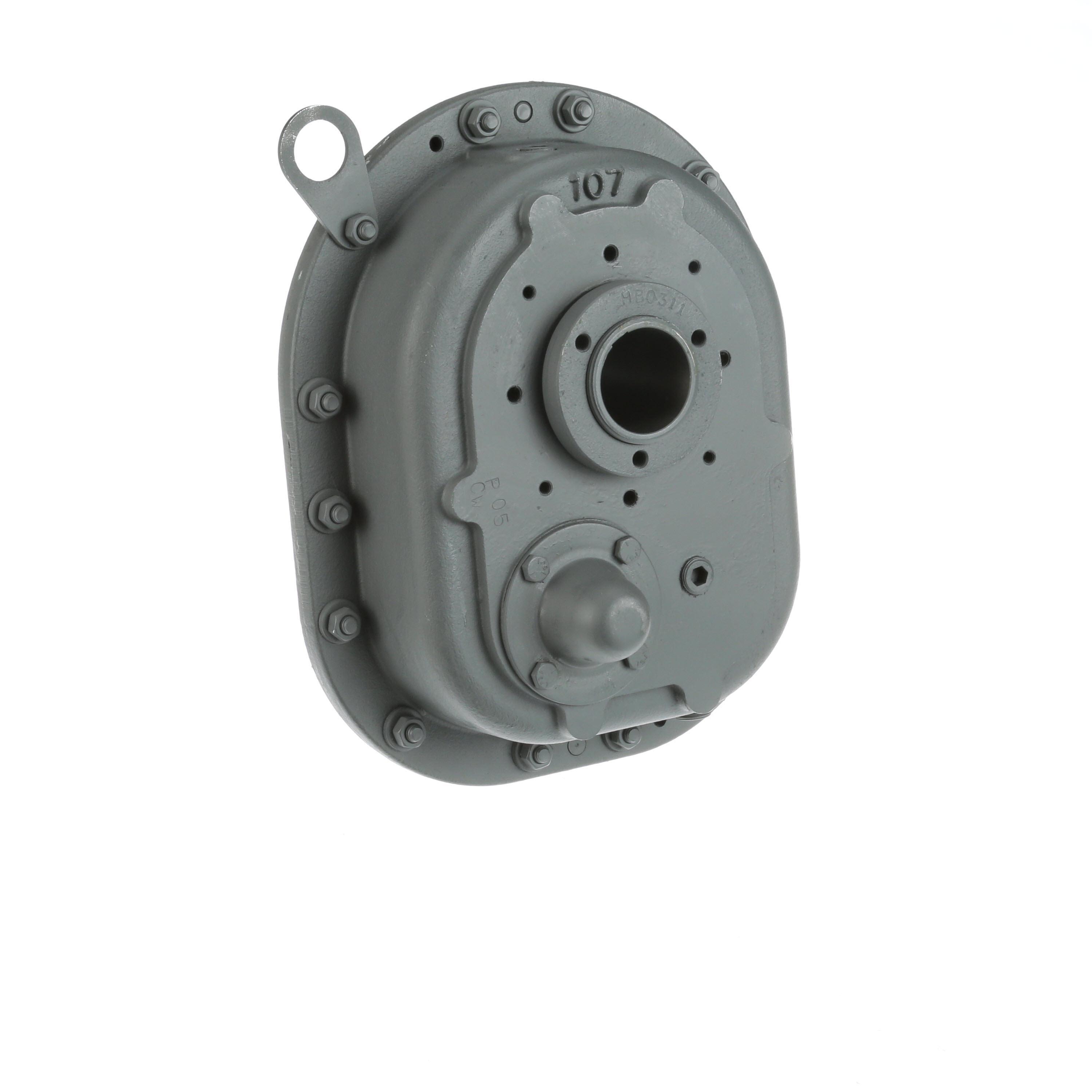

Browning® PB0001 BRO107SMTP05

Browning® TorqTaper® Plus PB0001 Type SMTP Shaft Mount Reducer, Solid Shaft Input, Tapered Bore Output, 1 hp, 5:1 Gear Ratio, 350 rpm Maximum Output, 36.013 in-lb Input/180.07 in-lb Output Torque Rating

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO107SMTP05
  • Alt Part Number: 107SMTP05
  • MPN: PB0001
  • UPC: 662288909941
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

Browning® TorqTaper® Plus Shaft Mount Reducer, Type SMTP, 5:1 Gear Ratio, 1 hp, Solid Shaft Input, Tapered Bore Output, 0.75 in Dia x 4.08 in L Input, 1-7/16 in Output, 350 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/180.07 in-lb Output, 3.77 in Centre Distance, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, Cast Iron, 9.76 in L x 11.07 in W x 12.07 in H

Centre Distance      :      3.77 in
Dimensions      :      9.76 in L x 11.07 in W x 12.07 in H
Efficiency      :      80 %
Gear Ratio      :      5:1
Horsepower      :      1 hp
Input Maximum Speed      :      1750 rpm
Input Size      :      0.75 in Dia x 4.08 in L
Input Type      :      Solid Shaft
Lubrication Type      :      Synthetic/Mineral Oil
Material      :      Cast Iron
Output Maximum Speed      :      350 rpm
Output Size      :      1-7/16 in
Output Type      :      Tapered Bore
Torque Rating      :      36.013 in-lb Input/180.07 in-lb Output
Type      :      Type SMTP
  • Tapered stabilizer ring minimizes wobble and resists fretting corrosion
  • End cap seals quill end from contamination
  • Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement
  • Options and Accessories, Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options
