Browning® 767988 BROVF2S236
  1. pin-int

Browning® 767988 BROVF2S236

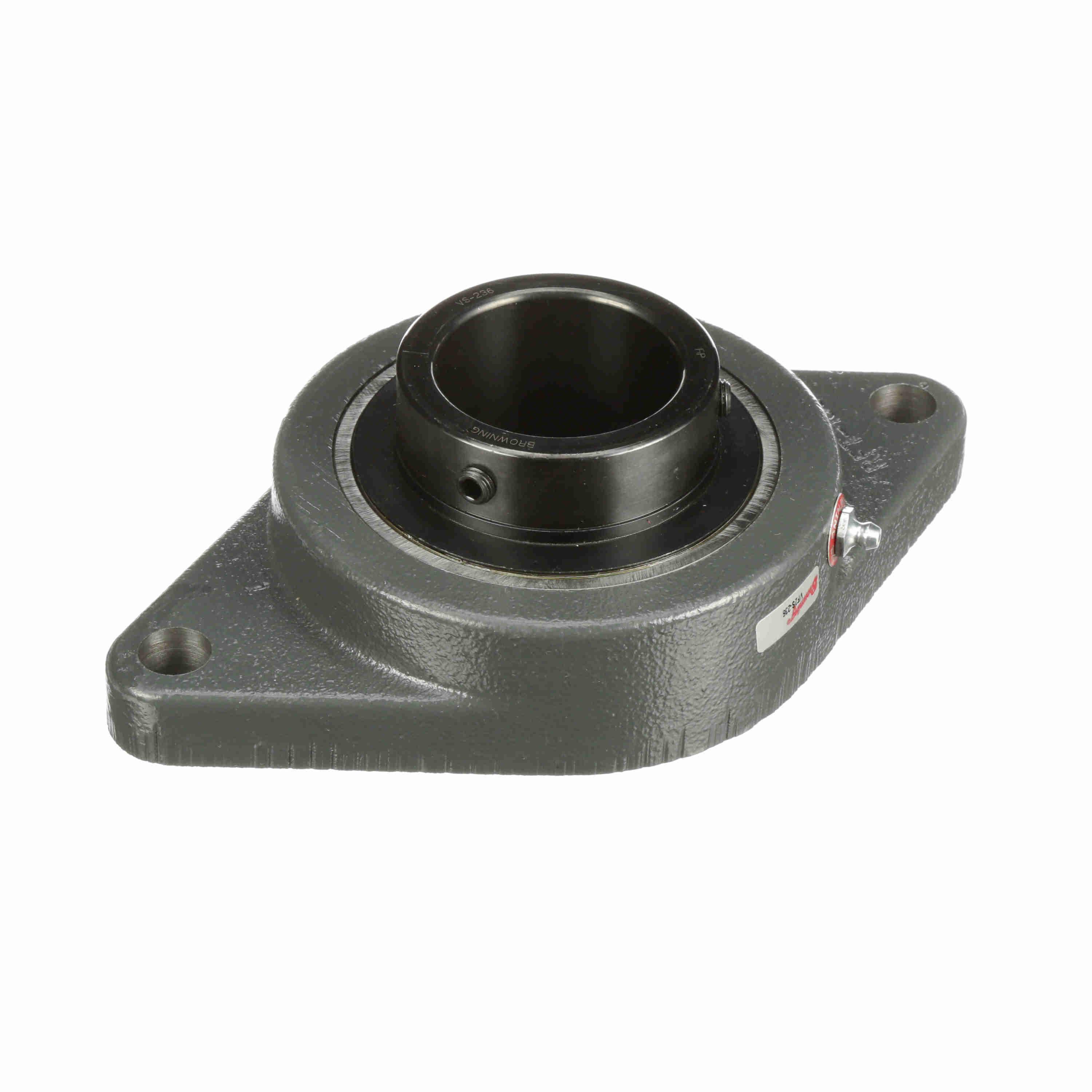

Browning® 767988 VF2S 200 Non-Expansion Normal Duty Ball Bearing Unit With Seal Flinger, 2-1/4 in Dia Bore, 7-15/16 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 9-1/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF2S236
  • Alt Part Number: VF2S-236
  • MPN: 767988
  • UPC: 662289521555
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Unit, Non-Expansion Normal Duty, Series: VF2S 200, 2-1/4 in Bore, 7-15/16 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 9-1/4 in Overall Length/Diameter, 2-11/16 in Overall Depth, 5-7/16 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 11789 lb Dynamic/8150 lb Static Load, 2500 rpm Maximum, 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      7-15/16 in
Bore Diameter      :      2-1/4 in
Finish      :      Gray Painted
Flange Mounting Type      :      2-Bolt
Load Capacity      :      11789 lb Dynamic/8150 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      2500 rpm
Overall Depth      :      2-11/16 in
Overall Height      :      5-7/16 in
Overall Length/Diameter      :      9-1/4 in
Seal Material      :      Nitrile Rubber
Series      :      VF2S 200
Temperature Rating      :      200 deg F
Type      :      Non-Expansion Normal Duty
  • A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • Semi solid cast iron base
  • Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
  • Nylon retainer
  • 52100 bearing insert
  • NLGI 2 lithium complex grease lubrication
  • Powder coat epoxy cast iron housing
  • Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
