Browning® 767917 BROVPE228
  1. pin-int

Browning® 767917 BROVPE228

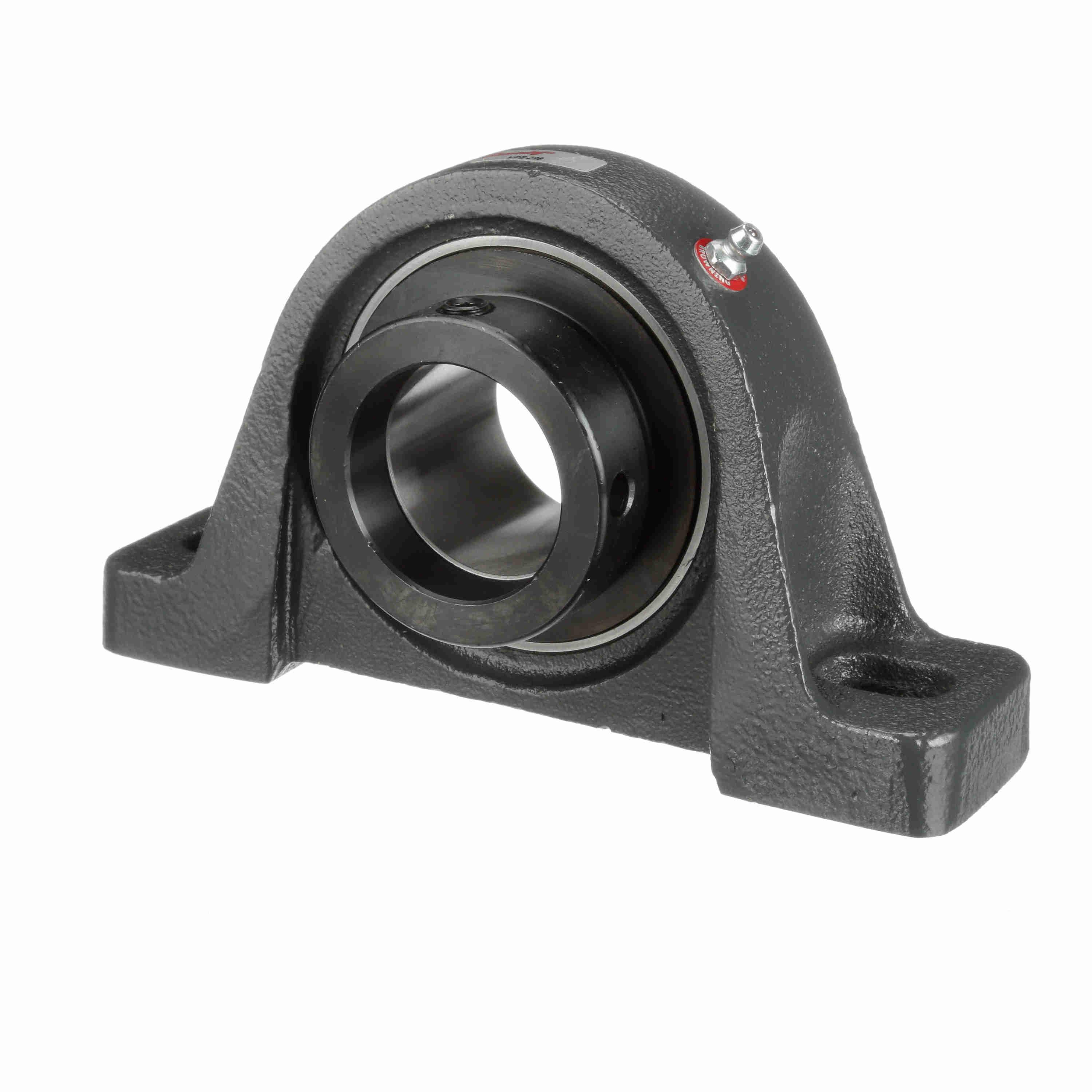

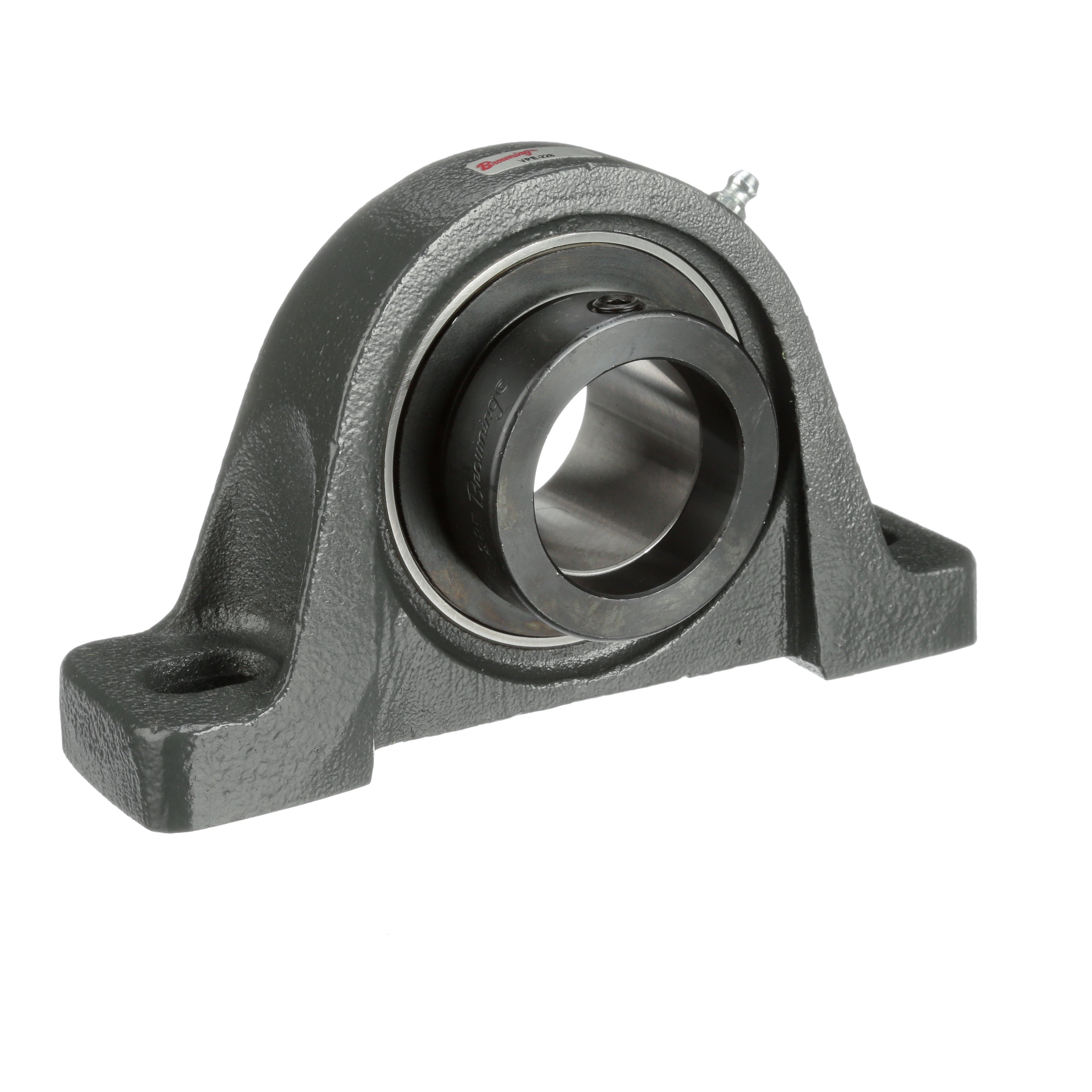

Browning® 767917 VPE 200 Normal Duty Pillow Block Ball Bearing, 1-3/4 in Dia Bore, 5-13/64 to 6-7/64 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 7-3/8 in OAL x 4-1/4 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVPE228
  • Alt Part Number: VPE-228
  • MPN: 767917
  • UPC: 662289523542
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

Browning® Pillow Block Ball Bearing, Normal Duty, Series: VPE 200, 1-3/4 in Bore, 5-13/64 to 6-7/64 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-3/8 in Overall Length, 4-1/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2 in Base Width, Eccentric Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 7901 lb Dynamic/5139 lb Static Load, -20 to 200 deg F, 3000 rpm Maximum, Cast Iron, Gray Painted

Base Width      :      2 in
Base to Bore Centerline      :      2-1/8 in
Bolt Center-to-Center Length      :      5-13/64 to 6-7/64 in
Bore Diameter      :      1-3/4 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Gray Painted
Load Capacity      :      7901 lb Dynamic/5139 lb Static
Locking Device      :      Eccentric
Material      :      Cast Iron
Maximum Speed      :      3000 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4-1/4 in
Overall Length      :      7-3/8 in
Seal Type      :      Single Lip Contact with Flinger
Series      :      VPE 200
Temperature Rating      :      -20 to 200 deg F
Type      :      Normal Duty
  • Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
  • The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
  • Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
  • An anti-rotation rivet prevents outer ring creep or rotation, within the housing
  • Zone hardened inner race
  • Spherical outer diameter bearing insert
  • 52100 steel insert
  • Alemite fitting lubrication
  • Nylon retainer
  • Powder coat epoxy cast iron housing
  • Eccentric locking designed for locking in direction of rotation
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_767292_Specification_Sheet.pdf
