Browning® 767912 BROVTWS231

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

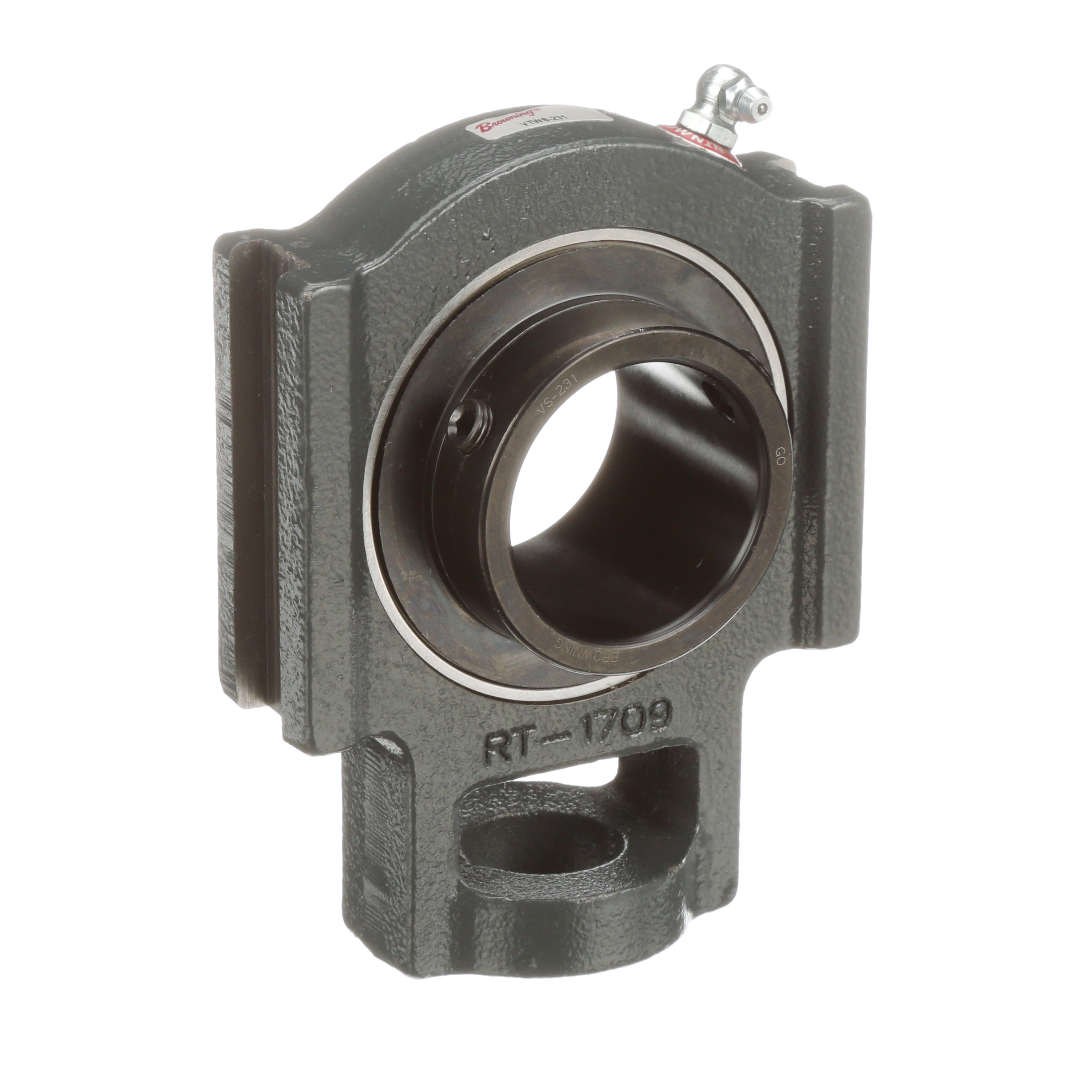

Browning® Take-Up Ball Bearing Unit, Non-Expansion Normal Duty, Series: VTWS 200, 1-15/16 in Bore Dia, 5-29/32 in Length, 2-1/8 in Width, 4-1/2 in Height, 7889 lb Dynamic/5216 lb Static, For Use With: 18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frame, Steel Bearing, -20 to 200 deg F, Gray Painted

• Powder coat epoxy cast iron housing
• Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_767404_Specification_Sheet.pdf
