Browning® 767768 BROVPE115M
  1. pin-int

Browning® 767768 BROVPE115M

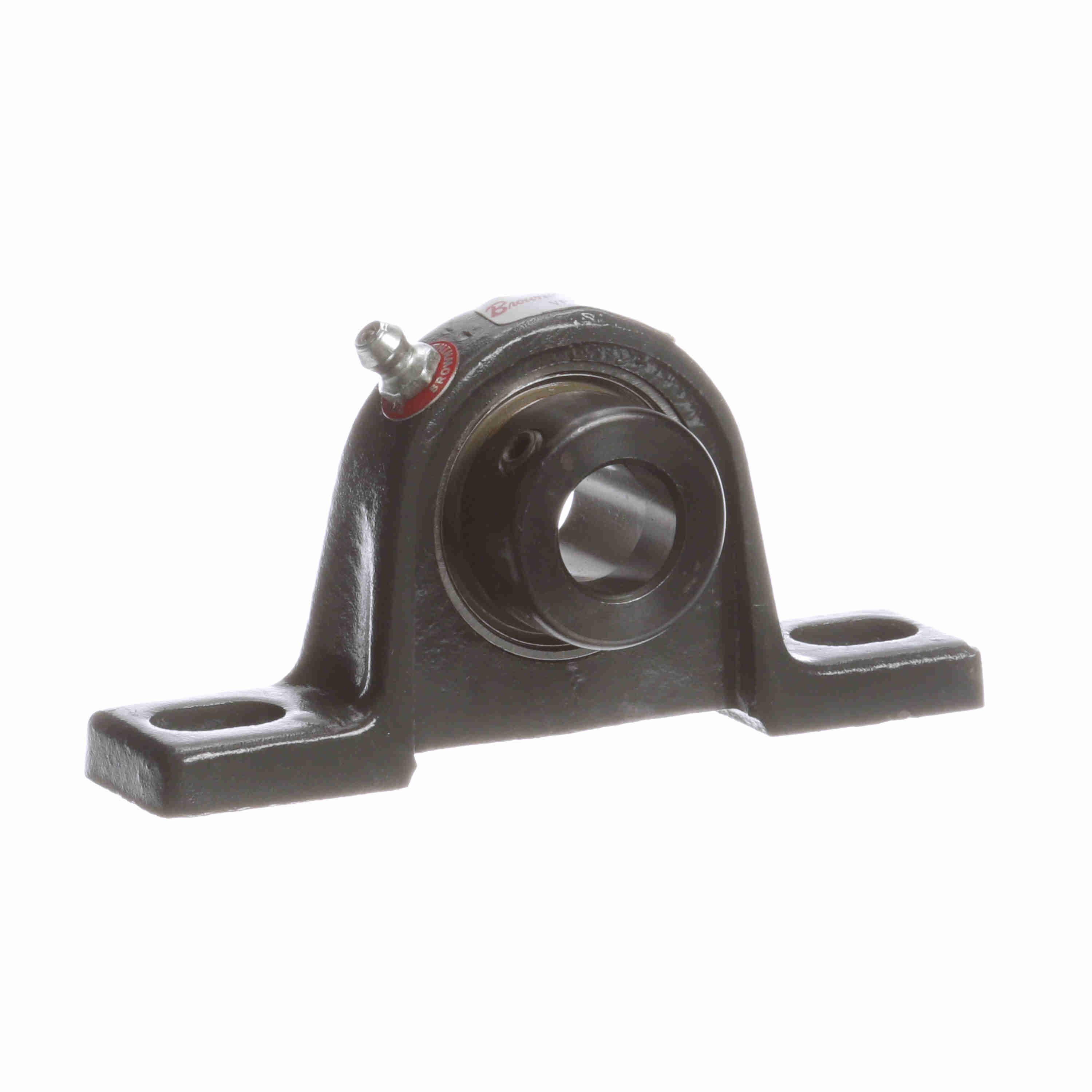

Browning® 767768 VPE 100 Intermediate Duty High Base Pillow Block Ball Bearing Unit, 15/16 in Dia Bore, 3-11/16 to 4-9/16 in L Bolt Center-to-Center, 1-7/16 in Base to Bore Centerline, 5-1/2 in OAL x 2-13/16 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVPE115M
  • Alt Part Number: VPE-115M
  • MPN: 767768
  • UPC: 662289077540
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Pillow Block Ball Bearing Unit, Intermediate Duty High Base, Series: VPE 100, 15/16 in Bore, 3-11/16 to 4-9/16 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 5-1/2 in Overall Length, 2-13/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-13/32 in Base Width, Eccentric Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 2801 lb Dynamic/1651 lb Static Load, 200 to 250 deg F, 3500 rpm Maximum, Cast Iron, Gray Painted

Base Width      :      1-13/32 in
Base to Bore Centerline      :      1-7/16 in
Bolt Center-to-Center Length      :      3-11/16 to 4-9/16 in
Bore Diameter      :      15/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Gray Painted
Load Capacity      :      2801 lb Dynamic/1651 lb Static
Locking Device      :      Eccentric
Material      :      Cast Iron
Maximum Speed      :      3500 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      2-13/16 in
Overall Length      :      5-1/2 in
Seal Type      :      Single Lip
Series      :      VPE 100
Temperature Rating      :      200 to 250 deg F
Type      :      Intermediate Duty High Base
  • A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • Semi solid cast iron rugged base design provides an excellent mounting foundation
  • Zone hardened inner race
  • Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
  • Nylon retainer
  • 52100 steel insert
  • Alemite fitting lubrication
