Browning® 767748 BROVF3S120M

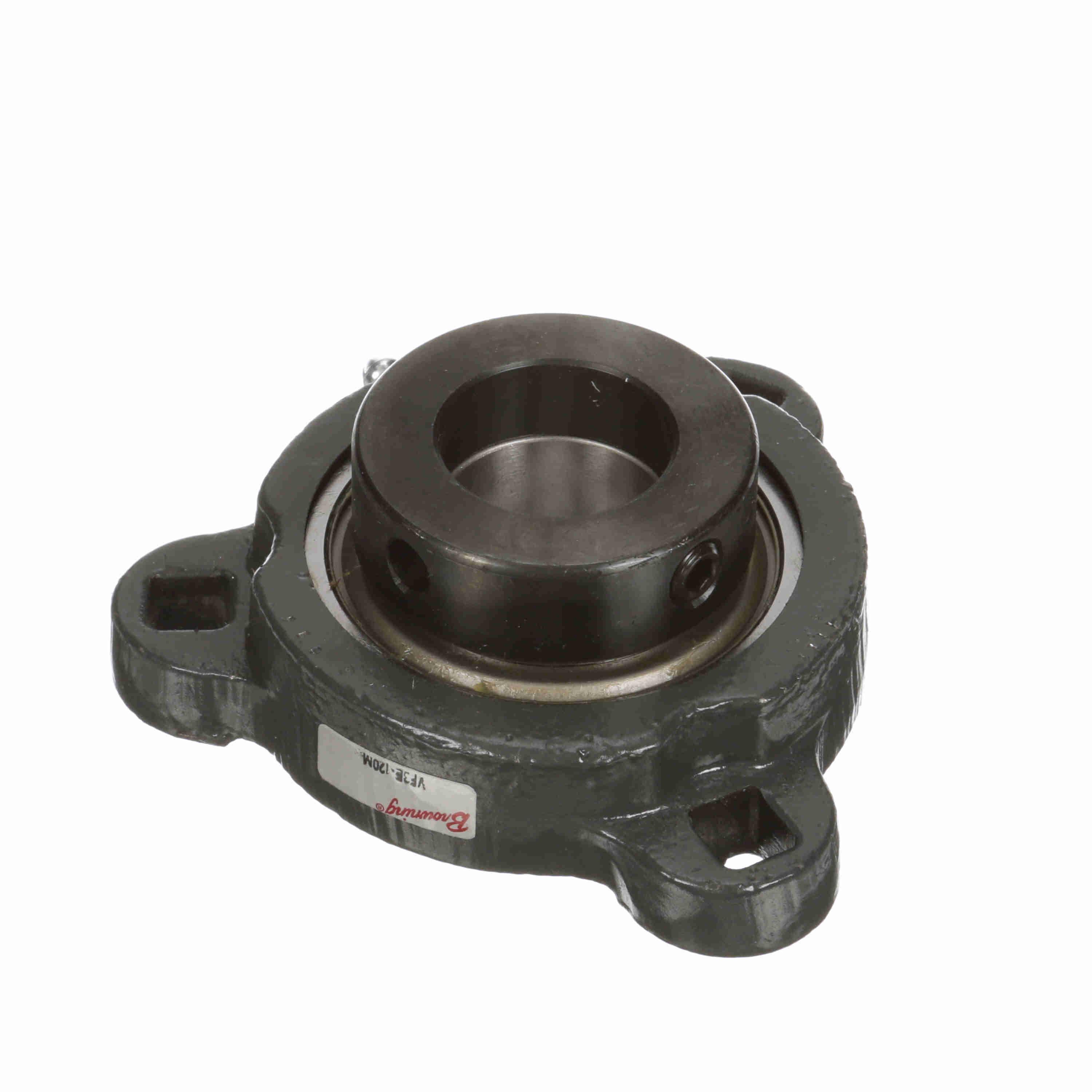

Browning® 767748 VF3S 100-M Light Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 3-15/16 in Dia Bolt Circle, 3-Bolt Flange Mount, 4-13/16 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROVF3S120M
- Alt Part Number: VF3S-120M
- MPN: 767748
- UPC: 662289075362
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Flange Mount Ball Bearing Unit, Light Duty Non-Expansion Round/Straight Bore, Series: VF3S 100-M, 1-1/4 in Bore, 3-15/16 in Diameter Bolt Circle, 3-Bolt Flange Mounting, 4-13/16 in Overall Length/Diameter, 1-25/64 in Overall Depth, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 5782 lb Dynamic/3493 lb Static Load, 3000 rpm Maximum, -20 to 200 deg F, Gray Painted
| Bearing Material | : | Steel |
| Bolt Circle Diameter | : | 3-15/16 in |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Gray Painted |
| Flange Mounting Type | : | 3-Bolt |
| Load Capacity | : | 5782 lb Dynamic/3493 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 3000 rpm |
| Overall Depth | : | 1-25/64 in |
| Overall Length/Diameter | : | 4-13/16 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | VF3S 100-M |
| Temperature Rating | : | -20 to 200 deg F |
| Type | : | Light Duty Non-Expansion Round/Straight Bore |
- Powder coat epoxy malleable iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
