Browning® 767737 BROVF2S114M
  1. pin-int

Browning® 767737 BROVF2S114M

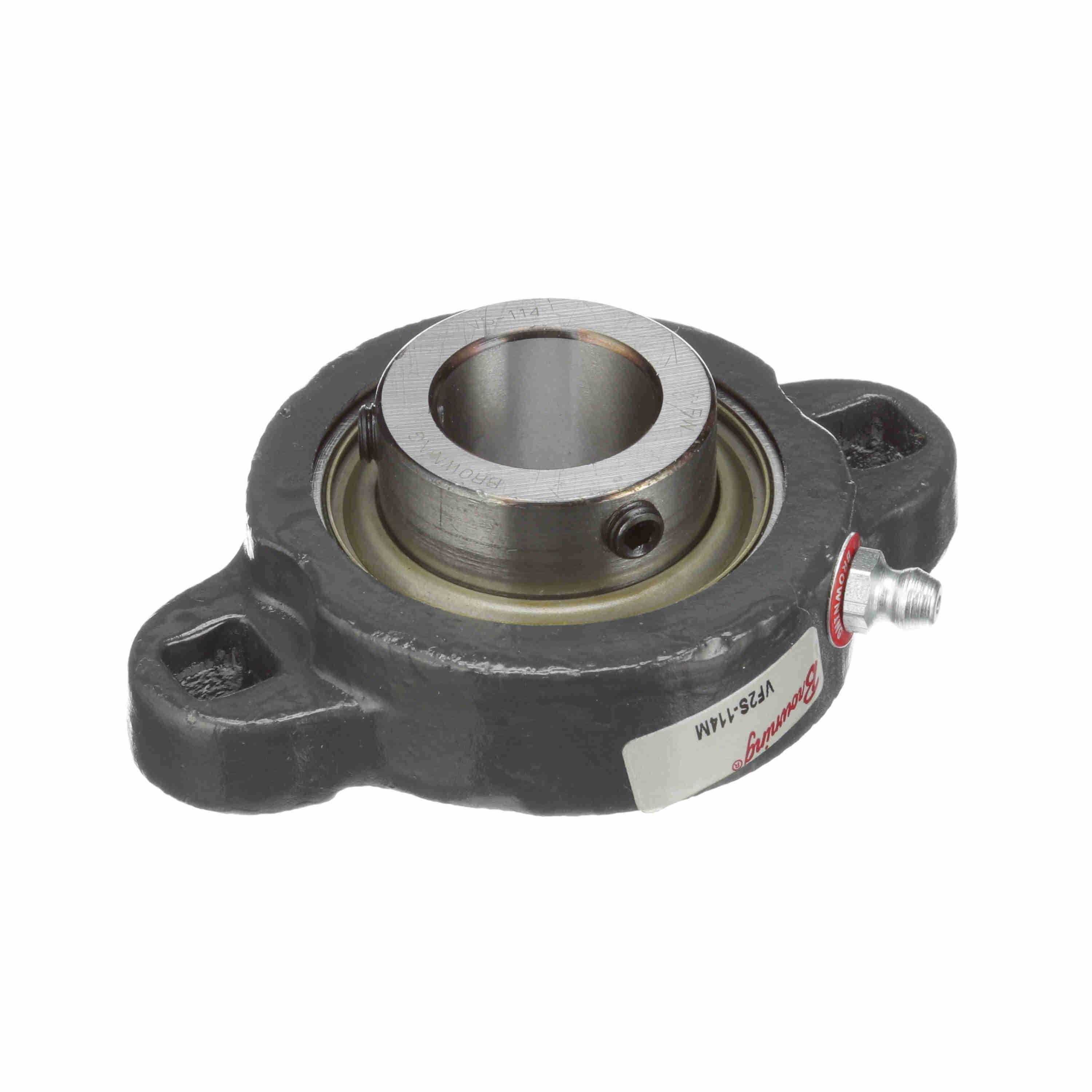

Browning® 767737 VF2S 100 Intermediate Duty Non-Expansion Flange Mount Ball Bearing Unit, 7/8 in Dia Bore, 3 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2-1/2 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF2S114M
  • Alt Part Number: VF2S-114M
  • MPN: 767737
  • UPC: 662289543014
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion, Series: VF2S 100, 7/8 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-1/2 in Overall Length/Diameter, 1-3/16 in Overall Depth, 3-3/4 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 3500 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3 in
Bore Diameter      :      7/8 in
Finish      :      Gray Painted
Flange Mounting Type      :      2-Bolt
Load Capacity      :      2801 lb Dynamic/1651 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      3500 rpm
Overall Depth      :      1-3/16 in
Overall Height      :      3-3/4 in
Overall Length/Diameter      :      2-1/2 in
Seal Material      :      Nitrile Rubber
Series      :      VF2S 100
Temperature Rating      :      -20 to 200 deg F
Type      :      Intermediate Duty Non-Expansion
  • Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • Zone hardened inner race
  • NLGI #2 lithium complex grease
  • 52100 steel insert
  • Powder coat epoxy malleable iron housing
  • Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2S124_Specification_Sheet.pdf
