Browning® 767655 BROVF4E224
  1. pin-int

Browning® 767655 BROVF4E224

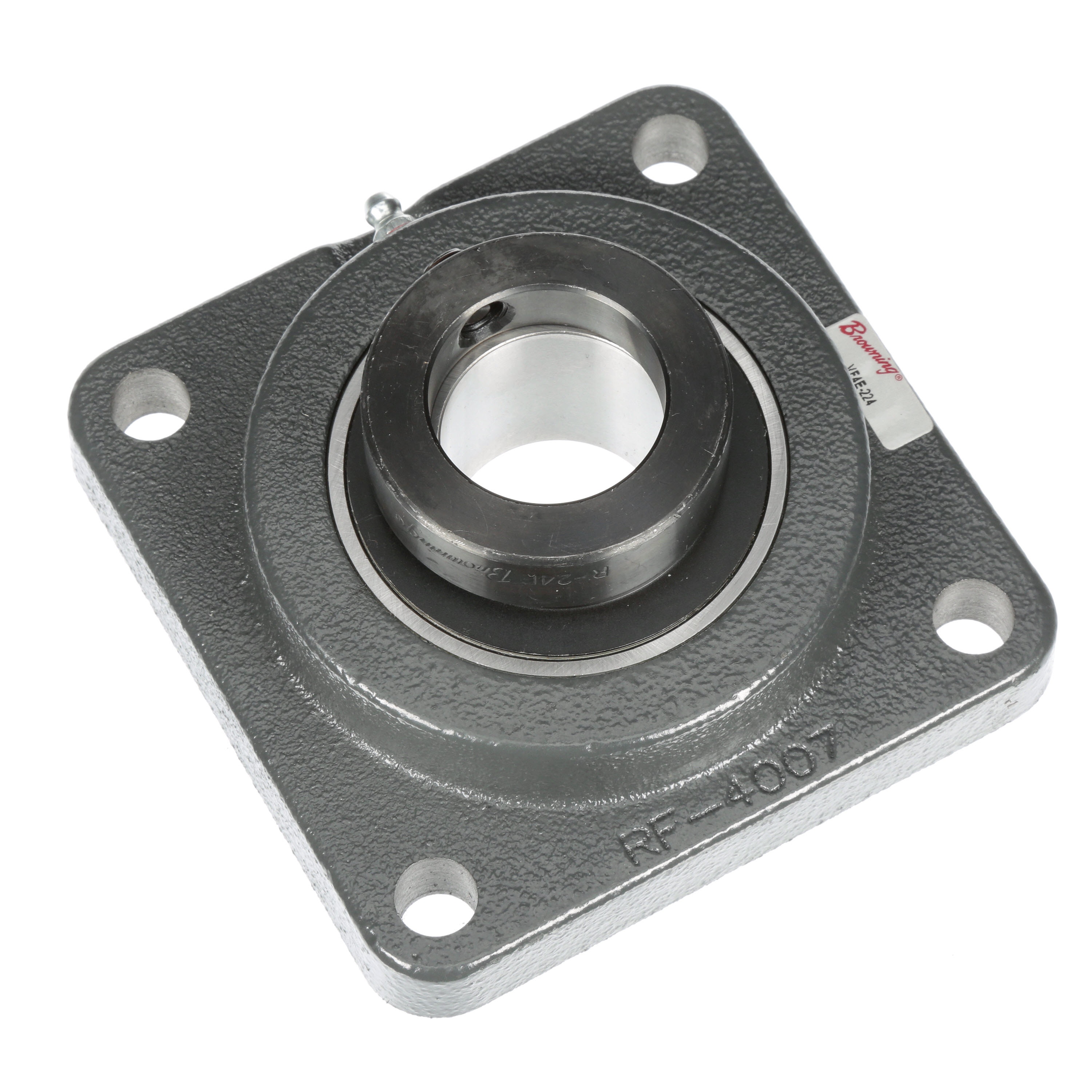

Browning® 767655 VF4E 200 Normal Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-1/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF4E224
  • Alt Part Number: VF4E-224
  • MPN: 767655
  • UPC: 662289522071
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion Round/Straight Bore, Series: VF4E 200, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 2-5/16 in Overall Depth, 5-1/8 in Overall Height, Eccentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 7340 lb Dynamic/4467 lb Static Load, 3500 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      4 in
Bore Diameter      :      1-1/2 in
Finish      :      Gray Painted
Flange Mounting Type      :      4-Bolt
Load Capacity      :      7340 lb Dynamic/4467 lb Static
Locking Device      :      Eccentric Collar
Maximum Speed      :      3500 rpm
Overall Depth      :      2-5/16 in
Overall Height      :      5-1/8 in
Overall Length/Diameter      :      5-1/8 in
Seal Material      :      Nitrile Rubber
Series      :      VF4E 200
Temperature Rating      :      -20 to 200 deg F
Type      :      Normal Duty Non-Expansion Round/Straight Bore
  • Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
  • Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • 52100 steel insert
  • Powder coat epoxy cast iron housing
  • Eccentric locking designed for locking in direction of rotation
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF4E210_Specification_Sheet.pdf
