Browning® 767599 BROVF3S119M
  1. pin-int

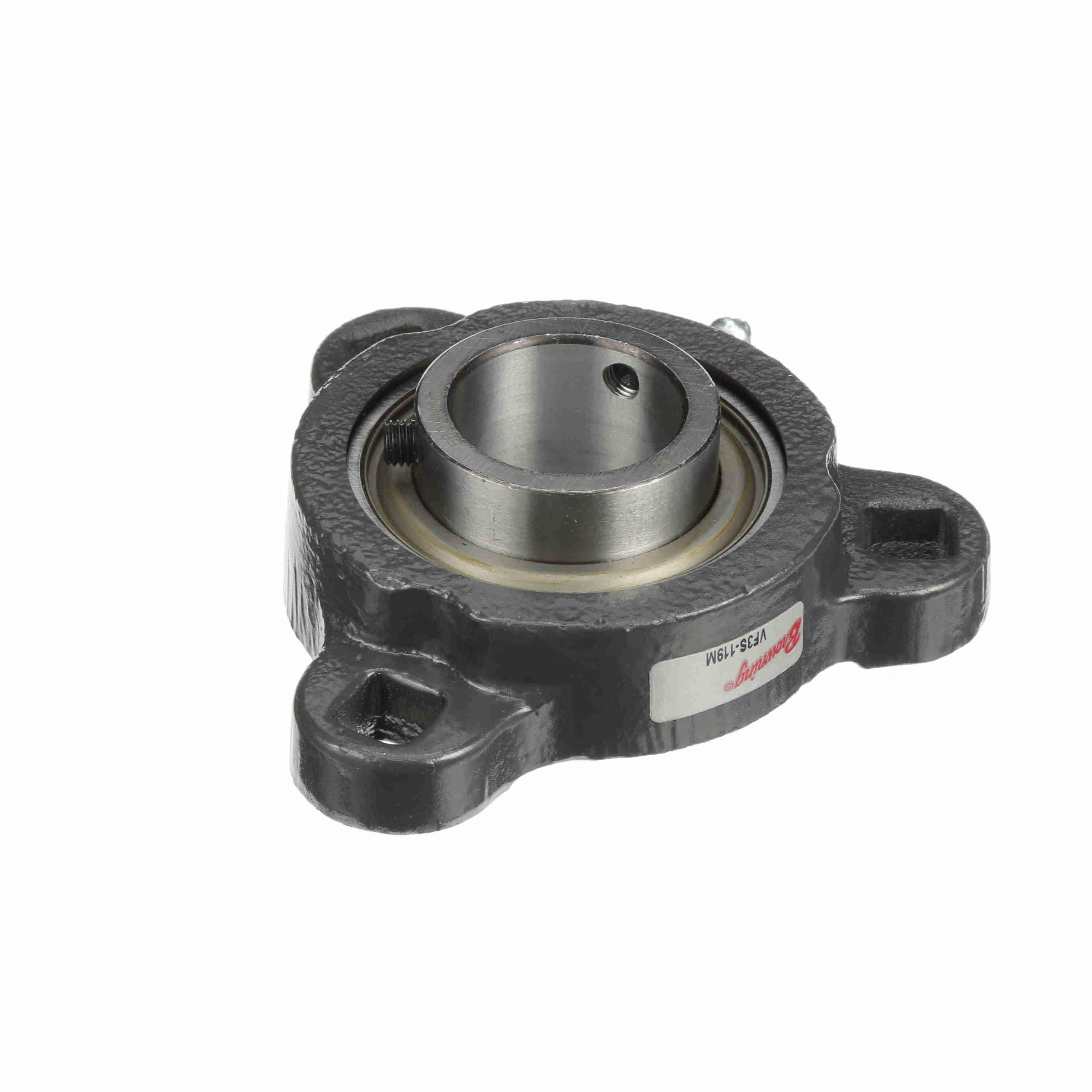

Browning® 767599 BROVF3S119M

Browning® 767599 VF3S 100-M Light Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-3/16 in Dia Bore, 3-9/16 in Dia Bolt Circle, 3-Bolt Flange Mount, 4-7/16 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF3S119M
  • Alt Part Number: VF3S-119M
  • MPN: 767599
  • UPC: 662289543212
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Light Duty Non-Expansion Round/Straight Bore, Series: VF3S 100-M, 1-3/16 in Bore, 3-9/16 in Diameter Bolt Circle, 3-Bolt Flange Mounting, 4-7/16 in Overall Length/Diameter, 1-17/64 in Overall Depth, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 3000 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Circle Diameter      :      3-9/16 in
Bore Diameter      :      1-3/16 in
Finish      :      Gray Painted
Flange Mounting Type      :      3-Bolt
Load Capacity      :      4381 lb Dynamic/2567 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      3000 rpm
Overall Depth      :      1-17/64 in
Overall Length/Diameter      :      4-7/16 in
Seal Material      :      Nitrile Rubber
Series      :      VF3S 100-M
Temperature Rating      :      -20 to 200 deg F
Type      :      Light Duty Non-Expansion Round/Straight Bore
  • Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • 52100 black oxide coating steel insert
  • Powder coat epoxy malleable iron housing
  • Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
