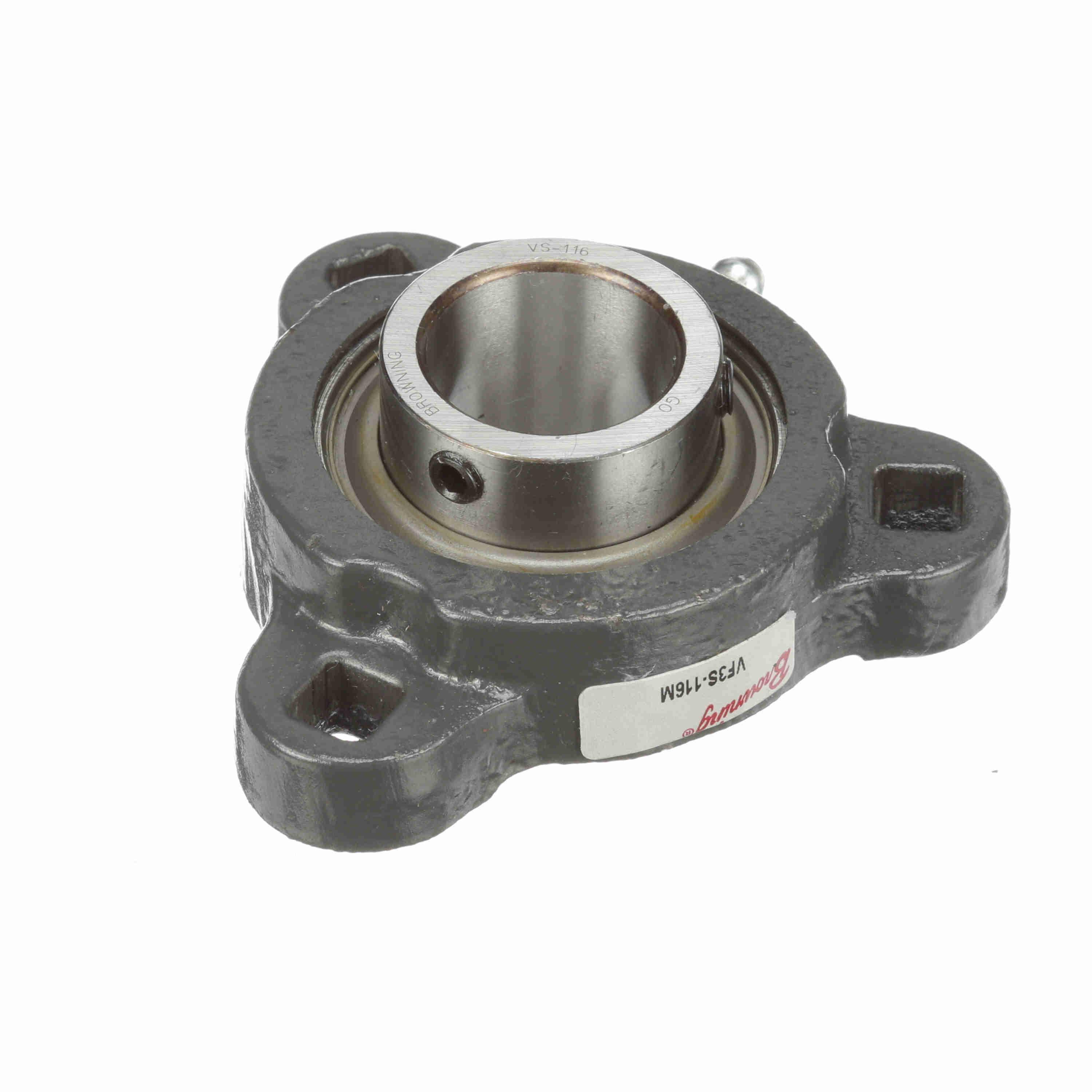

Browning® 767597 BROVF3S116M

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Light Duty Non-Expansion Round/Straight Bore, Series: VF3S 100-M, 1 in Bore, 3 in Diameter Bolt Circle, 3-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-3/16 in Overall Depth, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 3500 rpm Maximum, -20 to 200 deg F, Gray Painted

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Zone hardened inner race
• 52100 black oxide coating steel insert
• Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF3S116M_Specification_Sheet.pdf
