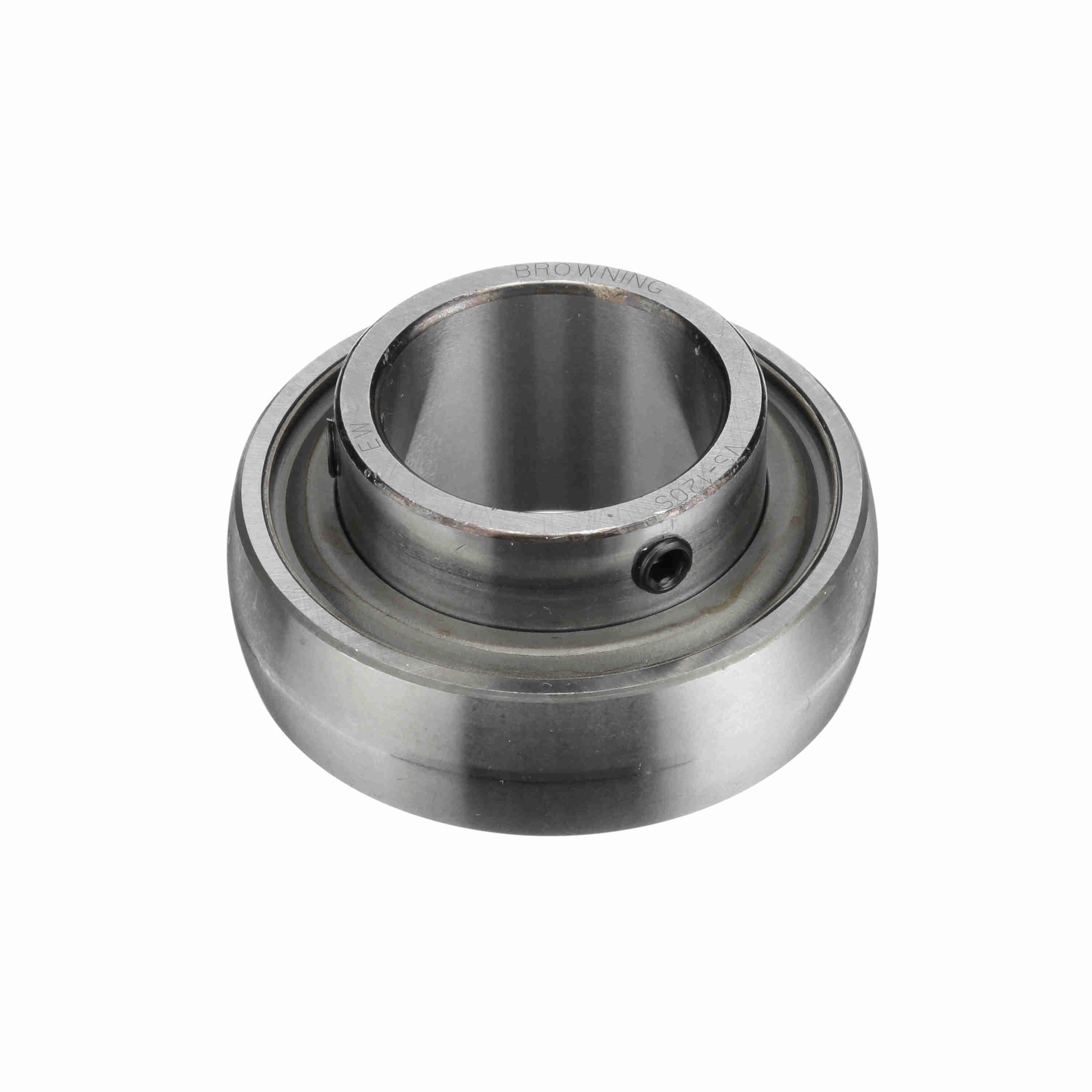

Browning® 767579 BROVS120S

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Insert, Intermediate Duty Straight Bore, Series: VS 100, 1-1/4 in Bore, 2.4409 in OD, 1-5/32 in Width, Double Seal Closure, 4381 lb Dynamic/2567 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Plastic Cage, 3000 rpm Maximum, -20 to 200 deg F, Black Oxide Coated

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Zone hardened inner race
• Lithium complex NLGI #2 grease with an EP additive
• Spherical outer diameter
• Without Snap Ring

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Manual.pdf
