Browning® 767474 BROVF2S223

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

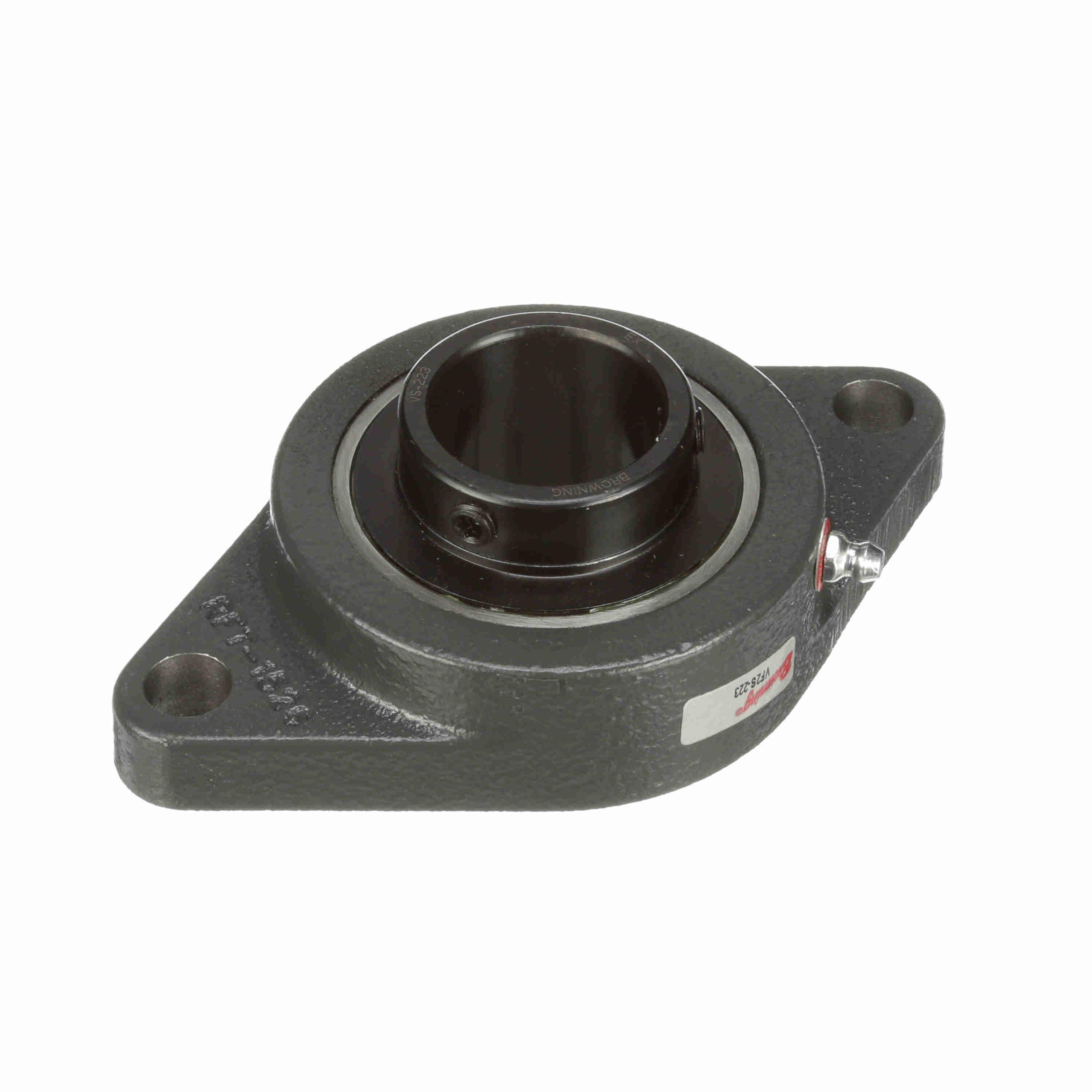

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion, Series: VF2S 200, 1-7/16 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-5/8 in Overall Length/Diameter, 1-3/4 in Overall Depth, 6-1/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 5782 lb Dynamic/3493 lb Static Load, 4000 rpm Maximum, -20 to 200 deg F, Gray Painted

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• NLGI #2 lithium complex grease
• 52100 steel insert
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2S239_Specification_Sheet.pdf
