Browning® 767439 BROVF2S216
  1. pin-int

Browning® 767439 BROVF2S216

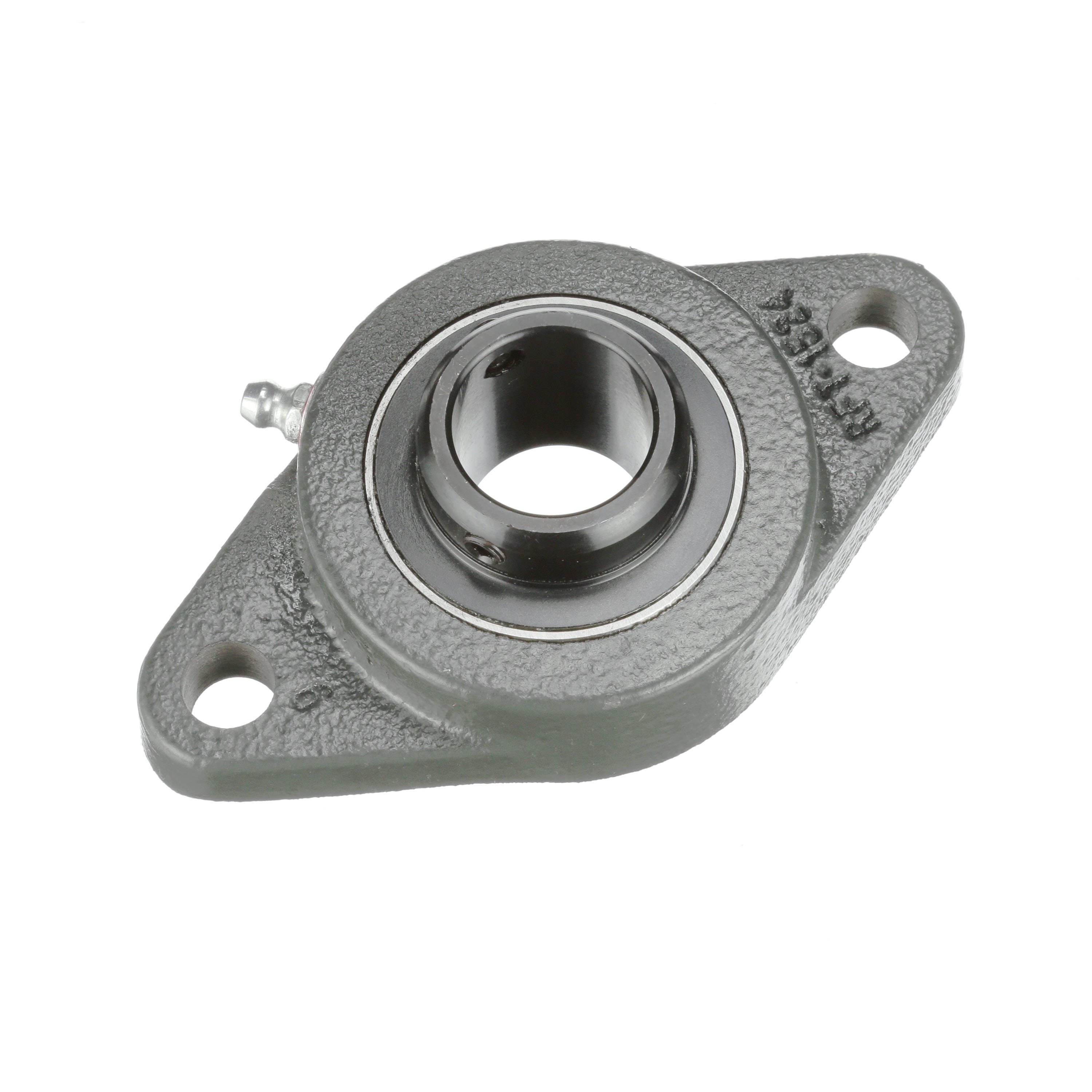

Browning® 767439 VF2S 200 Normal Duty Non-Expansion Flange Mount Ball Bearing Unit, 1 in Dia Bore, 3-57/64 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2-3/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF2S216
  • Alt Part Number: VF2S-216
  • MPN: 767439
  • UPC: 662289521333
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion, Series: VF2S 200, 1 in Bore, 3-57/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-3/4 in Overall Length/Diameter, 1-7/16 in Overall Depth, 4-7/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 5500 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3-57/64 in
Bore Diameter      :      1 in
Finish      :      Gray Painted
Flange Mounting Type      :      2-Bolt
Load Capacity      :      2801 lb Dynamic/1651 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      5500 rpm
Overall Depth      :      1-7/16 in
Overall Height      :      4-7/8 in
Overall Length/Diameter      :      2-3/4 in
Seal Material      :      Nitrile Rubber
Series      :      VF2S 200
Temperature Rating      :      -20 to 200 deg F
Type      :      Normal Duty Non-Expansion
  • Powder coat epoxy cast iron housing
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal and flinger
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2S239_Specification_Sheet.pdf
