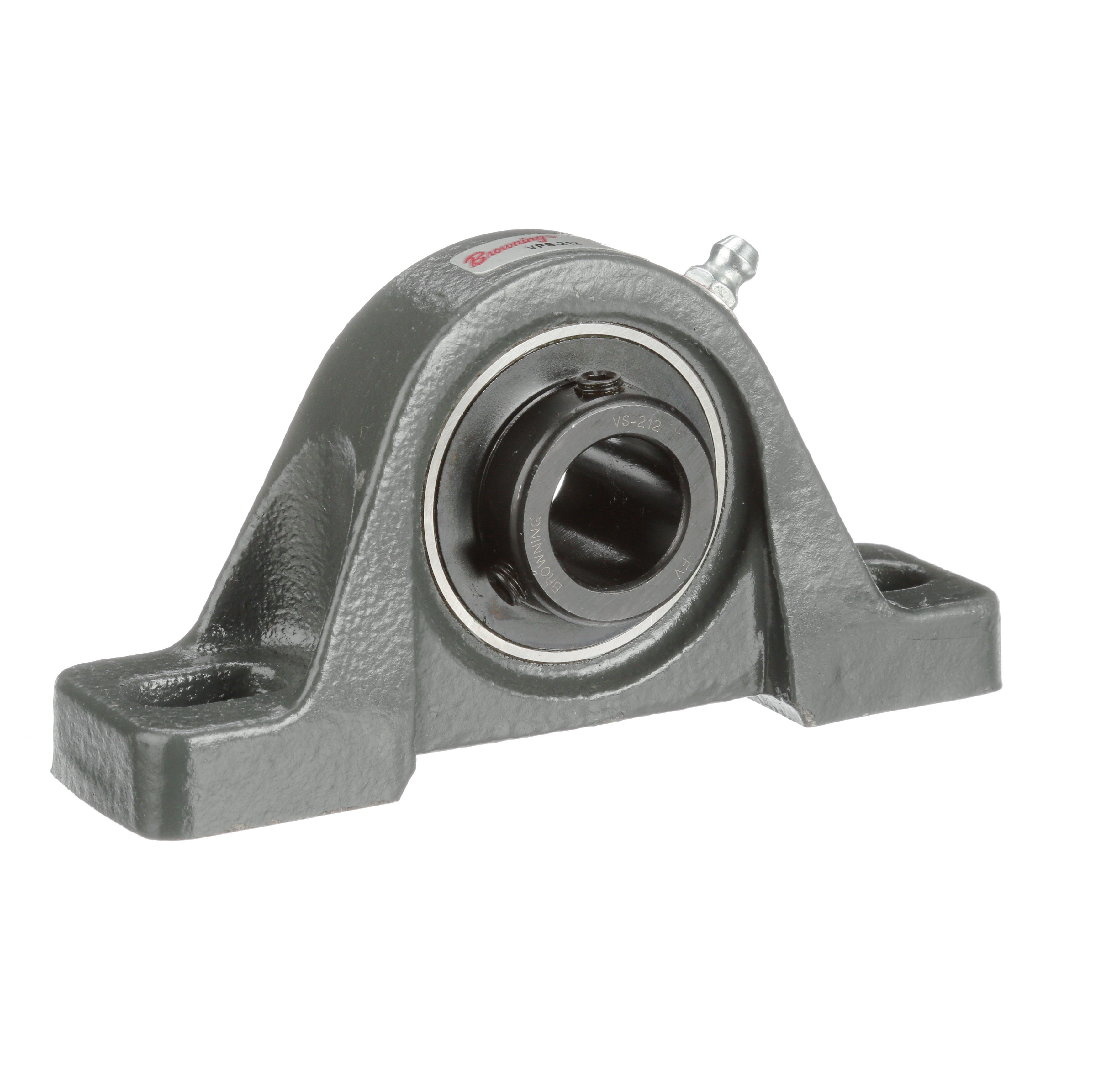

Browning® 767434 BROVPS212

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

Browning® Pillow Block Ball Bearing, Normal Duty, Series: VPS 200, 3/4 in Bore, 3-3/8 to 4-3/16 in Bolt Center-to-Center Length, 1-5/16 in Base to Bore Centerline, 5 in Overall Length, 2-17/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-11/32 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 2611 lb Dynamic/1444 lb Static Load, -20 to 200 deg F, 6500 rpm Maximum, Cast Iron, Gray Painted

• Powder coat epoxy cast iron housing
• Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_765077_Specification_Sheet.pdf
