Browning® 767433 BROVF4S212
  1. pin-int

Browning® 767433 BROVF4S212

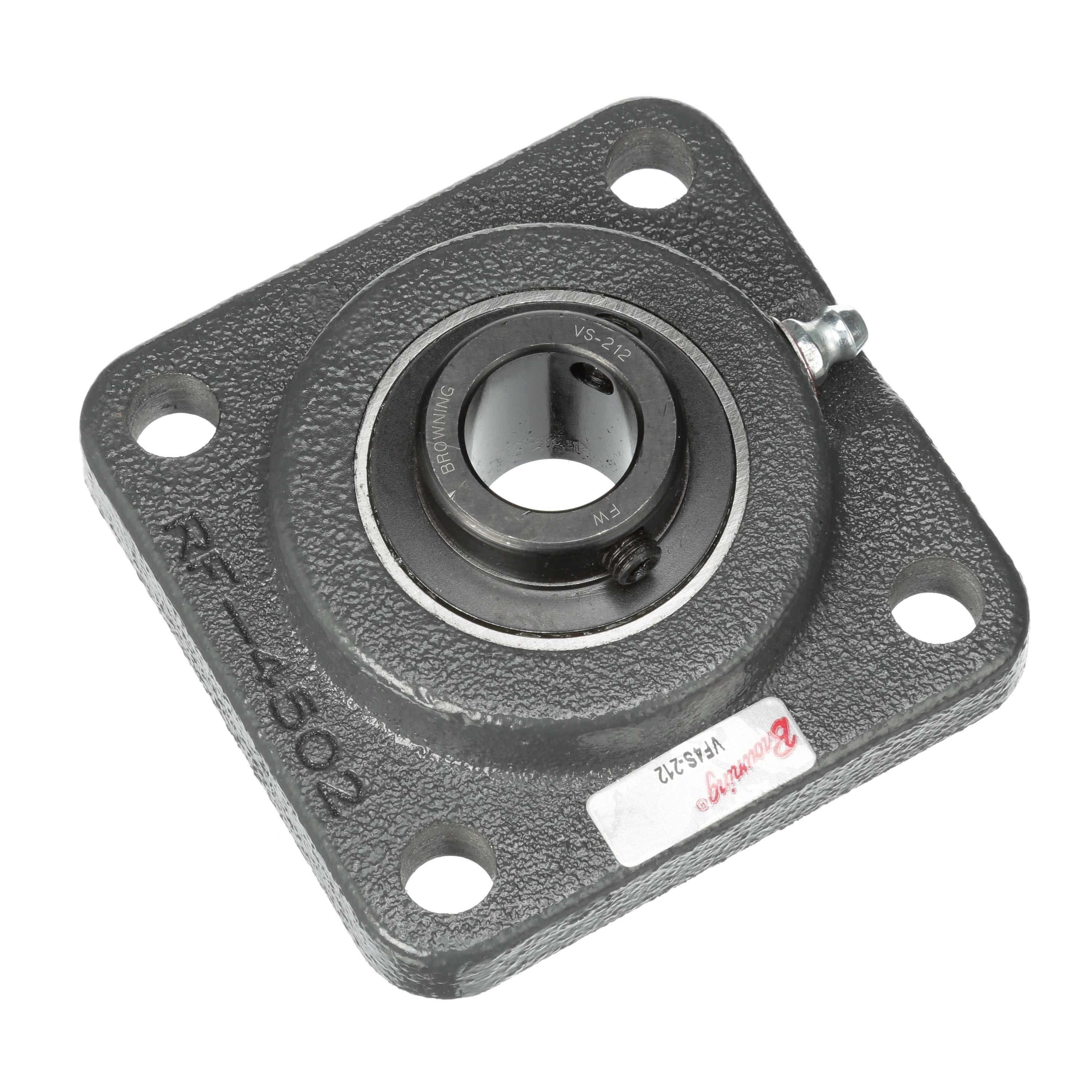

Browning® 767433 VF4S 200 Normal Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 3/4 in Dia Bore, 2-1/2 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 3-3/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF4S212
  • Alt Part Number: VF4S-212
  • MPN: 767433
  • UPC: 662289522576
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion Round/Straight Bore, Series: VF4S 200, 3/4 in Bore, 2-1/2 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/8 in Overall Length/Diameter, 1-9/32 in Overall Depth, 3-3/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2611 lb Dynamic/1444 lb Static Load, 6500 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      2-1/2 in
Bore Diameter      :      3/4 in
Finish      :      Gray Painted
Flange Mounting Type      :      4-Bolt
Load Capacity      :      2611 lb Dynamic/1444 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      6500 rpm
Overall Depth      :      1-9/32 in
Overall Height      :      3-3/8 in
Overall Length/Diameter      :      3-3/8 in
Seal Material      :      Nitrile Rubber
Series      :      VF4S 200
Temperature Rating      :      -20 to 200 deg F
Type      :      Normal Duty Non-Expansion Round/Straight Bore
  • Powder coat epoxy cast iron housing
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal and flinger
