Browning® 767432 BROVF2S212
  1. pin-int

Browning® 767432 BROVF2S212

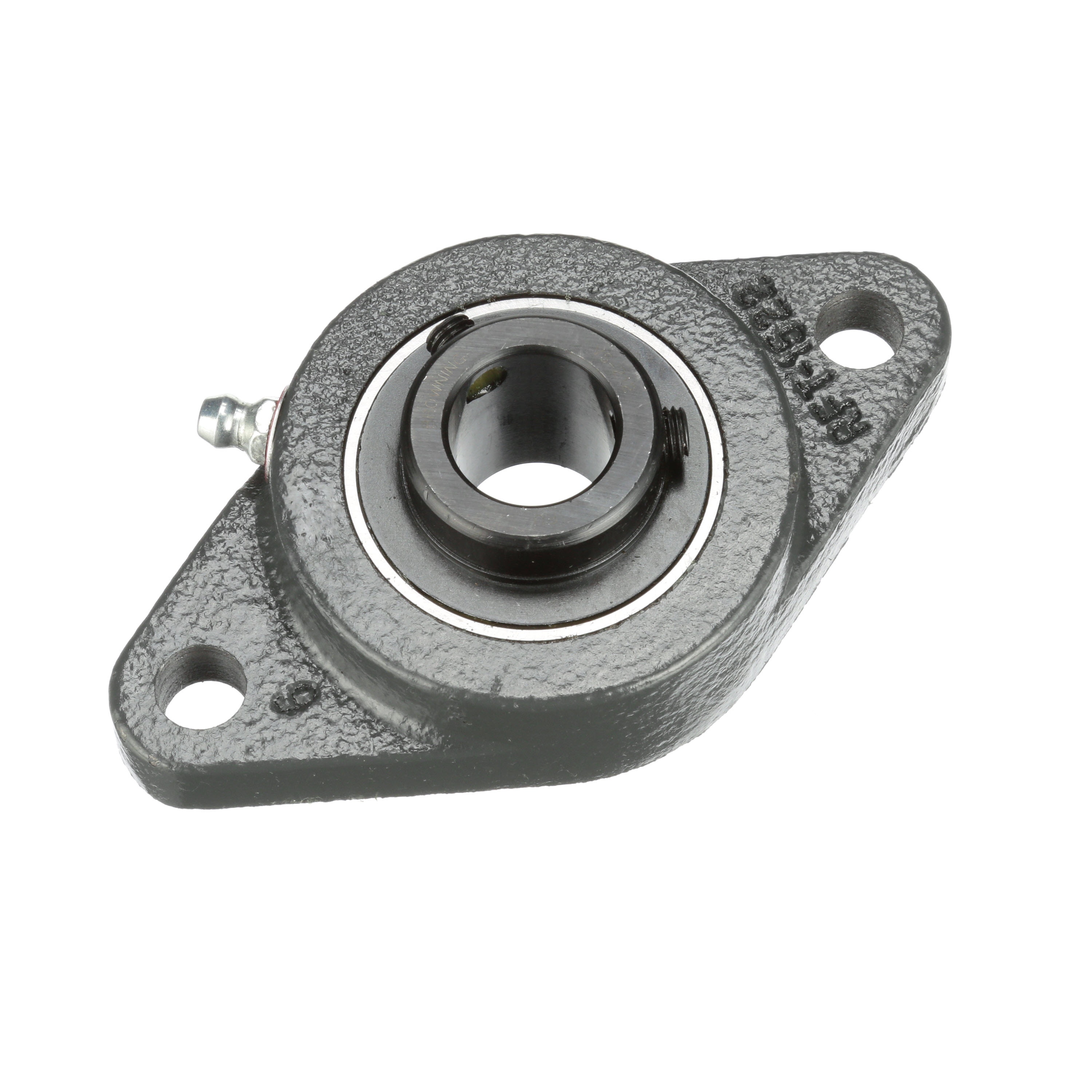

Browning® 767432 VF2S 200 Normal Duty Non-Expansion Flange Mount Ball Bearing Unit, 3/4 in Dia Bore, 3-17/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2-1/2 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF2S212
  • Alt Part Number: VF2S-212
  • MPN: 767432
  • UPC: 662289521272
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion, Series: VF2S 200, 3/4 in Bore, 3-17/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-1/2 in Overall Length/Diameter, 1-9/32 in Overall Depth, 4-13/32 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2611 lb Dynamic/1444 lb Static Load, 6500 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3-17/32 in
Bore Diameter      :      3/4 in
Finish      :      Gray Painted
Flange Mounting Type      :      2-Bolt
Load Capacity      :      2611 lb Dynamic/1444 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      6500 rpm
Overall Depth      :      1-9/32 in
Overall Height      :      4-13/32 in
Overall Length/Diameter      :      2-1/2 in
Seal Material      :      Nitrile Rubber
Series      :      VF2S 200
Temperature Rating      :      -20 to 200 deg F
Type      :      Normal Duty Non-Expansion
  • Powder coat epoxy cast iron housing
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal and flinger
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2S239_Specification_Sheet.pdf
