Browning® 767318 BROVE124
  1. pin-int

Browning® 767318 BROVE124

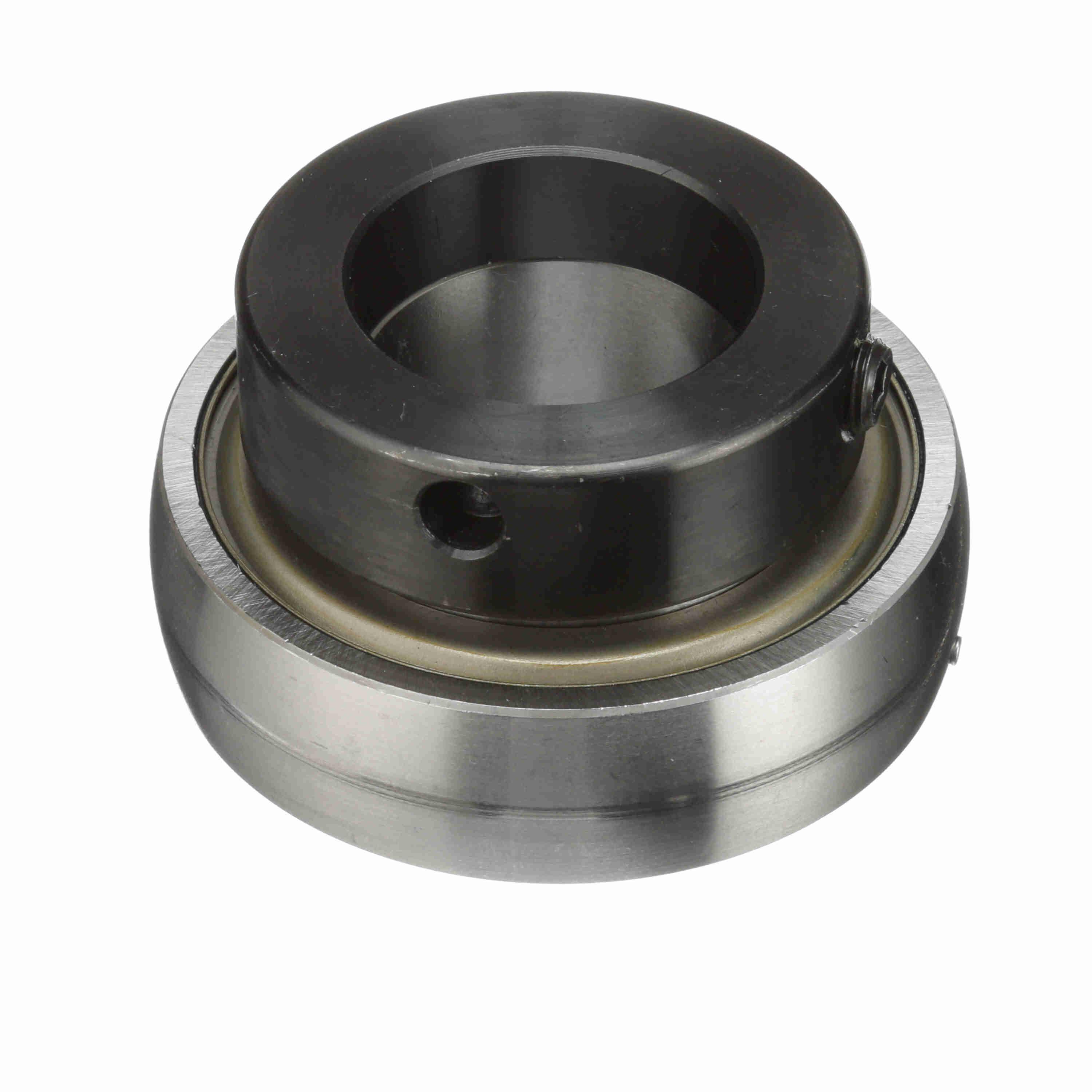

Browning® 767318 VE Series Light Duty Straight Bore Ball Bearing Insert, 1-1/2 in Dia Bore, 3.15 in OD, 1.766 in W, 7340 lb Dynamic/4467 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVE124
  • Alt Part Number: VE-124
  • MPN: 767318
  • UPC: 662289310777
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Insert, Light Duty Straight Bore, Series: VE Series, 1-1/2 in Bore, 3.15 in OD, 1.766 in Width, Double Seal Closure, 7340 lb Dynamic/4467 lb Static Load, Steel Bearing, Plastic Cage, 2500 rpm Maximum, -20 to 200 deg F, Black Oxide Coated

Bearing Material      :      Steel
Bore Diameter      :      1-1/2 in
Cage Material      :      Plastic
Closure Type      :      Double Seal
Finish      :      Black Oxide Coated
Load Capacity      :      7340 lb Dynamic/4467 lb Static
Maximum Speed      :      2500 rpm
Outside Diameter      :      3.15 in
Series      :      VE Series
Temperature Rating      :      -20 to 200 deg F
Type      :      Light Duty Straight Bore
Width      :      1.766 in
  • Eccentric locking device
  • Contact seal
  • Thru hardened inner race heat treat method
  • Lithium complex NLGI #2 grease with an EP additive
  • Spherical outer diameter
